0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304
0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304
0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304
0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304
0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304
0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304
0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304
0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304
Specifications
MOQ :
1
Price :
US $4,000-5,000 / s
Place of Origin :
China
Brand Name :
DY
Delivery Time :
7-15 work days
Model NO. :
DZSF1030
Transmission Structure :
Vibrating Screen
Usage :
Mine Shaker, Powder/ Particle Classify/ Screening
Works :
Linear Vibration Screening
Shaft Number :
Double
Running Track :
Linear Vibrating Screen
Supporting Device :
Plate Spring
Warranty :
1.5 years
Customized :
Customized
Condition :
New
After-sales Service :
Online Video
Product Name :
Sand Linear Vibrator Sieve
Keyword :
Linear Screen
Material :
Stainless Steel 304
Motor :
Two Vibration Motor
Layer(S) :
1-3 Layers
Mesh Size :
0-200 Mesh
Cleaning System :
Bouncing Ball Cleaning System
Installation :
Engineer Guide
Transport Package :
Packed in Standard Export Wooden Case Packing.
Specification :
1000x2000mm
Trademark :
DY
Origin :
China
HS Code :
847410000
Production Capacity :
50 Set/Sets Per Month Timely Delivery
Description

Linear Vibrating Screen using vibration motors as vibration source moving materials in straight line for screening operation

Product Description

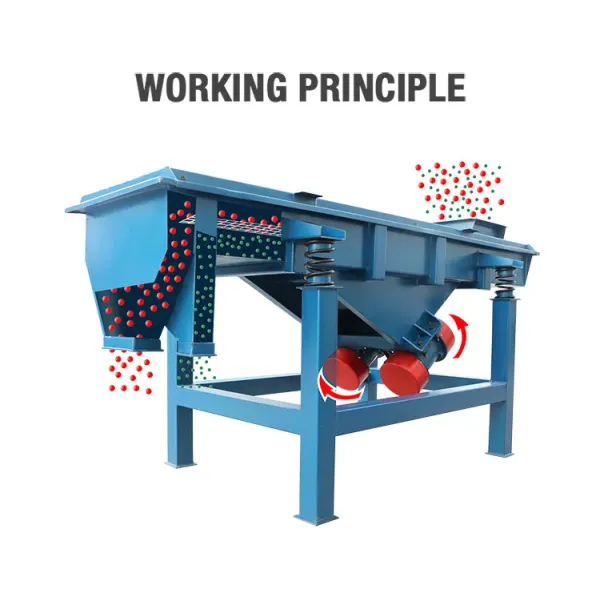

The linear vibrating screen uses vibration motors as its vibration source. Driven by the exciting force, materials on the screen surface move forward in a straight line with parabolic motion, thus completing the screening process.
This type of vibrating screen is mainly used for screening small particles and fine powders. For optimal screening performance, the maximum number of screen layers recommended is five.


0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304

Product Parameters

Model

Screen surface: W*L (mm)

Power(KW)

Mesh size(mm)

Screen surface angle (°)

Amplitude(mm)

Layer

DZSF-520

500*2000

2*(0.4-0.75)

2-200

0°-7°

4-8

1-5

DZSF-525

500*2500

DZSF-1020

1000*2000

DZSF-1025

1000*2500

2*(0.4-1.1)

DZSF-1030

1000*3000

2*(1.1-1.5)

DZSF-1040

1000*4000

DZSF-1235

1200*3500

2*(1.1-2.2)

DZSF-1250

1200*5000

DZSF-1535

1500*3500

DZSF-1560

1500*6000

2*(2.2-3.7)

DZSF-1845

1800*4500

DZSF-2050

2000*5000

DZSF-2260

2200*6000

Main Feature

1. With exquisite and durable design, simple operation.
2. Easy to clean up and change the mesh.
3. Impurities and coarse materials are able to be expelled automatically, realizing automated operation.
4. Fully stainless steel construction, ensuring material purity.
5. Less malfunctions, easy maintenance.
6. Light weight and base equipped with castor wheels, easy to move and place.
7. The mesh size is able to be customized apart from standard configuration.

0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304

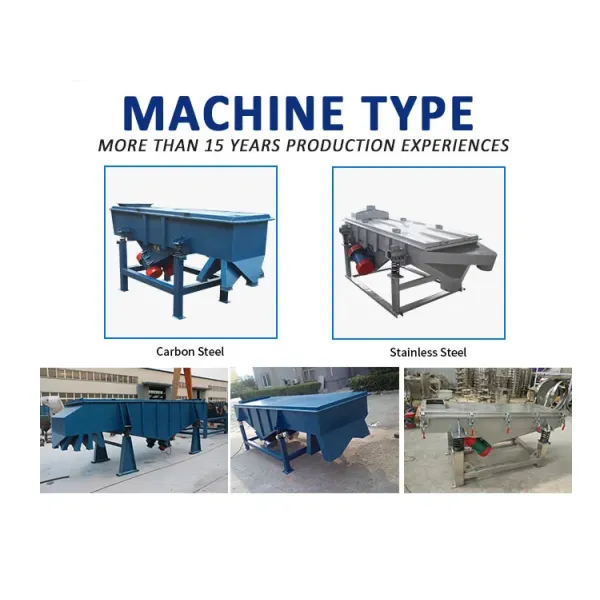

Machine Type

0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304

Packaging & Shipping

Packing Details : Free wooden case according to product size, 1 set/case.

Delivery Details : Shipped in 7 days after payment.
0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304

Application Industry

0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304
Company Profile
With more than 10 years of development and technology precipitation, Our company, Xinxiang Dayong Vibration Equipment Co.,Ltd, has become one professional international manufacturer for sieving machines, vibro sifter machines, ultrasonic sieving clearing systems, separators, vibrating screen machines, conveying equipment, filtration equipment, crushing equipment and so on.

As one of the largest OEM factories in China, each year we supply around 5000 sets machines to serve more than 150 distributors, manufacturers and traders, providing all kinds of reliable customized equipment to help our clients build their brands.

0-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 3040-200 Mesh Linear Vibrating Screen Sieve Stainless Steel 304

FAQ

Q:What factors I need to get a quotation?
A: Material bulk density, mesh size,deck numbers & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.

Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.

Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of Dayong for most of our customers at home or abroad.Skilled workers and strict quality control system can ensure every machine with best working performance.

Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 18 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
