300mm SS Screw Conveyor Customized Incline Conveyor With Hopper
300mm SS Screw Conveyor Customized Incline Conveyor With Hopper
Specifications
Certification :
CE, ISO9001:2015
MOQ :
1
Price :
US $1,500-2,800 / s
Place of Origin :
China
Brand Name :
DY
Delivery Time :
7-14 work days
Model NO. :
LS-160
Material :
Stainless Steel
Material Feature :
Heat Resistant
Energy Saving :
Energy Saving
Warranty :
1 Year
Color :
Multi Color
Condition :
New
After-sales Service :
Online Video
Length :
Customized
Installation :
Engineer Guide
Operation :
Automatic Continuous Operation
Working Angle :
0-60 Degree
Voltage :
220V/380/as Your Request
Transport Package :
Standard Export Wooded Case
Specification :
screw diameter 160mm
Trademark :
DY
Origin :
China
HS Code :
8428399000
Production Capacity :
90 Set/Sets Per Month
Description


Product Description

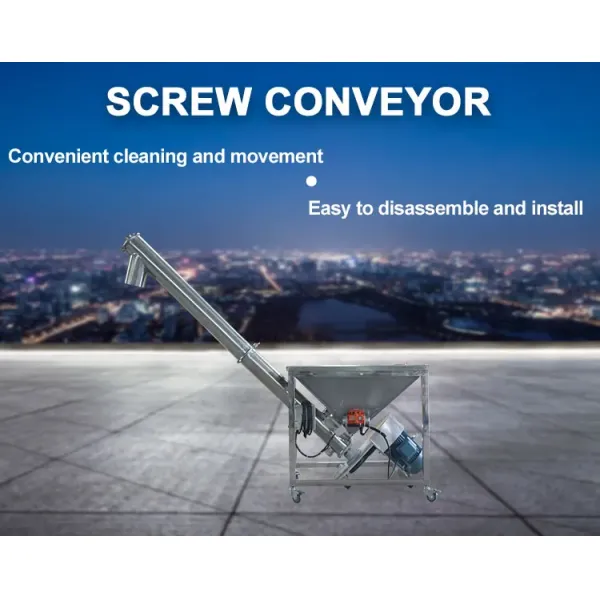

PRODUCT INTRODUCTION

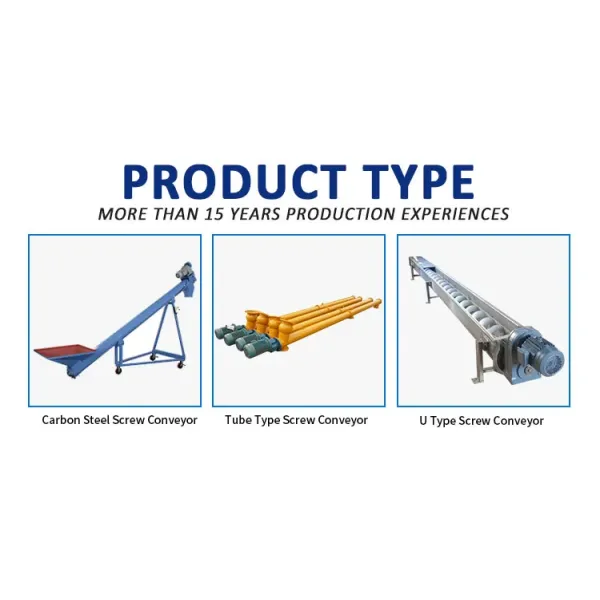

This screw conveyor is a customizable machine. We can design and manufacture a screw conveyor according to customers' specific requirements. The screw conveyor also be called as other name in different country, for example, sometimes will also named it as pipe screw conveyor; auger conveyor; trough shaped screw conveyor; screw feeder; U-type screw conveyor and so on.

300mm SS Screw Conveyor Customized Incline Conveyor With Hopper
Product Parameters
Model Diameter
(mm)		 The distance of blades(mm) Speed
(rpm)		 Capacity
(t/m³)		 Speed
(rpm)		 Capacity
(t/m³)		 Speed
(rpm)		 Capacity
(t/m³)		 Speed
(rpm)		 Capacity
(t/m³)

D S n φ=0.33 n φ=0.33 n φ=0.33 n φ=0.33
LS100 100 100 140 2.2 112 1.7 90 1.4 71 1.1
LS125 125 125 125 3.8 100 3.0 80 2.4 63 1.9
LS160 160 160 112 7.1 90 5.7 71 4.5 56 3.6
LS200 200 200 100 12.4 80 9.9 63 7.8 50 6.2
LS250 250 250 90 21.8 71 17.2 56 13.6 45 10.9
LS315 315 315 80 38.8 63 30.5 50 24.2 40 13.4
Main Features
  • Small size and rapid rotary speed, which ensures rapid and average conveying.
  • Good sealing quality and rigidity. The outer casing is made of seamless steel pipes, and the end caps are connected with flanges.
  • Modular design and excellent fabricating.
  • Inlets and outlets can be configured as required.
  • Dust-tight housing, high degree of sanitation.
300mm SS Screw Conveyor Customized Incline Conveyor With Hopper

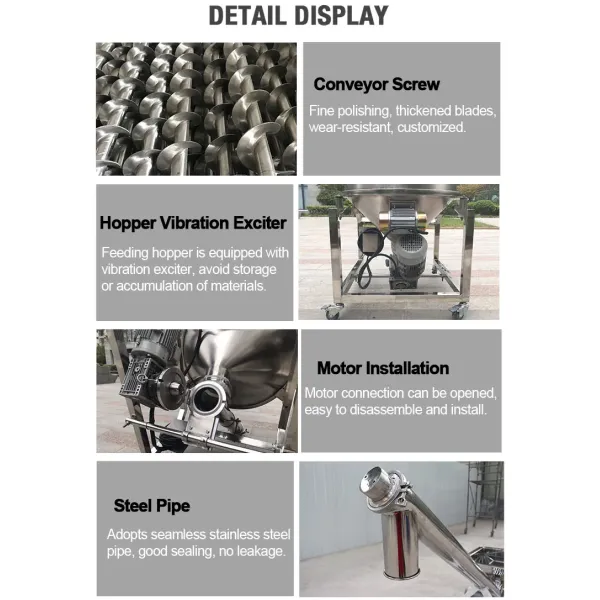

Detailed Photos
300mm SS Screw Conveyor Customized Incline Conveyor With Hopper

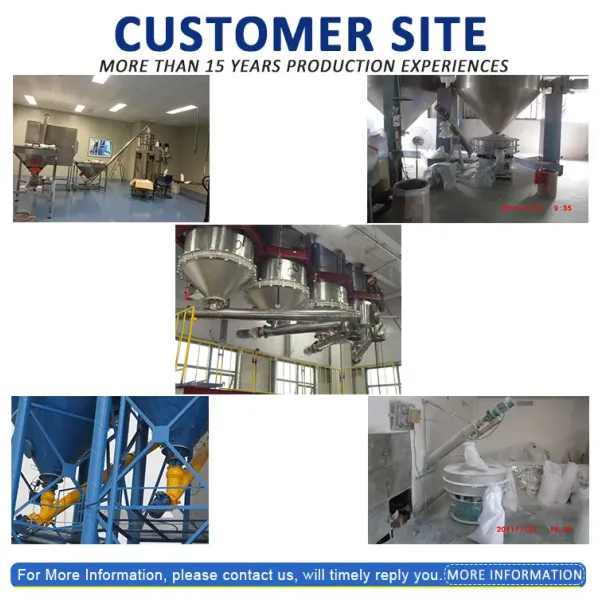

Customer Case
300mm SS Screw Conveyor Customized Incline Conveyor With Hopper 300mm SS Screw Conveyor Customized Incline Conveyor With Hopper
Application Industry

Loose materials such as powder, granular and small piece material , which includes: clay powder, pulverized coal, cement, sand, grain, small piece of coal , cobble, and cast iron filings, etc. While it is not applicable for materials with high viscosity and easy to be curdled. Widely applied:It is widely used for the loose cement transportation from cement warehouse to mixer or from cement warehouse to compounding machine in concrete mixing plant

300mm SS Screw Conveyor Customized Incline Conveyor With Hopper

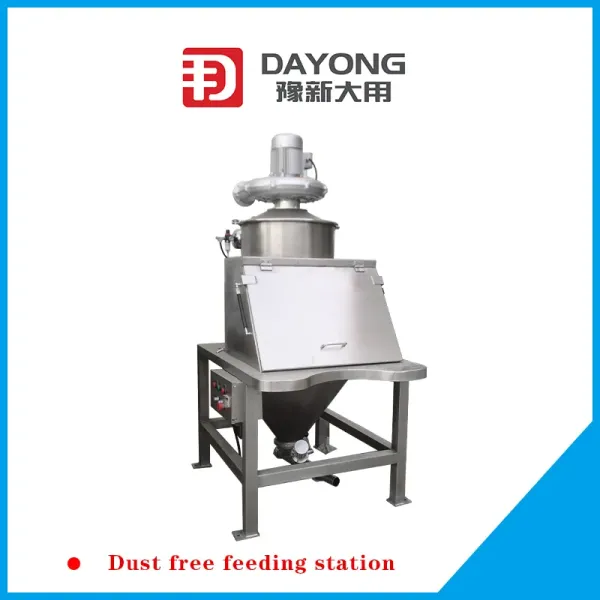

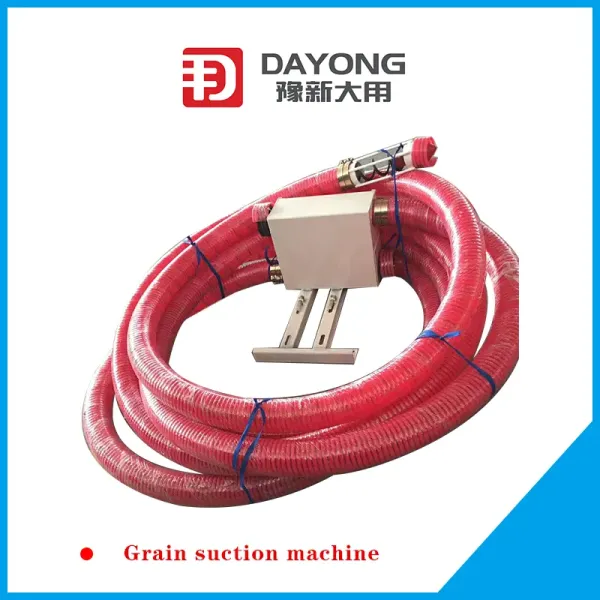

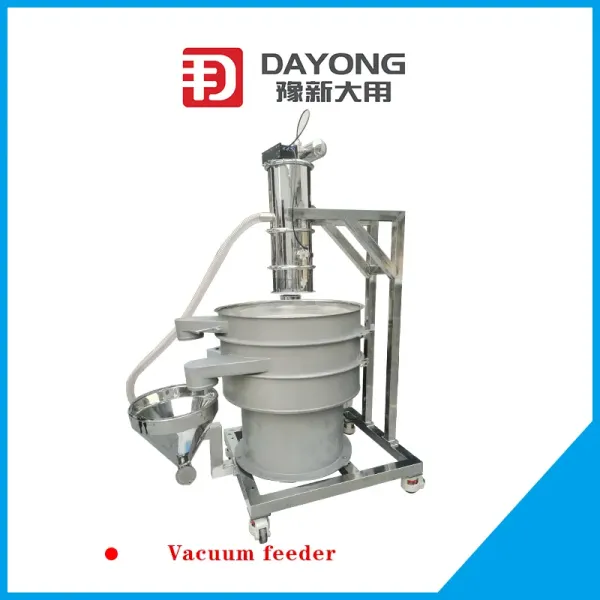

Related Products
300mm SS Screw Conveyor Customized Incline Conveyor With Hopper
300mm SS Screw Conveyor Customized Incline Conveyor With Hopper
300mm SS Screw Conveyor Customized Incline Conveyor With Hopper
Company Profile
300mm SS Screw Conveyor Customized Incline Conveyor With Hopper 300mm SS Screw Conveyor Customized Incline Conveyor With Hopper
FAQ
1).MOQ require?
Our moq is 1 set.(If you need the spare parts,it is also ok).
2).Payment method?
Usually,we accept T/T,Western Union and others, we can't accept D/P,D/A
3).How to guarantee the quality?
If any machine quality problems, we accept return cargos.
Our warrantity is 18 months, promise your 0 risks purchasing
