Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor
Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor
Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor
Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor
Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor
Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor
Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor
Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor
Specifications
Brand Name :
DY
Model Number :
LSY
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD1300-2000
Payment Terms :
MoneyGram,T/T,Western Union,D/P,L/C,D/A
Supply Ability :
customize
Delivery Time :
7-15 work days
Packaging Details :
Wooden Package
Material :
SUS304
Applicable Industries :
Food/Chemical/Medicine/Spice
Voltage :
380v,50Hz/Customize
Warranty :
1.5 Years
Name :
Screw Conveyor
Bucket capacity :
15-52L
OEM/ODM :
Available
Description

Hot Sales Industrial Stainless Steel Vertical Screw Conveyor Feeder Silica Sand for Powder and Granule

Product Description

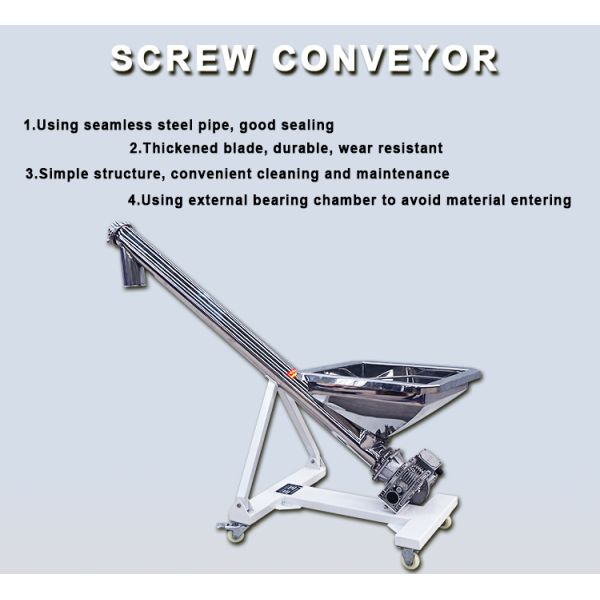

Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor

PRODUCT INTRODUCTION

This screw conveyor is a customizable machine. We can design and manufacture a screw conveyor according to customers' specific requirements. The screw conveyor also be called as other name in different country, for example, sometimes will also named it as pipe screw conveyor; auger conveyor; trough shaped screw conveyor; screw feeder; U-type screw conveyor and so on.
Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor

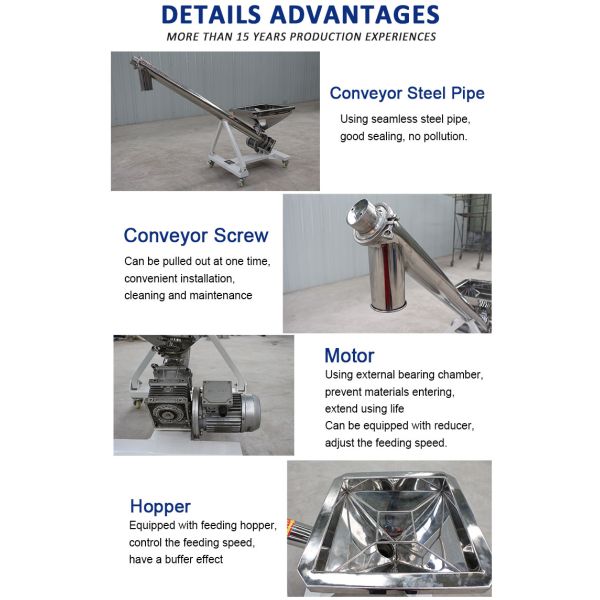

Main Features

1.Small size and rapid rotary speed, which ensures rapid and average conveying. 2.Good sealing quality and rigidity. The outer casing is made of seamless steel pipes, and the end caps are connected with flanges. 3.Modular design and excellent fabricating. 4.Inlets and outlets can be configured as required. 5.Dust-tight housing, high degree of sanitation.
Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor
Using Scope
Loose materials such as powder, granular and small piece material , which includes: clay powder, pulverized coal, cement, sand, grain, small piece of coal , cobble, and cast iron filings, etc. While it is not applicable for materials with high viscosity and easy to be curdled. Widely applied:It is widely used for the loose cement transportation from cement warehouse to mixer or from cement warehouse to compounding machine in concrete mixing plant
Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor
Technical Parameter
Model
LSY 100
LSY 120
LSY 140
LSY 160
LSY 200
LSY 250
LSY 300
LSY 400
Diameter of screw (mm)
90
115
135
163
185
237
285
362
Speed of main axis (r/min)
300
300
300
308
260
200
170
170
Diameter of main case(mm)
108
133
159
194
219
273
325
402
Max capacity (t/h)
7
10
15
25
40
60
90
120
Max conveying length (m)
8
10
12
15
18
25
25
25
Working angle (degree)
0~60
0~60
0~60
0~60
0~60
0~60
0~60
0~60

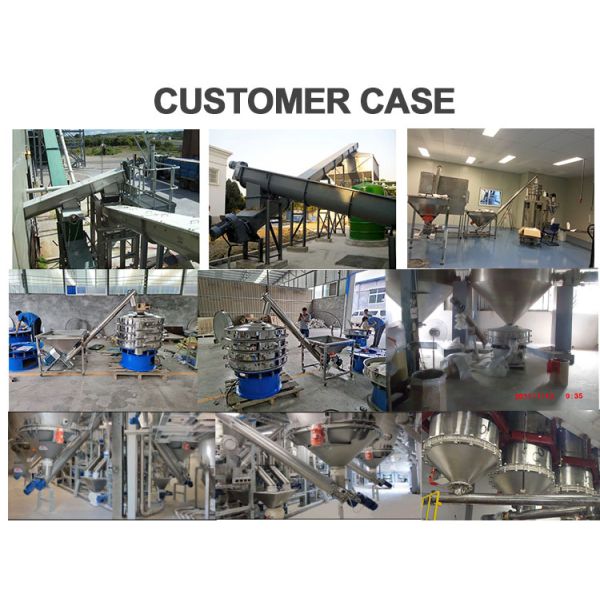

Customer Case
Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor
Company Profile
Packing & Delivery
Our service
we are manufacturer of crusher, sieving and conveying machine.
Most of our products are customized as customers' request, pls advice your material, capacity, bulk density.
we'd like to offer you best suitable machine.
