Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator
Specifications
MOQ :
1
Price :
US $3,000-4,000 / P
Place of Origin :
China
Brand Name :
DY
Delivery Time :
7-15 work days
Model NO. :
DYC-1200-1S
Transmission Structure :
Vibrating Screen
Usage :
Separation Screening
Works :
Rotary Vane Shaker
Object :
Food Processing
Shaft Number :
Single
Running Track :
Circular Vibrating Screen
Supporting Device :
Steel Spring
Warranty :
18months
Customized :
Customized
Condition :
New
After-sales Service :
Online Video
Name :
Round Shape Centrifugal Vibration Screener
Keyword :
Vibration Screener
Material :
Stainless Steel 304/316/ MID-Steel
Motor :
Vertical Vibration Motor
Layer(S) :
1-3 Layers
Mesh Size :
0-200 Mesh
Cleaning System :
Bouncing Ball Cleaning System
Installation :
Engineer Guide
Operation :
Automatic Continuous Operation
Transport Package :
Standard Export Wooded Case
Specification :
1200mm diameter
Trademark :
DY
Origin :
China
HS Code :
847410000
Production Capacity :
50 Set/Sets Per Month
Description

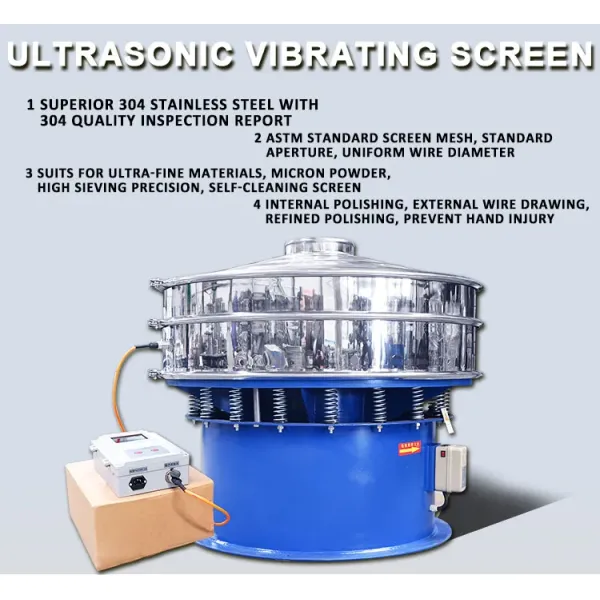

Round Shape Centrifugal Vibration Screener/Vibrating Sieve Screen with Ultrasonic System

Product Description

New Style Fine Sieving Ultrasonic Vibrating Screen Separator vibro sieve is Ultrasonic round separator is a new vibrating sieve machine combining ultrasonic generator and round separator, in addition to three-dimensional round separator itself, Ultrasonic round separator overlaps ultrasonic vibrating on the screen surface, which effectively solves the materials difficult to screen, such as: various high electrostatic, superfine, strong adsorption, easily aggregated, light relative density materials. Ultrasonic round separator not only avoids to block the screening mesh but also increases the screening capacity and accuracy, achieving the purpose of fast screening and cleaning.
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator

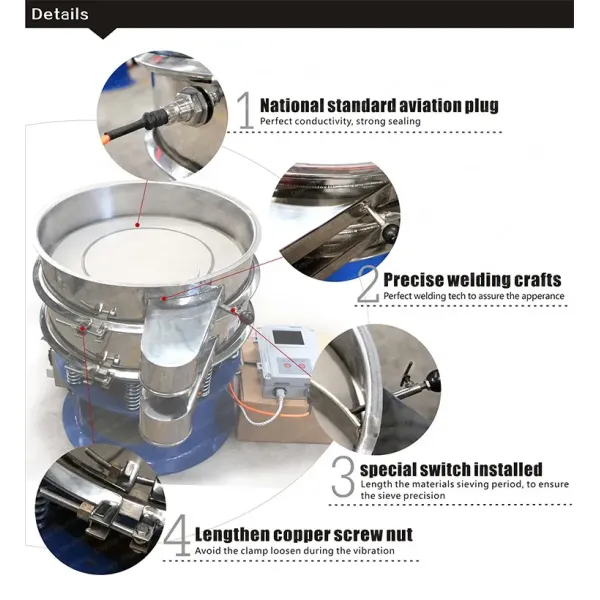

Detailed Photos

High frequency electric is generated by ultrasonic vibration sieve source through the transducer into longitudinal oscillation of high frequency sine form,those sasser spread to resonators,and generate resonance,then vibration evenly transmitted to the screen surface by the resonator.Raw material doing low-frequency Three-D vibration,while ultrasonic vibrations,can prevent clogging screen mesh,but also improve the capacity and accuracy of screening.
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator

Product Parameters

Model Power(KW) Sieving diameter(mm) Volume (mm) Layer
DYC600-1S
DYC600-2S		 0.55 550 800*800*680 1-2
DYC800-1S
DYC800-2S		 0.75 750 900*900*780 1-2
DYC1000-1S
DYC1000-2S		 1.1 950 1160*1160*880 1-2
DYC1200-1S
DYC1200-2S		 1.5 1150 1360*1360*980 1-2
DYC-1500-1S
DYC-1500-2S		 2.2 kw 1150 1360*1360*980
1360*1360*1160		 1-2
DYC-1800-1S
DYC-1800-2S		 3 kw 1450 1850*1850*1130
1850*1850*1330		 1-2

Customer Case

Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator

Application Industry

New Style Fine Sieving Ultrasonic Vibrating Screen Separator vibro sieve are widly used in many industries as below:

1. Chemical industry: resin, paint, industrial drugs, cosmetics, paint, herbal powder and so on.
2. Food industry: sugar powder, starch, salt, rice powder, milk powder, soybean milk, egg powder, soy sauce, juice, etc.
3. Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod
4. powder, manganesedioxide, electrolytic copper powder, Electromagnetic material, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.
5. Other industries: waste oil, waste water, dyeing and finishing waste water, paper making, additives, activated carbon.
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator

Packaging & Shipping

Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator

Related Products

Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator

Company Profile

Xinxiang Dayong Vibration Equipment Co., Ltd. CE certified enterprise, specializes in manufacturing series of vibrating screen and vibrating machine and we could design, develop and produce by ourselves. At present, the main range of products include kinds of series of vibrating screens, vibrating separator and filter, ultrasonic vibrating screens, sifting machines, filtering machines, linear vibrating screens, testing screens, vibrating conveyors, etc. These products are highly suitable to the purpose of screening grains and powders and filtering serous fluids. Other uses include the sifting and sorting dry powders, liquids and solids in industries such as Chemicals, Food processing, Pharmaceuticals, Metallurgy, pigments, Ceramics and Abrasives, etc. Our products have seven national patents. CE and ISO certification. The quality and technology of our products have reached the international advanced standard.
Centrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen SeparatorCentrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen SeparatorCentrifugal Vibrating Sieve Screen Ultrasonic Circular Vibrating Screen Separator

1).MOQ require?

Our moq is 1 set.(If you need the spare parts,it is also ok).
2).Payment method?
Usually,we accept T/T,Western Union and others, we can't accept D/P,D/A
3).How to guarantee the quality?
If any machine quality problems, we accept return cargos. Our warrantity is 18 months, promise your 0 risks purchasing
