Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Specifications
Brand Name :
DY
Model Number :
DYC-800
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
2600
Payment Terms :
MoneyGram,Western Union,T/T,D/A,D/P,L/C
Supply Ability :
1-8unit/7-15Days
Packaging Details :
Wooden Package
Delivery Time :
7-15 work days
Description

Customizable carbon steel or stainless steel ultrasonic vibrating screen for powder sieving

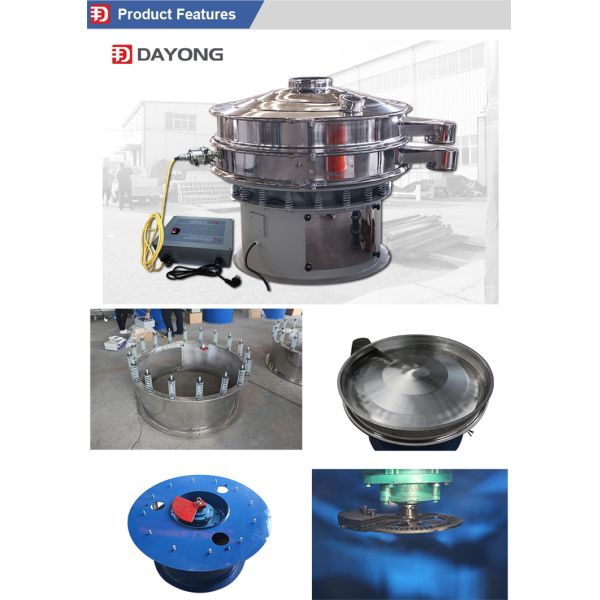

Product Display
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh

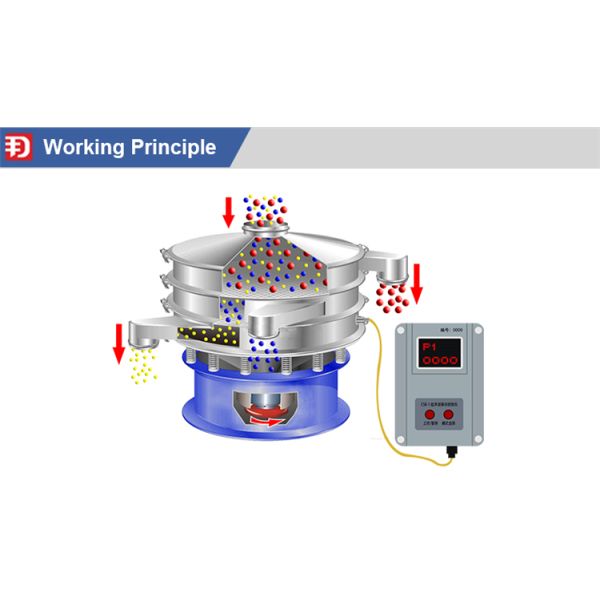

Product Introduction of Ultrasonic Vibrating Screen
The ultrasonic round rotary vibrating screen is consisit of the ultrasonic generator, transducer, resonant ring, vibration motor, screen body. The ultrasonic generator creates high frequency oscillation, and transducer will convert it to the high frequency sine shaped longitudinal oscillatory wave, then the oscillatory will be transmissed to the resonant ring and creates the sympathetic vibration, and the resonant ring will transmissed the vibration to the screen surface evenly. In this case, based on
the low frequency three dimensionl movement and supersonic vibration wave, the machine can not only keep off the screen mesh jam but also can improve the sieving capacity and quality.
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Product Parameters
Model
Power (kw)
Valid Diameter (mm)
Layer (s)
DYC-600
0.55
550
1-3 layers
DYC-800
0.75
750
DYC-1000
1.1
950
DYC-1200
1.5
1150
DYC-1500
2.2
1450
DYC-1800
3
1750
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh

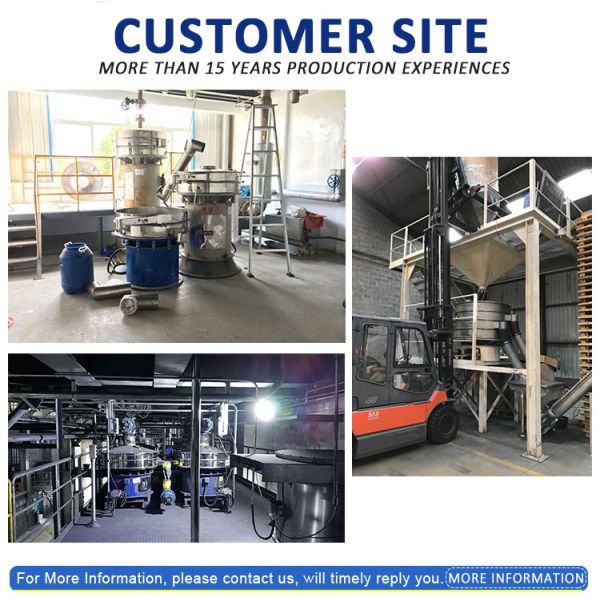

Customer Case
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Product Description
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Advantages
1.Small size, light weight, saving space. 2.The direction of the discharge port can be adjusted, coarse and fine material automatically discharged. 3.No mesh plug, no powder flying, the smallest screen can be up to 500 mesh (28 microns), the smallest filter up to 5 microns. 4.Single layer rotary vibration screen with unique grid design, long-term use of screen, easy to change screen mesh, only 3-5 minutes, simple operation, easy to clean. 5.No mechanical action, easy maintenance, can be single or multi-layer, contact part of the material is made of stainless steel (except for medical use). 6.Any solid, liquid, powder, granules, slurry materials within a certain range can be screened.
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh

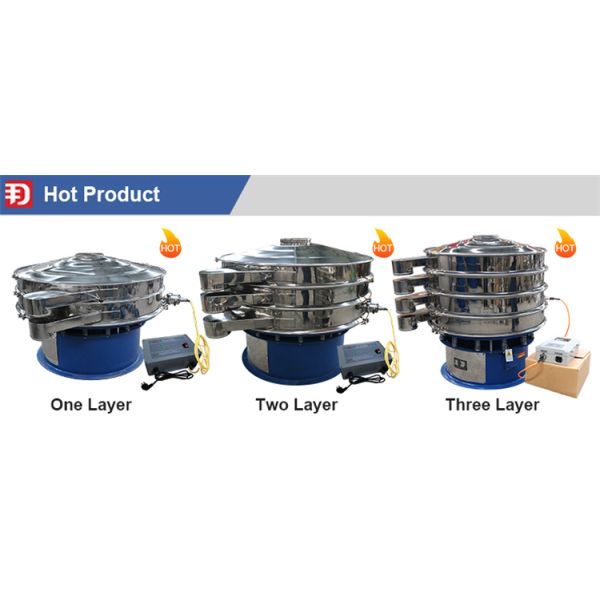

Recommend Products
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Company Profile
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
Product packaging
Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh
FAQ
1).MOQ require?
Our moq is 1 set.(If you need the spare parts,it is also ok).
2).Payment method?
Usually,we accept T/T,Western Union and others, we can't accept D/P,D/A
3).How to guarantee the quality?
If any machine quality problems, we accept return cargos. Our warrantity is 18 months, promise your 0 risks purchasing
