5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging
5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging
5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging
5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging
5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging
5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging
5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging
5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging
5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging
5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging
Specifications
Brand Name :
shunxiang
Model Number :
F48200
Certification :
CE,ROSH,FCC,UN38.3
Place of Origin :
China
MOQ :
20
Payment Terms :
T/T
Supply Ability :
500pcs/month
Delivery Time :
18-20work days
Packaging Details :
Wooden Box
Rated Power :
5000W
Capacity :
10kWh
Cut-off Charging Voltage :
54.8V
Cut-off Discharging Voltage :
41.6V
Rated Charging Current :
50A, Maximum: 60A
Rated Discharge Current :
100A Max: 200A
Solar Charging :
3400W MPPT
Weight :
128 kg
Description

Rated Power: 5000W
AC Output: 5000W
Capacity: 10kWh
Cut-off Charging Voltage: 54.8V
Cut-off Discharging Voltage: 41.6V
Rated Charging Current: 50A, Maximum: 60A
Output Voltage: 40-56Vdc
Rated Discharge Current: 100A Max: 200A
Interface: RS485 for LCD/CAN
Supports Solar Charging: Built-in 3400W MPPT

Weight:128kg

5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging

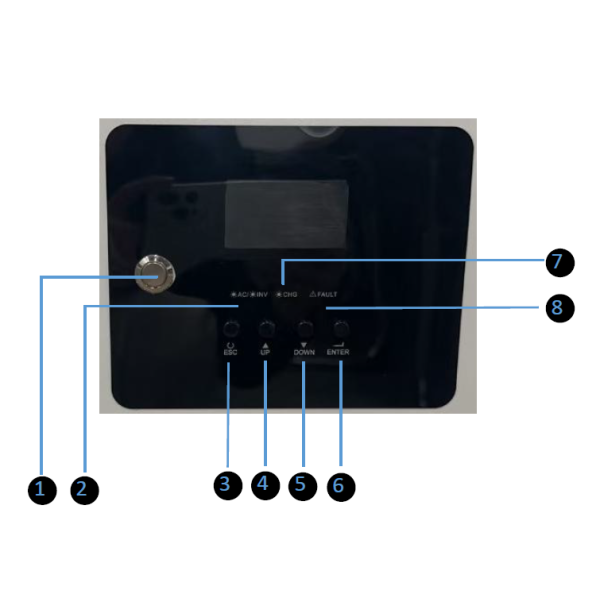

1. Power Switch
2. Status Indicator
3. Exit
4. Up
5. Down
6. Confirm
7. Charging Indicator
8. Fault Indicator

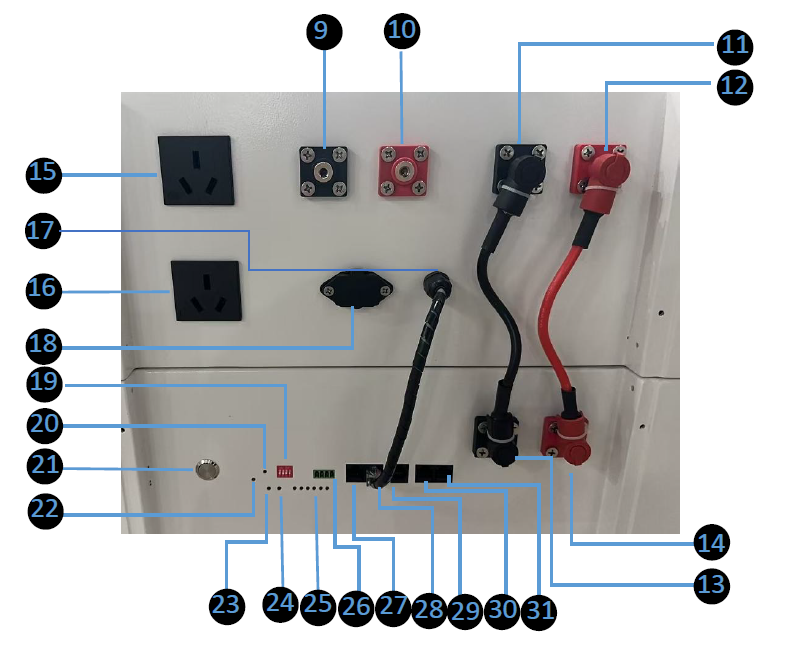

9. PV- Input
10. PV+ Input
11. Battery Negative Terminal
12. Battery Positive Terminal
13. Battery Negative Terminal
14. Battery Positive Terminal

15. AC Output

16. AC Output
17. RS485

18. AC Charging

19. DIP Switch

20. Reset Switch

21. Low-voltage Switch

22. ON/OFF Indicator
23. RUN Indicator

24. ALM Indicator

25. SOC Indicator
26. Dry Contact

27. Communication RS485

28. Communication CAN

29. RS232

30. Parallel RS485

31. Parallel RS485


Operating Instructions:
1. Turn on 21 to activate battery output.
2. Turn on 1 to activate inverter output.
3. Status indicator is green:
① In grid-tied mode, output is powered by utility grid and remains steady.
② In battery mode, output is powered by battery or PV and flashes.
4. Charge Indicator (Green):
① Fully charged battery: Steady on
② Charging battery: Flashing
5. Fault Indicator (Red):
① Inverter fault: Steady on
② Inverter warning: Flashing
6. Function Keys:
① Exit: Leave setup mode
② Up: Return to previous selection
③ Down: Navigate to the next option
④ Confirm: Confirm selections in setup mode or enter setup mode
6.1 Pressing the Up or Down keys cycles through LCD display messages
6.2 Hold the Confirm key for 3 seconds to enter setup mode. Press the Up or Down keys to select a setup program. Press Confirm to confirm the selection or Exit to cancel.
