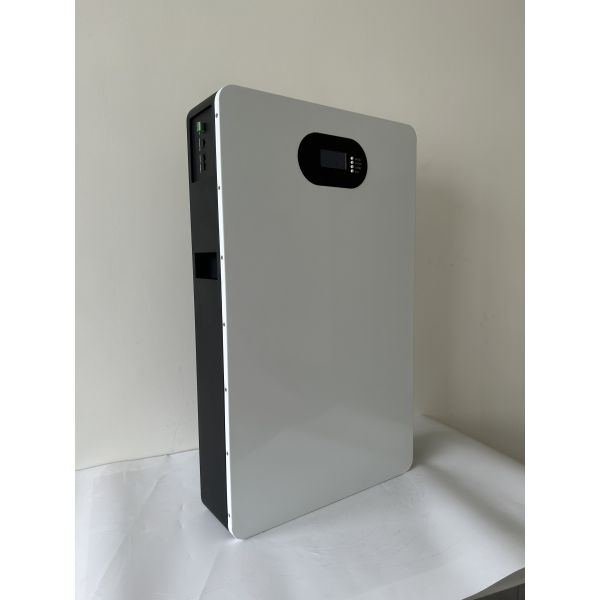

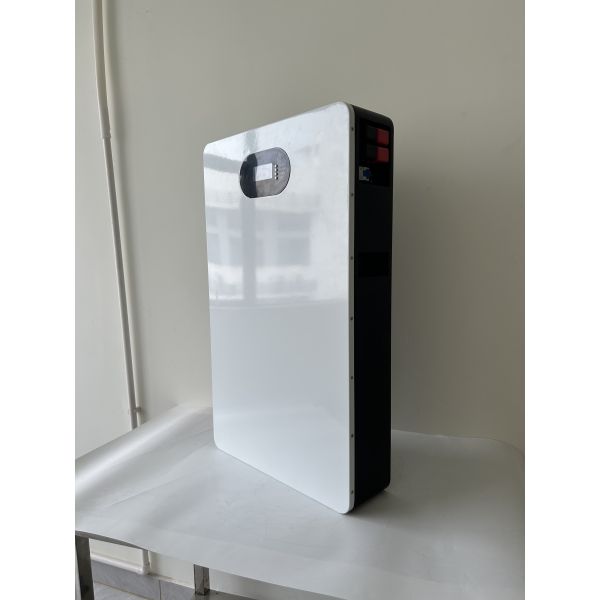

Homewizard P1 Meter 51.2V 200A LiFePO4 Lithium-ion Battery with 10.24KWh Energy Storage System for Home Solar Wall Mounted Installation
Homewizard P1 Meter 51.2V 200A LiFePO4 Lithium-ion Battery with 10.24KWh Energy Storage System for Home Solar Wall Mounted Installation
Homewizard P1 Meter 51.2V 200A LiFePO4 Lithium-ion Battery with 10.24KWh Energy Storage System for Home Solar Wall Mounted Installation
Homewizard P1 Meter 51.2V 200A LiFePO4 Lithium-ion Battery with 10.24KWh Energy Storage System for Home Solar Wall Mounted Installation
Homewizard P1 Meter 51.2V 200A LiFePO4 Lithium-ion Battery with 10.24KWh Energy Storage System for Home Solar Wall Mounted Installation
Homewizard P1 Meter 51.2V 200A LiFePO4 Lithium-ion Battery with 10.24KWh Energy Storage System for Home Solar Wall Mounted Installation
Specifications
Model Number :
512100
Certification :
CE,ROSH,FCC,UN38,MSDS
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T
Supply Ability :
10000 set/month
Delivery Time :
3-8 work days
Packaging Details :
Carton/Wooden crate
Battery Chemistry :
LiFePO4
Nominal Voltage(V) :
51.2
Capacity(Ah) :
200
Energy(KWh) :
10.24
Charge Current(A) :
100
Discharge Current(A) :
100
Description
Homewizard P1 Meter Home Solar Energy Storage Systems - AEG SolarCube 51.2V 200A Lithium-Ion Battery
Technical Specifications
Parameter Specification
Model LC-LW51200
Battery Chemistry LiFePO4
Capacity 200 Ah
Scalability Max. 15 units in parallel (153.6 kWh)
Nominal Voltage 51.2 V
Operating Voltage 46-56 V
Energy 10.24 kWh
Charge Current 100 A
Discharge Current 100 A
Physical & Environmental Specifications
Parameter Specification
Recommended Depth of Discharge 80%

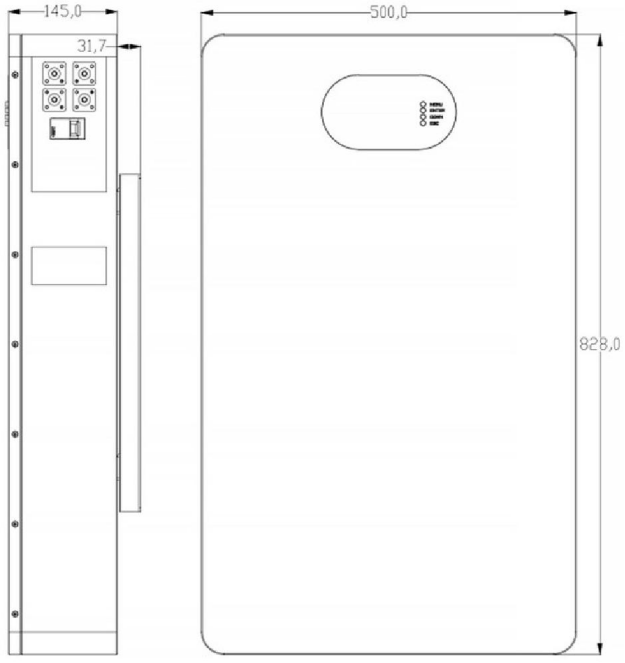

Dimensions (L*W*H) 828 * 500 * 145 mm
Approximate Weight 85 kg
Master LED Indicator 6 LED (SOC: 0-100%)
3 LED (Power on, Working, Alarming)
IP Rating IP20
Working Temperature Charge: 0℃ to 55℃
Discharge: -20℃ to 55℃
Storage Temperature -30℃ to 60℃ (humidity ≤75% ROH)
Humidity 5% to 95%
Altitude ≤2000 m
Performance & Features
Parameter Specification
Cycle Life ≥4500 cycles (25±2℃, 100% DOD, 80% EOL)
≥6000 cycles (25±2℃, 90% DOD, 70% EOL)
Installation Wall Mount
Communication Port CAN 2.0, RS485
Wireless Communication Bluetooth, WiFi
Warranty Period 5 years
Certification CE-EMC, MSDS, UN38.3
Homewizard P1 Meter 51.2V 200A LiFePO4 Lithium-ion Battery with 10.24KWh Energy Storage System for Home Solar Wall Mounted Installation
