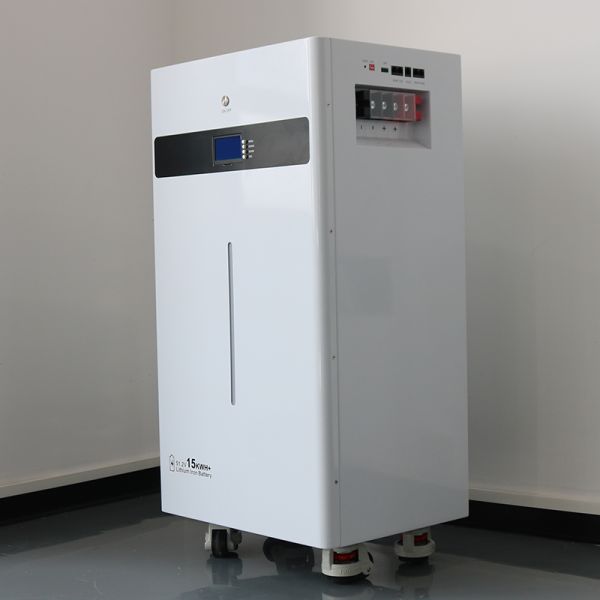

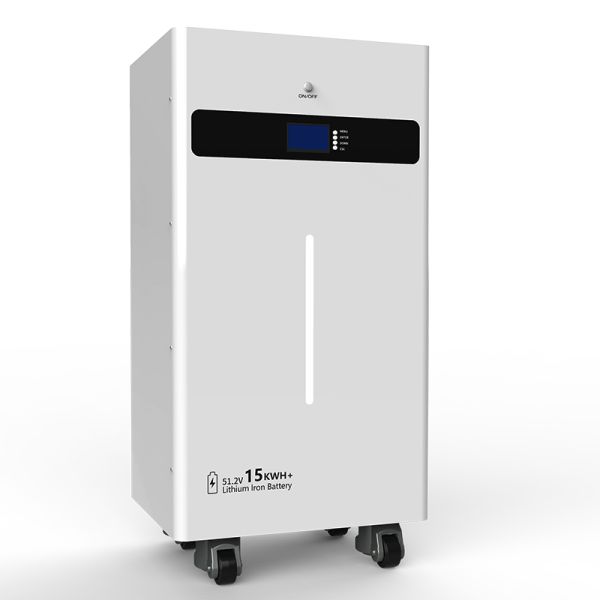

15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
Specifications
Model Number :
W91
Brand Name :
Shunxiang
Place of Origin :
Guangdong, China
MOQ :
5
Certification :
CE;ROSH;FCC;UN38.3
Payment Terms :
T/T
Supply Ability :
500pcs/month
Delivery Time :
18-20work days
Packaging Details :
Wooden crate
Battery Type :
LiFePO4
System Voltage :
51.2 V
Output Power Range :
5-10kW
Dimension (L*W*H) :
915*420*410mm
Weight :
126kg
System Type :
Rack-mounted
Type :
Split
Communication Port :
CAN, Rs485, RS-232
Protection Class :
IP54
Grid connection :
Hybrid grid

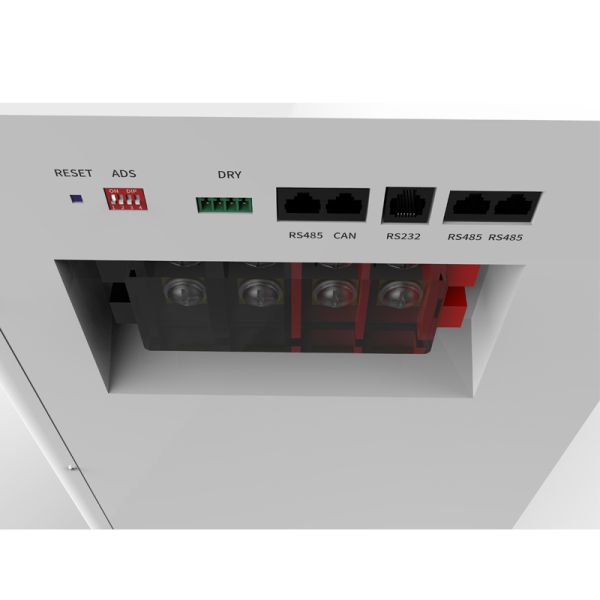

Port :
ADS/ DRY/RS485 CAN/ RS232
OEM/ODM :
Accepatable
Operating Temperature :
-20°C ~70°C
Description
Product Description

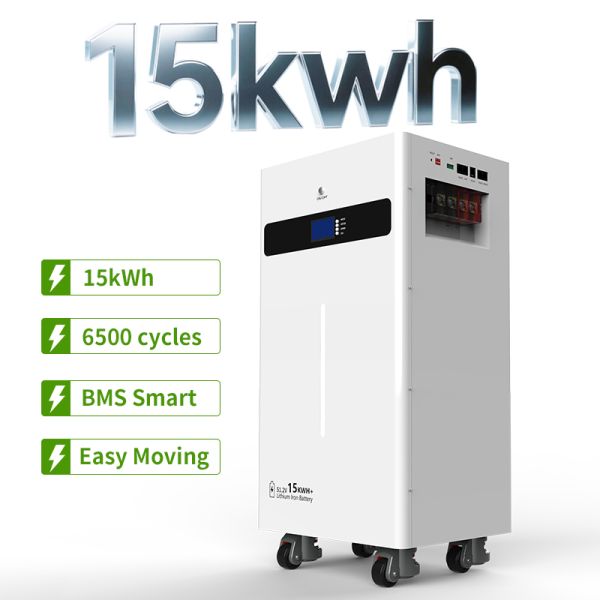

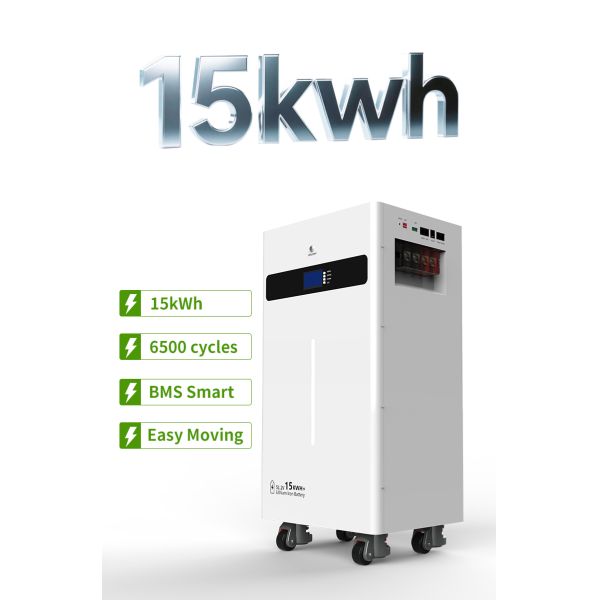

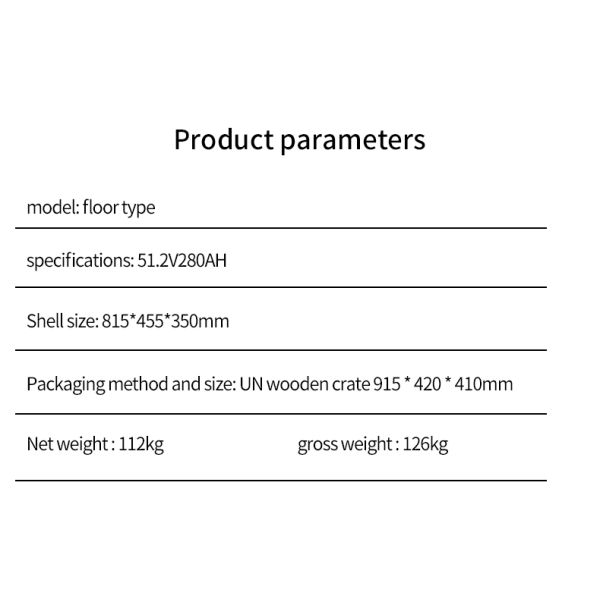

uD83DuDD0B 15kWh Massive Capacity & 6500 Cycles – LiFePO4 battery (51.2V 280Ah) powers homes 24/7. Ultra-long lifespan (6500 cycles) outperforms competitors by 2X.

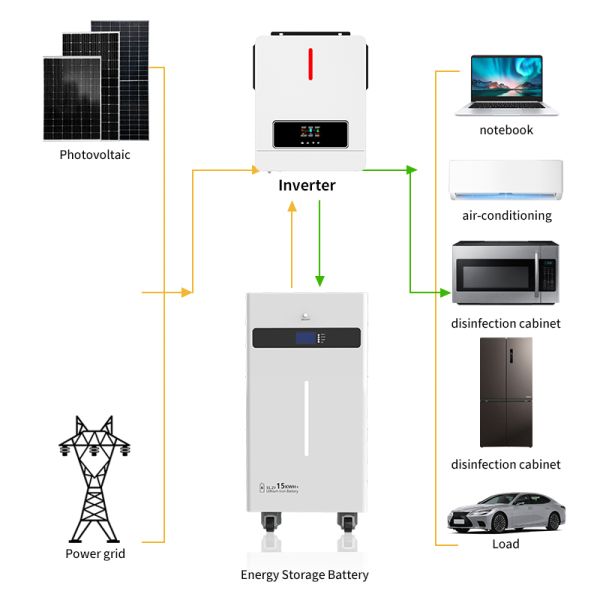

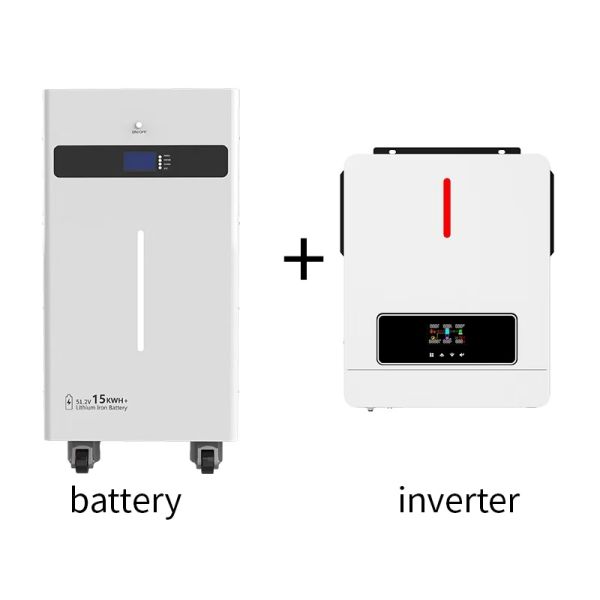

☀️ Solar-Ready + 6500W PV Input – Built-in 120A MPPT solar charger (max 6500W input, 60-500VDC) stores green energy. Works on/off-grid with pure sine wave inverter.
uD83DuDEE1️ 9-in-1 Smart BMS Protection – Monitors over-voltage, short circuit, temperature, reverse charging, etc. UN-certified crate ensures safe transport.

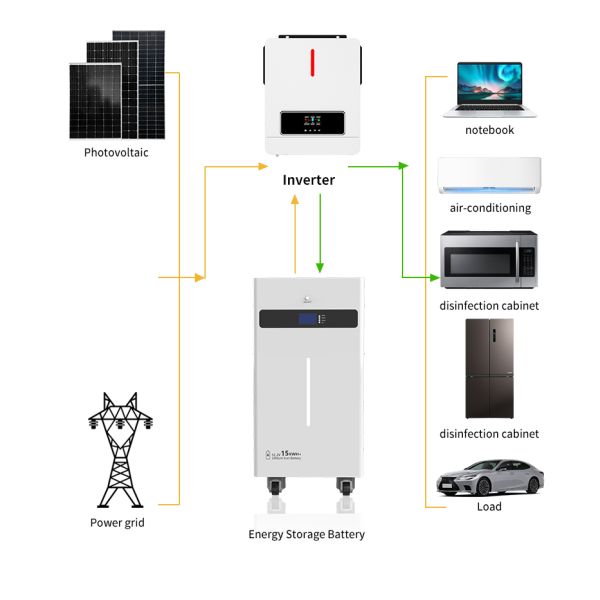

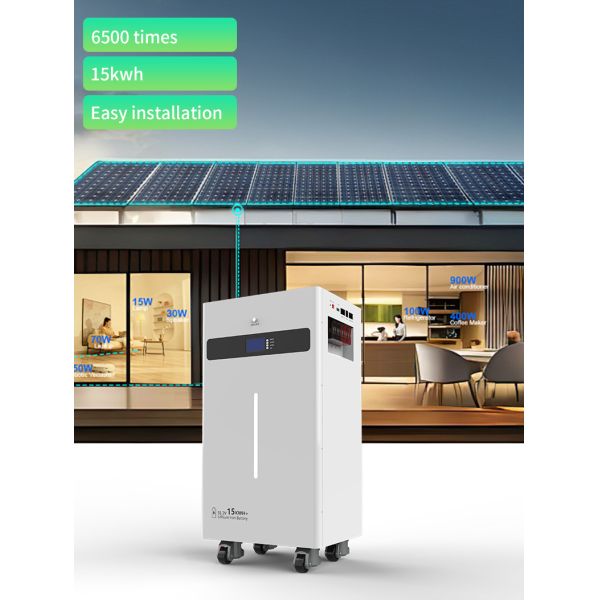

uD83CuDFE0 Plug & Play for Whole-House Backup – Powers air conditioners (900W), coffee machines (400W), lights, EV chargers, and medical devices during outages.

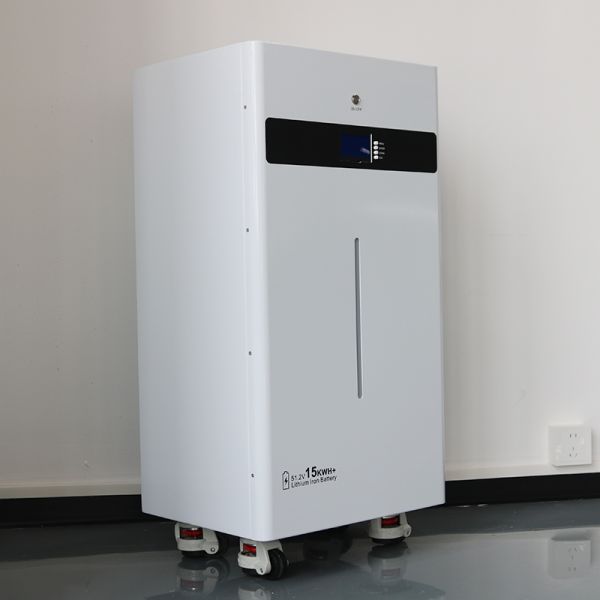

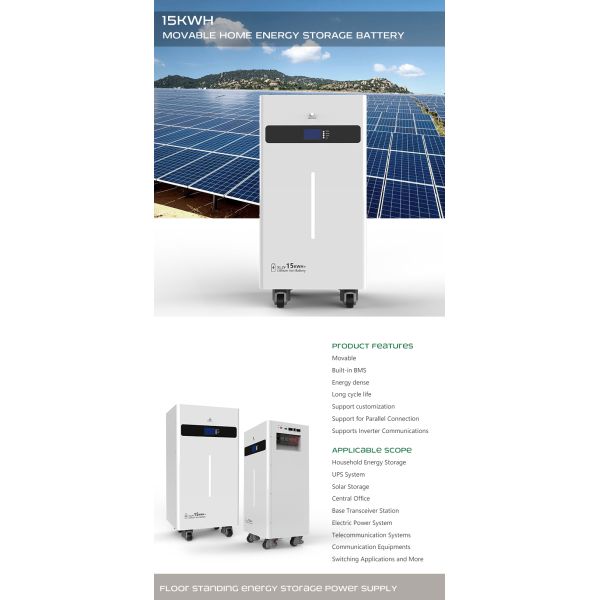

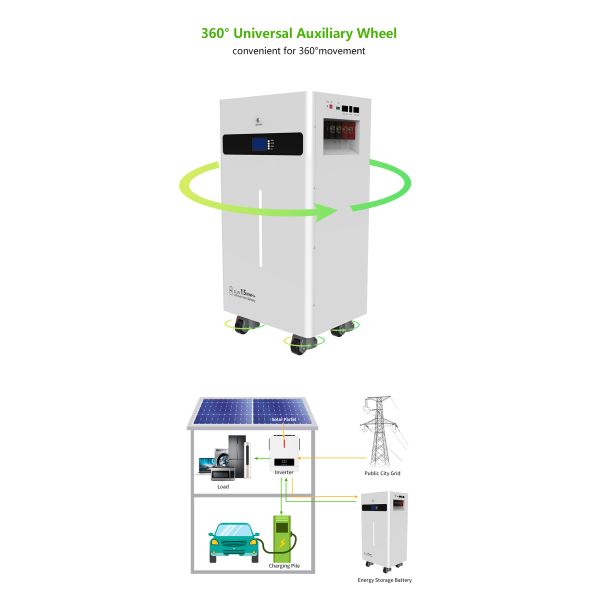

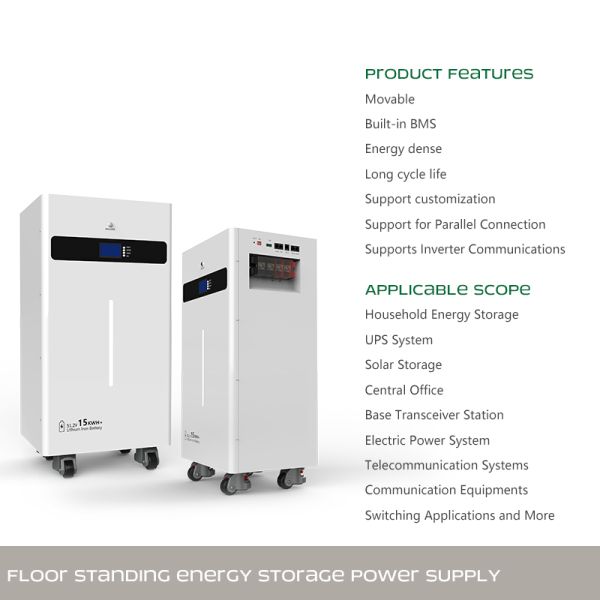

♻️ Mobile & Expandable Design – 360° wheels + handles for easy relocation. Support parallel connection + inverter communication. Customizable capacity.
MODEL
VICTOR NM-ECO-3.6KW PLUS
VICTOR NM-ECO-4.2KW PLUS
VICTOR NM-ECO-6.2KW PLUS
Phase
1-phase
Maximum PV Input Power
6200W
6500W
6200W
6500W
Rated Qutput Power
3600W/3600VA
4200W/4200VA
6200W/6200VA
Maximum Solar Charging Current
120A
80A
120A
GRID-TIE OPERATION
PVINPUT(DC)
Nominal DC Voltage/Maximum DC Voltage
3601500VDC
Start-up Voltage/initial Feeding Voltage
60VDC/90VDC
MPPT Voltage Range
60~450VDC
Maximum Input Current
1/18A
1/22A
1/18A
1/22A
GRID OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195~253VAC
Nominal Output Current
15.7A
18.2A
27.0A
Power Factor
>0.99
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)
98%
TWO LOAD OUTPUT POWER
Full Load
3600W
4200W
6200W
Maximum Main Load
3600W
4200W
6200W
Second Load Range
720W-2520W
840W~2940W
1240W~4340W
Maximum Load Cut Off Voltage
26VDC
52VDC
26VDC
52VDC
Maximum Load Return Voltage
27VDC
54VDC
27VDC
54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90~280VAC or 170~280VAC
Frequency Range
50±1Hz/60±1Hz
Maximum AC input Current
21.1A
24.7A
36.4A
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage
360/500VDC
MPPT Voltage Range
60~450VDC
Maximum Input Current
1/18A
1/22A
1/18A
1/22A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Wave Form
Pure sine wave
Efciency (DC to AC)
94%
BATTERY&CHARGER
Nominal DC Voltage
24VDC
48VDC
24VDC
48VDC
Maximum Solar Charging Current
120A
80A
120A
120A
Maximum AC Charging Current
100A
60A
100A
100A
Maximum Sotar+AC Charging Current
120A
80A
120A
120A
HYBRID OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage
360/500VDC
Start-up Voltage/lnitial Feeding Voltage
90VDC/120VDC
MPPT Voltage Range
60~450VDC
Maximum Input Current
1/18A
1/22A
1/18A
1/22A
GRID OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195~253VAC
Nominal Output Current
15.7A
18.2A
27.0A
AC INPUT
AC Start-up Voltage/Auto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VAC or 170-280VAC
Maximum AC Input Current
21.1A
24.7A
36.4A
Maximum Charging Current
100A
GENERAL
PHYSICAL
Dimension ,H*W*D(mm)
420*350*110
Cartoon Dimension ,H*W*D(mm)
500*415*180
Net Weight (kgs)
8
8
8.9
Gross Weight (kgs)
9
9
10
INTERACE
Communication Port
RS232/RS485/WIFIGPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non~condensing)
Operating Temperature
-10℃-50℃
STANDARD
Compliance Safety
CE
Features
Pure sine wave solar inverter(on/off Grid)
Ouiput powerfactor 1.0 WIFl&GPRS available for IOS and Android
Inverter can run without battery
One-key restoration lo factory Setlings
Buiit-in Lithium battery automatic activation
Dual communication ports for Ballery communication and Wif communication
Built-in 120A MPPT Solar charge: max 6200W(for 3.6KW/4.2KW),max6500w(for 6.2KW)
Built-in 80A MPPT Solar charge max6500W(for 3.6KW/48V)
High Pvinput voltage range(60-500VDC)
Built-in anti-dust kit for harsh
environment Smart battery charge design to optimize battery life
Dual output
