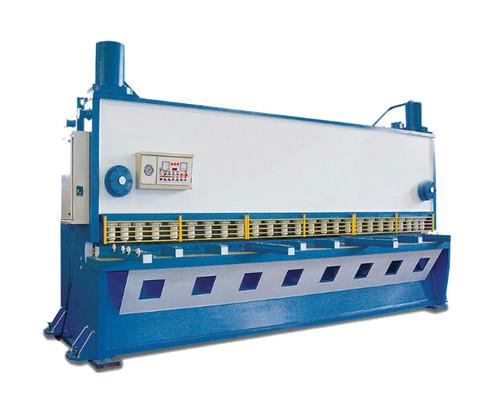

Hydraulic Shearing Machine


1.Whole Structure:
■ Totally European design, streamlined looking, Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
■ The one-piece welded frame is machined at one time on a moving column machining centre and this maintains maximum cutting accuracy.
■ High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
■ The machine by the European Union CE certification and ISO quality system certification
2.Hydraulic System:
■ Adopt integrated hydraulic control system, more reliable and easy for maintenance.
■ All pipes, flange and joint with vibrations proof and leakage proof design and setting .
■ All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance
■ The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).
■ Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
3.Electrical System:
■ Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability.
■ Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
■ Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.
4.Blade adjust and cutting precision:
■ The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.
■ Cutting length can be adjusted from the control panel so that the blade does not need to complete the entire cycle.
■ System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.
■ Blade gap adjustment for a good,square, burr-free cut and for increased blade life the blade gap must be adjusted to suit blade thickness.
5.Electrical system and the safety interlock:
■ Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
■ Emergency stops on machine and foot switch for safety and Fence like body guard is standard or light curtain is optional.
