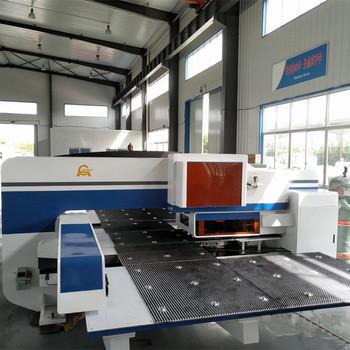

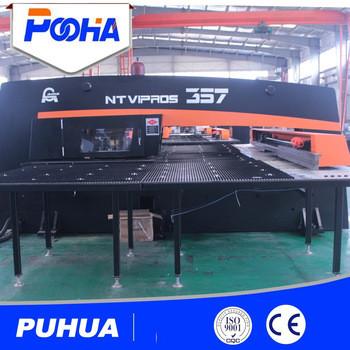

Mechanical Cnc Turret Punching Machine For Sheet Metal / Air Conditioners
Mechanical Cnc Turret Punching Machine For Sheet Metal / Air Conditioners
Mechanical Cnc Turret Punching Machine For Sheet Metal / Air Conditioners
Mechanical Cnc Turret Punching Machine For Sheet Metal / Air Conditioners
Mechanical Cnc Turret Punching Machine For Sheet Metal / Air Conditioners
Mechanical Cnc Turret Punching Machine For Sheet Metal / Air Conditioners
Specifications
Brand Name :
Qingdao Amada
Model Number :
AMD-H
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
30 Workdays
Packaging Details :
Stretch film
Plate thickness :
10-30mm
Driven :
Hydraulic
Warranty :
12 months
Color :
Customizable
CNC or Not :
CNC
Max. Process Plate Size :
2500*1250
Max. Punch Hole Size :
88.9
Description

Mechanical Cnc Turret Punching Machine For Sheet Metal / Air Conditioners

Turret Punching Machine Techinal Parameter

Parameter

Unite

B32(Closed Type)

Nominal Force

 KN 300

Max. Process

Plate Size

 mm 1250*2500
Max. Process Plate Thickness mm ≤6
Max. Punch Hole Size mm 88.9
Max. Plate Weight kg 150
Number of Station set 32
Precision set ±0.10
Max. Punch Frequency hpm

stroke 8mm-500

Stroke 30mm-100
Max. Plate Move Speed m/min 120
Rotating Speed rpm 30
X Axis Stroke mm 1250
Y Axis Stroke mm 1250
Number of Control Axis set 4 axis
CNC system Germany Siemens
Air Pressure mpa 0.55
Dimension mm 5200*3800*2200
Motor Power kw 4.5
Machine Type

Closed Type
