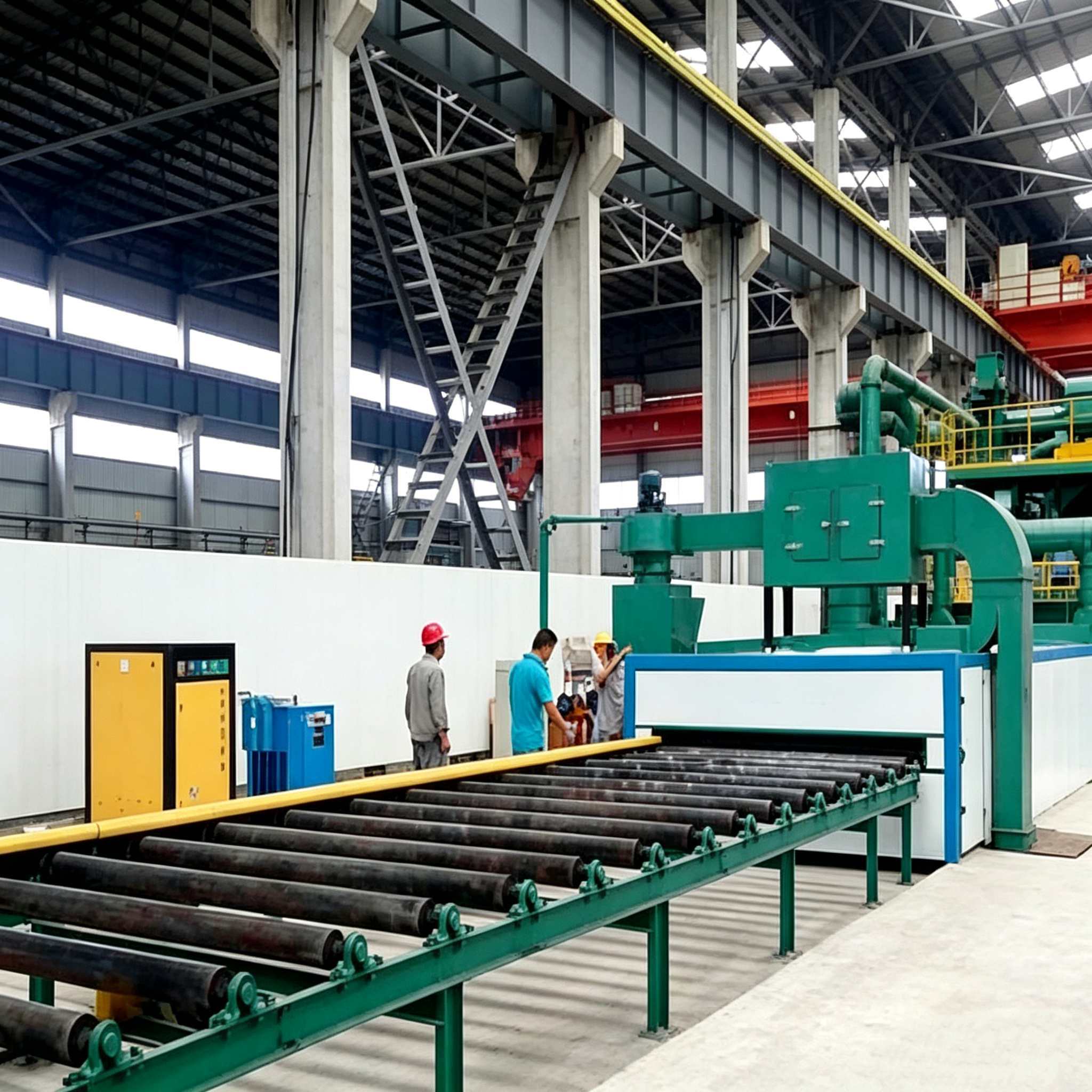

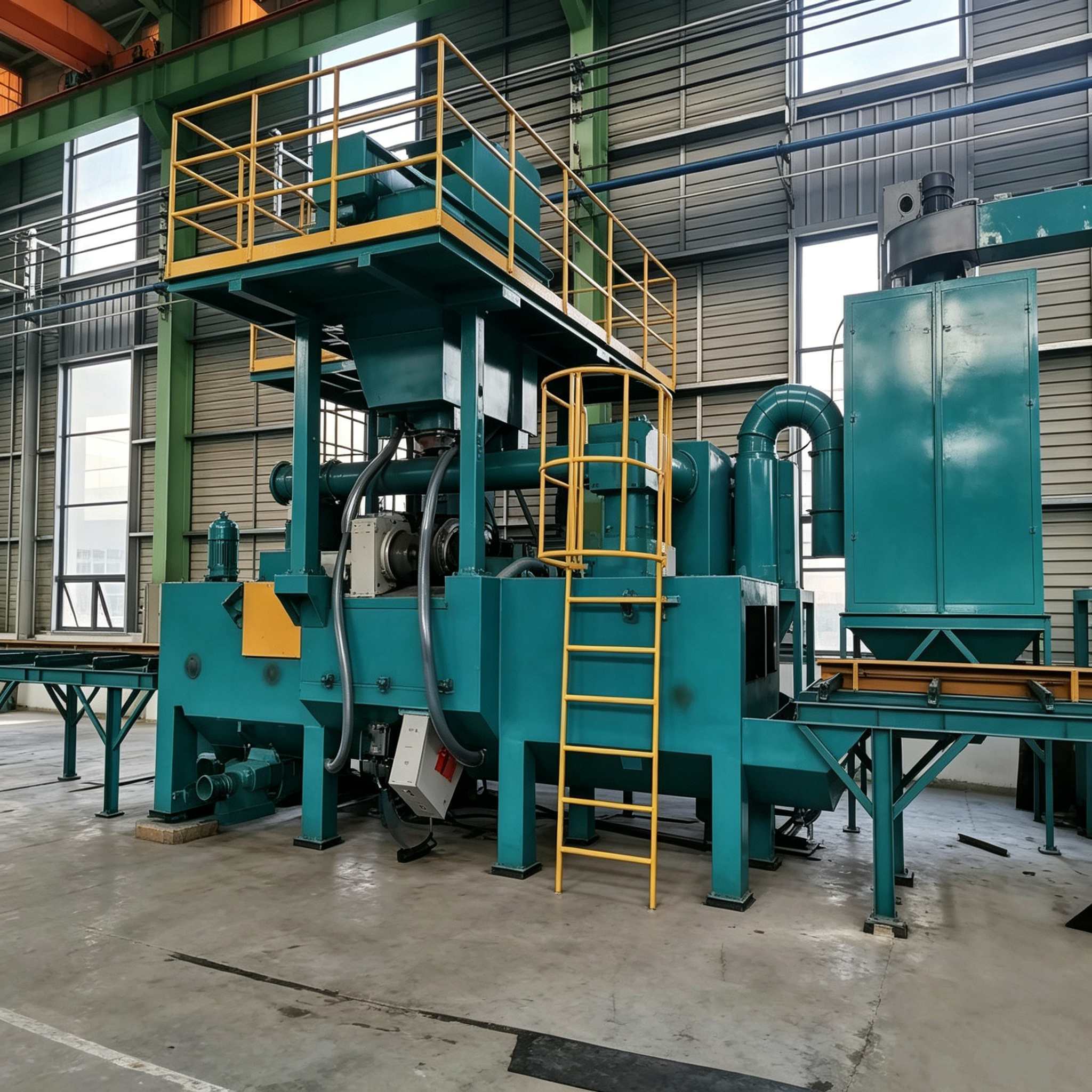

Industrial Roller Conveyor Shot Blasting Machine for steel profiles H beam I beam and bars providing uniform surface cleaning
Industrial Roller Conveyor Shot Blasting Machine for steel profiles H beam I beam and bars providing uniform surface cleaning
Industrial Roller Conveyor Shot Blasting Machine for steel profiles H beam I beam and bars providing uniform surface cleaning
Industrial Roller Conveyor Shot Blasting Machine for steel profiles H beam I beam and bars providing uniform surface cleaning
Specifications
Payment Terms :
T/T,L/C
Cleaning Method :
Roller Conveyor
Blast Wheel :
Direct-Coupling Blast Wheel
Work Piece Width :
1500mm
Model Number :
QS698
Specification :
customized
MOQ :
1 set
Delivery Time :
40-50days
Power :
Customized
Price :
30000-200000USD/set
Control :
PLC
Certification :
CE
Place of Origin :
China
Productname :
Roller Conveyor Shot Blasting Machine
Supply Ability :
30 sets/year
Impeller Head Power :
4*11kw
Brand Name :
CHONGJEN
Materialhandled :
Metal parts and components
Packaging Details :
Standard export package
Function :
Cleaning machine
Description
Roller Conveyor Shot Blasting Machine for Steel Profile H Beam I Beam Bars
Capabilities and Applications
The roller conveyor shot blaster performs full surface pre-treatment, removing scale, rust and old paint from steel beams, sheets and profiles. It also cleans heavy machine frames and welded steel assemblies.

The machine is divided into inlet pre-chamber, blasting chamber and final cleaning chamber. Variable-speed roller conveyor (0.5–4 m/min) transports workpieces steadily; roller length can be customized according to workpiece size.

Blast turbines are arranged to match workpiece geometry. Wear-resistant blast wheels with 7.5–45 kW power ensure strong and stable blasting.

Rotating brushes plus high-pressure air nozzles in the outlet chamber clear residual dust from parts.

It connects to full steel fabrication lines including cutting, blasting, painting and drying. Equipped with cartridge dust collector, dust emission is controlled under 30mg/m³.

Custom machine designs are available when standard models do not fit your application.
Technical Specifications
ITEM / MODEL QS698 QS6912 QS6915
Workpiece width <800mm <1200mm <1500mm
Workpiece height <400mm <500mm <600mm
Workpiece length 1-14m 1-14m 1-14m
Turbine quantity 4 4 4/6
Turbine motor power 7.5 kw 7.5 kw/ 11kw 11kw
Roller length 6m-12m 6m-12m 6m-12m
Foundation no pit no pit no pit
Total power about 40 kw about 60 kw about 100kw
Abrasive used S280, S330 S280, S330 S280, S330
Dust collector Cartridge type Cartridge type Cartridge type
Key Advantages
  • Compact design with optional pit or pit-free installation
  • Fully customizable configuration based on workpiece geometry and productivity requirements
  • Adjustable roller conveyor speed from 0.5m/min to 4m/min
  • Touch screen operator interface with integrated PLC, supporting automatic and manual operation modes
  • Blasting chamber protected by wear-resistant manganese steel liner with approximately 15,000-hour lifespan
  • Series of rubber screens contain abrasive within blasting machine at entry and exit chambers
  • Rotary brush and high-pressure blowing fan system removes residual abrasive and dust before workpiece exit
