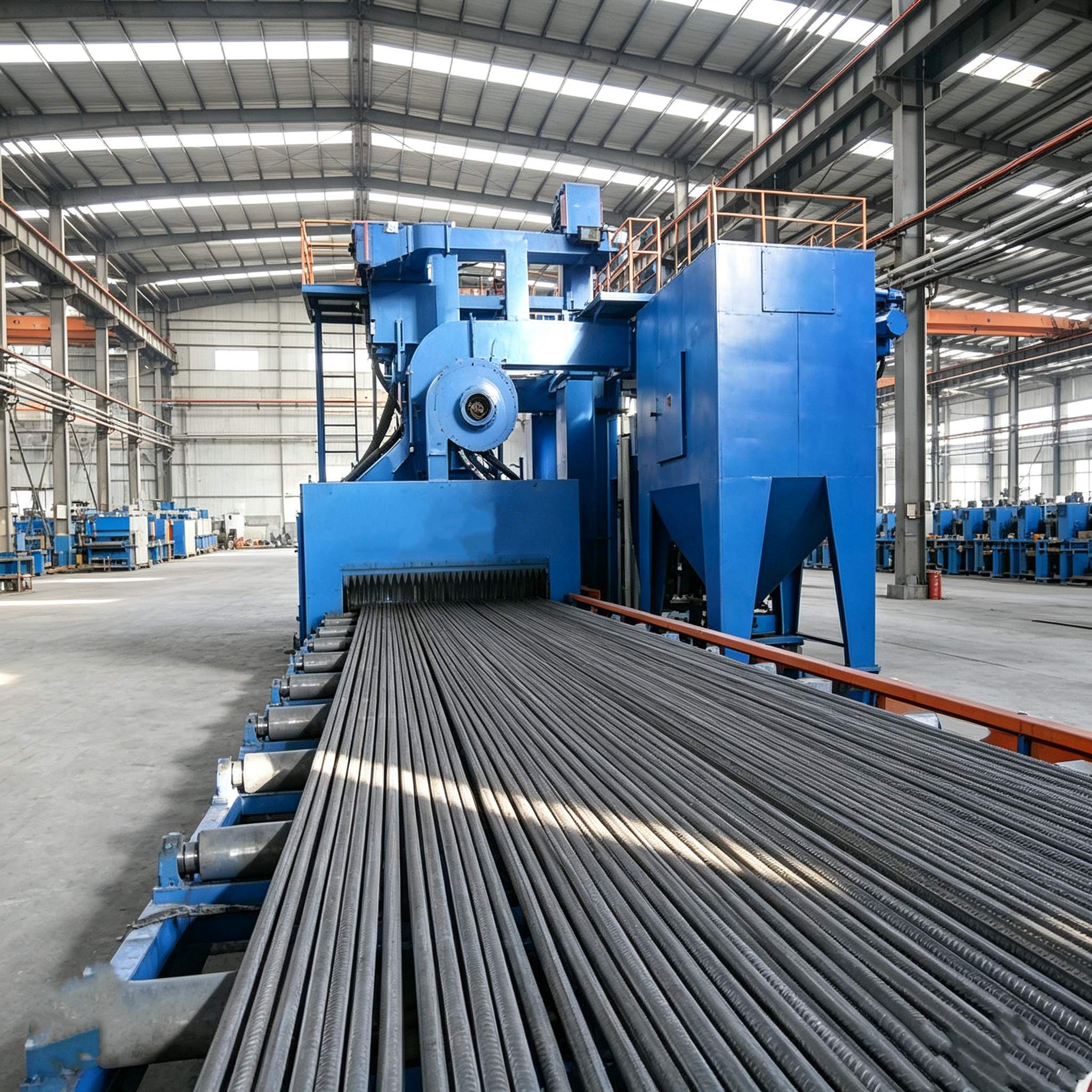

Industrial Steel Bar Shot Blasting Machine Suitable for Removing Scale Rust and Enhancing Surface Finish of Steel Bars
Industrial Steel Bar Shot Blasting Machine Suitable for Removing Scale Rust and Enhancing Surface Finish of Steel Bars
Industrial Steel Bar Shot Blasting Machine Suitable for Removing Scale Rust and Enhancing Surface Finish of Steel Bars
Industrial Steel Bar Shot Blasting Machine Suitable for Removing Scale Rust and Enhancing Surface Finish of Steel Bars
Specifications
MOQ :
1 set
Delivery Time :
40-50days
Dimensions :
Varies by model, e.g., 3000mm x 1500mm x 2000mm
Productname :
Steel Bar Shot Blasting Machine
Packaging Details :
Export package
Price :
25000-50000USD/set
Automation Level :
Fully automatic
Powersupply :
380V/50Hz or customized
Model Number :
QP100
Operatingtemperature :
-10°C to 50°C
Payment Terms :
T/T,L/C
Power Supply :
380V, 50Hz (customizable)
Blastingmedia :
Steel shot or steel grit
Supply Ability :
20 sets/year
Motor Power :
Typically 15-30 kW
Brand Name :
CHONGJEN
Dustcollector :
Integrated dust collection system with filter
Certification :
CEE
Place of Origin :
CHINA
Description
Continuous shot blasting machine for steel wire steel bar steel tube descaling with special conveyors
Capabilities and applications
Built around a custom‑built roller conveyor, this tube and bar shot blasting machine is mainly used to clear scale, old paint and rust off carbon steel tubes, round bars and rebar. It also works well for LPG cylinders, gas cylinders and other cylindrical parts, which can travel smoothly through the blasting chamber supported by our purpose‑designed roller system.

V‑shaped rollers are fitted for workpieces that go through the machine one time only. For parts requiring multiple blasting passes, we adopt straight rollers with several grooves.

The blast wheels are constructed from wear‑resistant material, with power ratings ranging from 7.5 kW to 45 kW to deliver reliable, high‑efficiency blasting. Conveyor travel speed is adjustable between 0.5 m/min and 6 m/min.

A heavy‑duty cartridge filter dust collector is included for environmental compliance, keeping dust emissions below 30 mg/m³.

Should our standard unit fail to satisfy your specific surface finishing needs, we are able to offer fully customised machine solutions.

Models and specification
Machine type QP-100 QP-300 QP-500 PC-800
Max diameter of tubes (mm) 100 300 500 800
Max pass speed (m/min) 6 6 4 3
Min pass speed (m/min) 0.5 0.5 0.5 0.5
Installed power (kW) 11 66 66 66
Type of transport V rollers V rollers V rollers V rollers
Multiple pass Available Available No No
Advantages
  1. The roller conveyor shot blasting machine is compact design and the machine is normally without pit.
  2. Fully tailor made blasting machine according to workpiece shape and productivity requirement.
  3. Roller conveyor speed adjustable from 0.5m/min to 6m/min.
  4. Touch screen operator interface and integrated PLC, automatic mode or manual mode;
  5. The blasting chamber is protected by wear-resistant manganese steel liner, lifetime is about 15000 hours.
  6. Series of rubber screens keep the abrasive inside the blasting machine in entry chamber and exit cleaning chamber.
