Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Specifications
Model Number :
OEM
MOQ :
Based on customer requirements
Delivery Time :
30-45 Days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Brand Name :
NA
Packaging Details :
Polybag, Carton, Wooden case or According to your request
Place of Origin :
CN
Price :
NA
Supply Ability :
100000pcs/ month
Certification :
ISO13485
Description

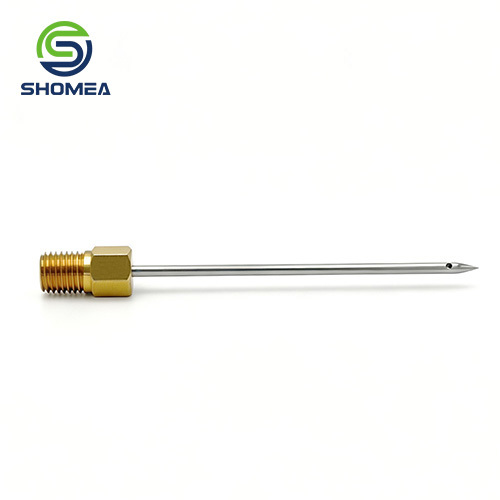

Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base

Products Name Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base
Material Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter 0.25-15mm
Tube wall Thickness 0.05-3mm
Meta Base Male and Female thread
Tolerance OD/ID±0.02mm L±0.05mm or According to Drawing
Size 3G-32G or Customized
LOGO Can be customized according to your drawing
Samples Usually provide 5-10pcs samples for testing before mass production
Delivery Time Usually 5-25days or according to quantity




Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base

Customized Stainless Steel Pen‑Tip Wine Needle With Brass Threaded Base


Product Advantages:

  • Adopt food‑grade stainless steel hollow cannula for needle body, stable performance for wine and beverage liquid injection application.

  • Pen‑tip sharp piercing design enables easy piercing into wine cork, reducing insertion resistance and avoiding debris falling into liquid.

  • Side‑hole structure realizes uniform liquid outflow, prevents hole blockage and guarantees stable infusion effect during working.

  • High‑precision brass threaded base provides reliable threaded connection, easy installation and disassembly on injection equipment. Joint connection is firm without leakage risk.

  • Needle tube diameter, side‑hole position, thread specification and total assembly length can be fully customized according to drawings or samples.
FAQ:

Q1: What stainless steel grades are available for this pen‑tip side hole wine needle?
A1: We mainly supply 304 and 316L stainless steel for cannula. 316L is recommended for long‑term contact with wine to get better corrosion resistance. Brass base material can also be adjusted upon your requirement. Special materials will cause higher cost and extended production lead‑time.

Q2: What surface finish do you apply for this wine infusion needle?
A2: As this needle contacts beverage liquid directly, Ra ≤0.2μm high polishing is adopted as standard to lower liquid residue. Ordinary Ra0.8‑1.0μm finish is optional if your project has no high requirement for inner surface smoothness.

Q3: Which key parameters can be modified for custom production?
A3: Needle OD & ID, side‑hole size, pen‑tip angle, brass thread standard, base dimension and assembled overall length are all customizable within our processing capacity under ±0.02mm tolerance. Please provide technical drawing for formal feasibility evaluation.

Q4: How do you handle burrs on pen tip and side hole to avoid liquid channel blockage?
A4: Multi‑step deburring and internal cleaning will be completed after side‑hole drilling and tip forming. Each finished needle will be inspected to remove micro‑burrs, keeping smooth fluid passage and reducing clogging risk in continuous working.

Q5: Do you provide sample service for wine injector needle? What details need confirmation before sample production?
A5: Custom samples are supported for equipment debugging and piercing performance test. Before sample order, we need to confirm cannula material grade, dimension parameters, side‑hole requirement, brass thread specification and surface finish. Sample cost is calculated according to processing complexity, mass production can start after sample specification is finalized.
