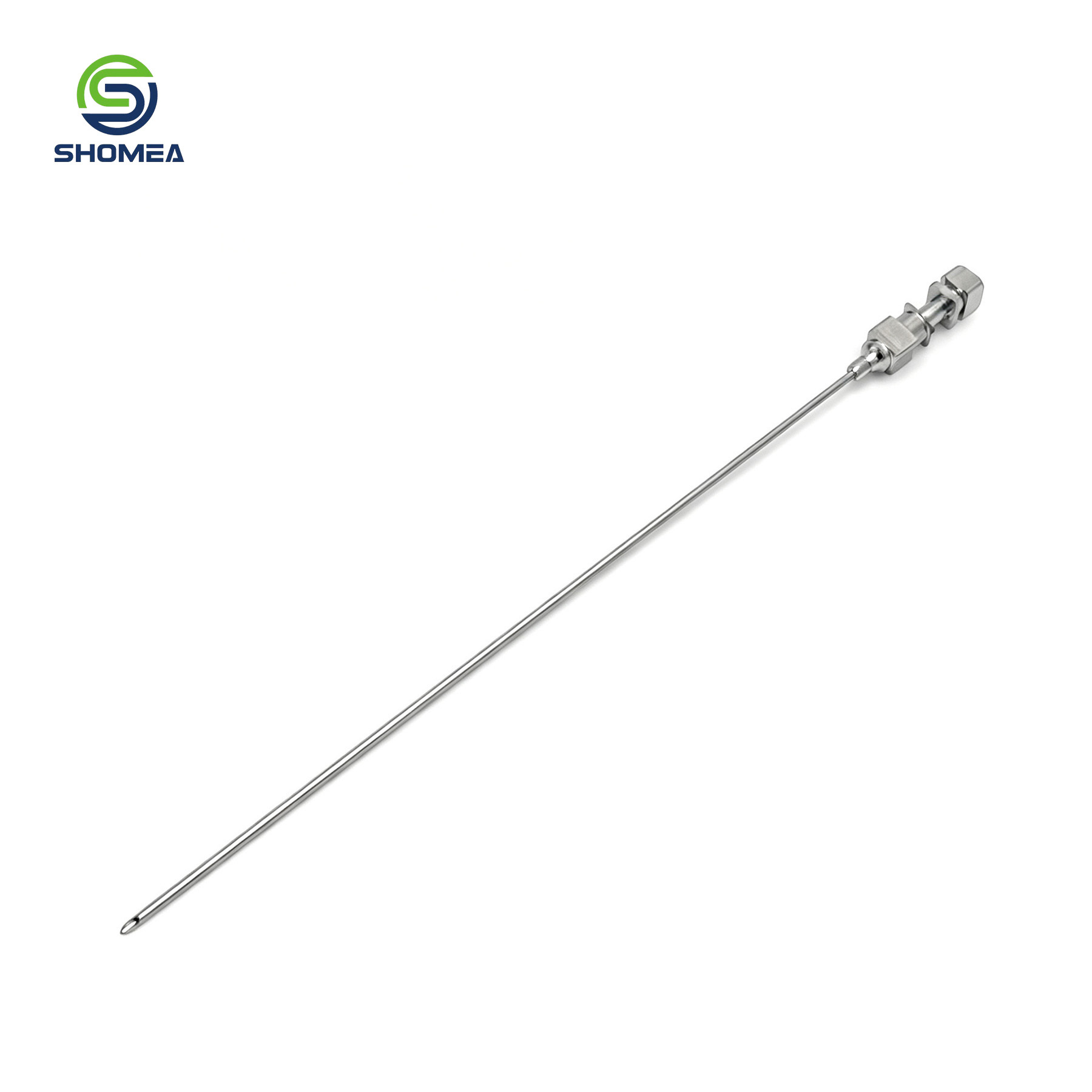

Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Customized Depth Marking Stainless Steel Needle With Luer Fitting
Specifications
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Brand Name :
NA
Packaging Details :
Polybag, Carton, Wooden case or According to your request
Price :
1-20USD
Supply Ability :
100000pcs/ month
Certification :
ISO13485
Model Number :
OEM
MOQ :
Based on customer requirements
Delivery Time :
30-45 Days
Place of Origin :
CN
Description

Customized Depth Marking Stainless Steel Needle With Luer Fitting

Products Name Customized Depth Marking Stainless Steel Needle With Luer Fitting
Material Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter 0.25-15mm
Tube wall Thickness 0.05-3mm
Meta Base Male and Female thread
Tolerance OD/ID±0.02mm L±0.05mm or According to Drawing
Size 3G-32G or Customized
LOGO Can be customized according to your drawing
Samples Usually provide 5-10pcs samples for testing before mass production
Delivery Time Usually 5-25days or according to quantity


Customized Depth Marking Stainless Steel Needle With Luer Fitting

Customized Depth Marking Stainless Steel Needle With Luer Fitting


Product Advantages:

  • Stainless steel cannula matched with standard luer connector, standard tolerance up to ±0.02mm, reliable sealing and stable connection for liquid delivery and sampling operation.

  • Sharp bevel piercing tip with full deburring treatment, low penetration resistance, effectively reduce tissue damage during puncture.

  • Smooth inner and outer tube surface, excellent corrosion resistance, suitable for long-term contact with liquid reagents and biological samples.

  • Cannula OD & ID, needle total length, tip shape and luer specification can be fully customized according to customer technical drawings or samples.

  • Strict dimensional and visual inspection for each batch, stable batch consistency, widely used in medical sampling, laboratory liquid transfer and analytical equipment.
FAQ:

Q1: What stainless steel grades are available for this cannula needle with luer connector?
A1: We mainly supply medical grade 304 and 316L stainless steel. 316L is highly recommended if the needle contacts body fluid, pharmaceutical liquid or chemical reagent for better anti-corrosion performance. Special material is acceptable per your drawing, which will lead to higher cost and longer production lead-time.

Q2: What surface finish options are available for this luer cannula needle?
A2: Ra ≤0.2μm high polishing is our standard finish for liquid flow applications to reduce liquid residue. Ra0.8-1.0μm ordinary surface finish is available as an economical option if ultra-high smoothness is not required.

Q3: Which parameters of this cannula needle can be customized?
A3: Cannula outer diameter, inner diameter, total length, tip bevel angle, luer connector type and assembly structure are all customizable within our processing scope, following ±0.02mm dimensional tolerance. Please provide technical drawing for feasibility assessment.

Q4: How do you eliminate burrs on the needle tip and tube orifice?
A4: After tube cutting and tip forming, multi-step internal and external deburring and cleaning processes will be implemented. Every finished needle will be inspected to remove micro-burrs, avoiding particle contamination and extra damage in puncture.

Q5: Can you supply custom samples? What items should be confirmed before sample production?
A5: Custom samples are supported for equipment assembly and puncture performance test. Before sample order, we need to confirm material grade, cannula dimension parameters, luer connector specification and surface finish requirement. Sample cost is calculated based on processing complexity, mass production can start after sample specification confirmation.
