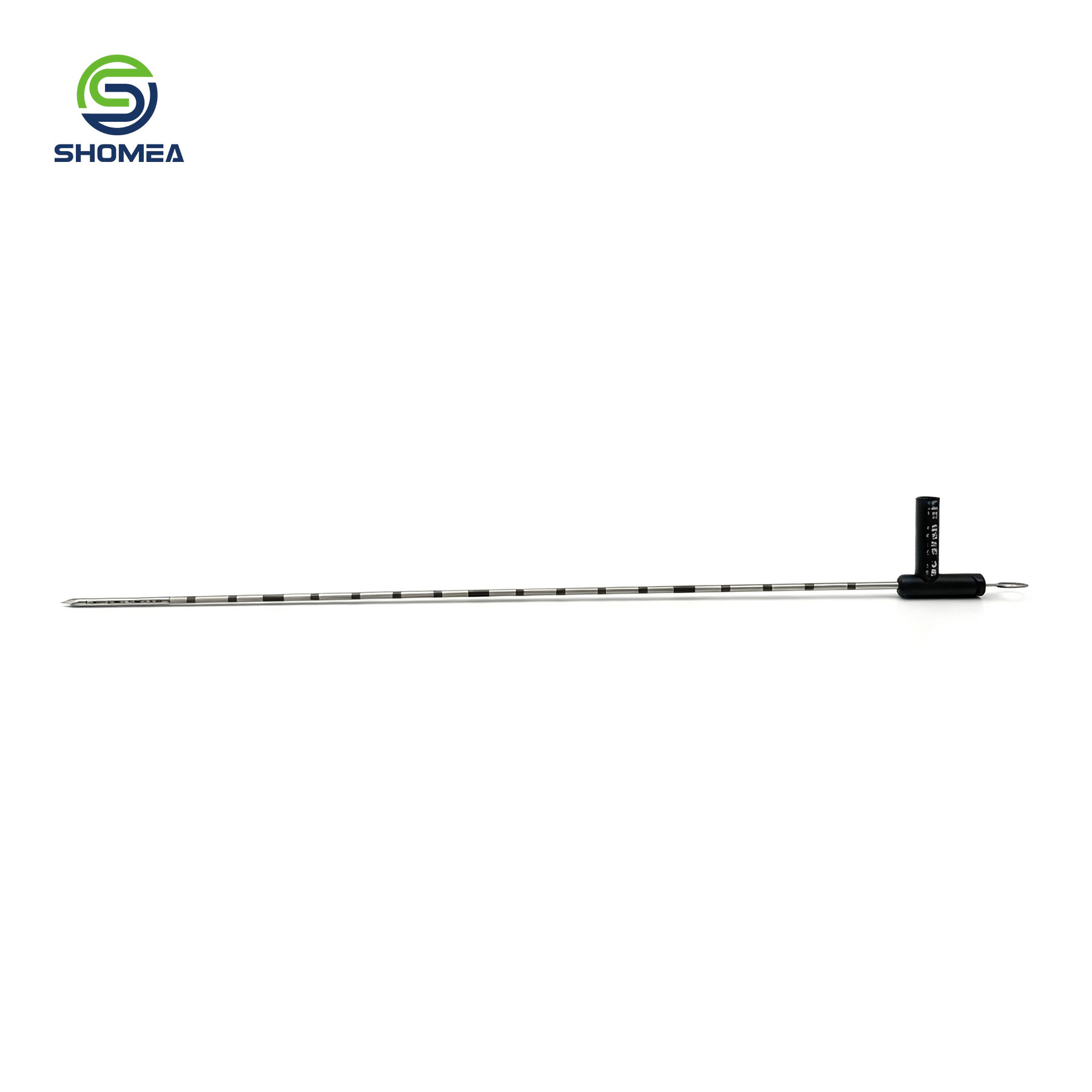

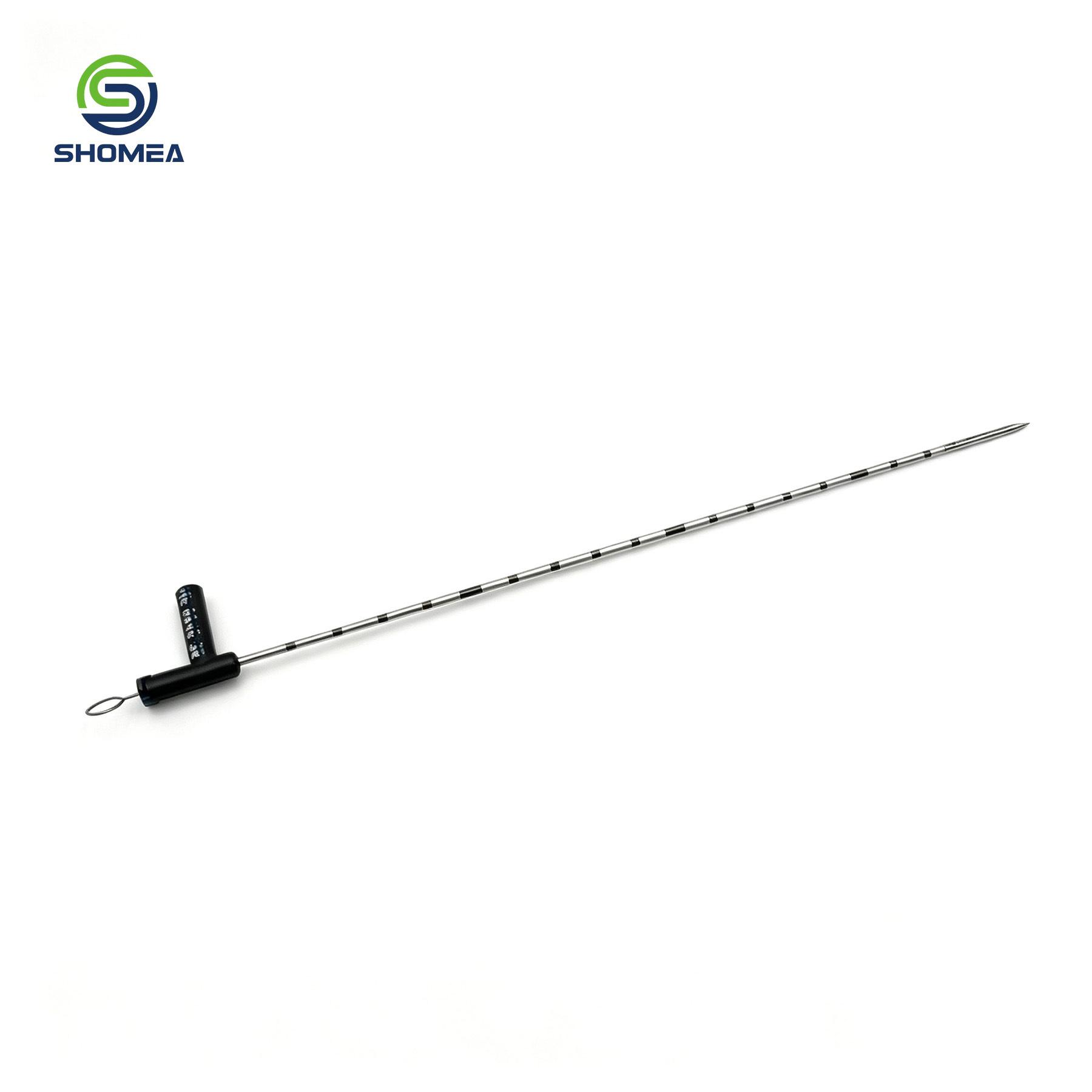

Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Customized Graduated Radiofrequency Ablation Puncture Needle
Specifications
MOQ :
10pcs
Delivery Time :
5-20days Or According To Quantity
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Model Number :
OEM
Price :
1-20USD
Certification :
ISO13485
Place of Origin :
CN
Supply Ability :
100000pcs/ month
Packaging Details :
Polybag, Carton, Wooden case or According to your request
Brand Name :
SHOMEA
Description

Customized Graduated Radiofrequency Ablation Puncture Needle

Products Name Customized Graduated Radiofrequency Ablation Puncture Needle
Material Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter 0.25-15mm
Tube wall Thickness 0.05-3mm
Meta Base Male and Female thread
Tolerance OD/ID±0.02mm L±0.05mm or According to Drawing
Size 3G-32G or Customized
LOGO Can be customized according to your drawing
Samples Usually provide 5-10pcs samples for testing before mass production
Delivery Time Usually 5-25days or according to quantity


Customized Graduated Radiofrequency Ablation Puncture Needle

Customized Graduated Radiofrequency Ablation Puncture Needle


Product Advantages:

  • Precision laser marking on needle shaft, standard tolerance up to ±0.02mm, clear scale for accurate depth control during operation.

  • Sharp piercing tip with complete deburring treatment, low penetration resistance and minimize tissue trauma.

  • Ergonomic T-type handle design, stable grip and easy operation for doctors. Stainless steel material provides good mechanical strength and corrosion resistance.

  • Needle diameter, total length, tip style and marking parameters can be fully customized according to customer drawings or samples.

  • Strict dimensional and visual inspection for each batch, stable batch consistency for minimally invasive surgical procedures.
FAQ:

Q1: What stainless steel grades are available for this radiofrequency ablation needle?
A1: We mainly supply medical grade 304 and 316L stainless steel. 316L is recommended for better corrosion resistance when contacting body fluid.

Q2: What surface finish is used for this radiofrequency ablation needle?
A2: We apply standard surface finish Ra0.8-1.0μm for this product. If you have special high polishing requirements, please inform us in advance for separate process evaluation and quotation.

Q3: Can we customize the scale marking and needle tip structure?
A3: Yes, marking interval, marking depth, needle diameter, total length and tip profile are customizable within our processing capacity under ±0.02mm tolerance. Please provide technical drawings for feasibility evaluation.

Q4: How do you control burrs on the piercing tip and laser marking area?
A4: After shaft cutting, tip forming and laser marking, multi-step deburring and cleaning procedures will be carried out. Each finished needle will be inspected to remove micro-burrs.

Q5: Can you provide custom samples? What information needs confirmation before sample production?
A5: Custom samples are available for function test. Before sample order, we need to confirm material grade, dimension parameters, marking requirement and surface finish. Sample cost depends on processing complexity, mass production can start after sample specification confirmation.
