High temperature resist and no oil leak Shock Absorber Piston with 6 square grooves

Specifications:

Description:

High temperature resistance, no oil leak, 4 square grooves design auto Shock Pistons

D29.5 * D8 * 18, Sintered Parts for shock piston

Our company produces different kinds of sintered parts. These sintered part include pistons, foot valve,

rod guider, valve base and so on.

Can band PTFE on outer diameter of pistons

Can do slide resistance test according to the customer's demand

Piston should slide down uniformity both in positive and contrary direction, no Damping stagnation

Test velocity is 3mm/min, Static strength damage: 11.27KN

Radial crushing strength>5000N

Net weight is 38.16g

Properties of sintered parts

Material: MPIF FC-0205

Density: Not less than 6.8g/cm3

Hardness: 60-100 HB

Steam treatment: 2H high temp steam holding time

Thickness of Fe3O4: 0.004-0.005mm

Die tooling design and making in house

Ultrasonic clearing and auto de-burring

Material Available and Chemical Composition:

P/M Copper and Copper Alloys

P/M Iron and Carbon Steel

Iron and Carbon Steel

Iron-Copper and Copper Steel

Iron-Nickel and Nickel Steel

Low Alloy Steel

Commix Low Alloy Steel

Sinter Hardened Steel

Diffusion Alloyed Steel

Copper Infiltrated Iron and steel

The sintered part has the following major advantages:

(A) High precision due to mold- Based production.

(B) Low price due to its inherent feature of automation for mass production

(C) Flexibility of material composition due to wide variety of powder formula on Fe- Cu- Ni alloy

Materials of PTFE disc:

1. PTFE+BRONZE

2. PTFE+CARBON FIBER

3. PTFE+GLASS FIBER

4. OTHER FILLERS or other material according to customer’s demand

Applications:

In car or motorbike front or rear shock absorbers

Competitive Advantage:

1. Consistency in size.

2. Infrared ray detect the out diameter in automatic banding machines

3. Produce PTFE disc by Xia Yi, can control the quality itself.

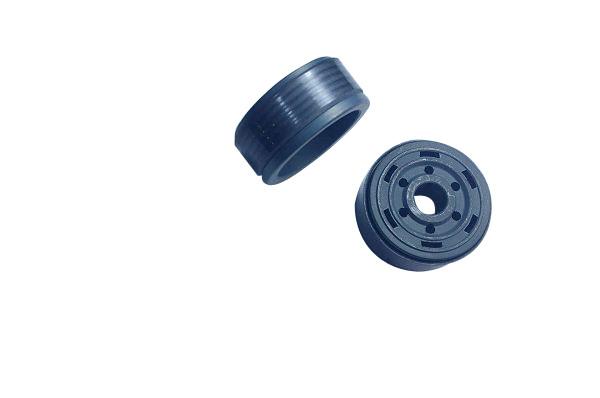

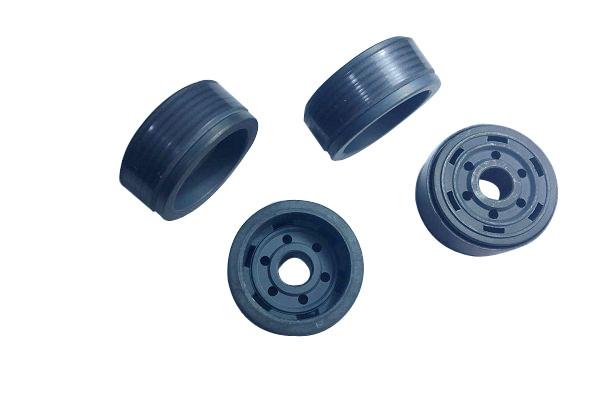

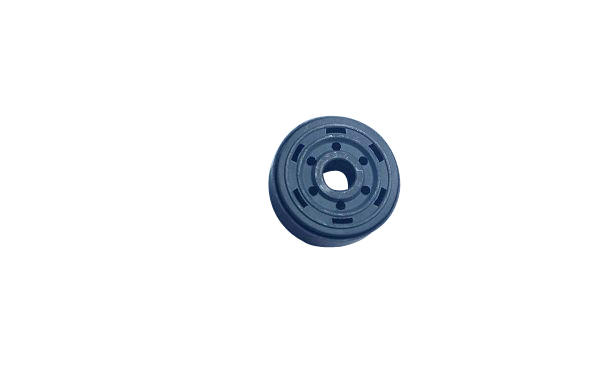

Picture show:
