Specifications
Product Name :
Shock Piston
Density of sinter piston :
More than 6.5g/cm3
Hardness of bands :
HRB60
Hardness of sinter piston :
HRB80
Application :
Car shocks
Density of bands :
2.06-2.19 g/cm3
Outer diameter :
30.05mm
Net weight :
35.40g
Brand Name :
XIAYI
Model Number :
Φ30mm
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
5,000pcs
Price :
Quote according to drawings or samples
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
30,000pcs per day
Delivery Time :
Two weeks after payment
Packaging Details :
Packed in carton and then reinforced with wooden case for outer packing
Description

Breakaway testing shock piston with PTFE bands and hoganas powder with good properties

XIAYI company mainly produce different kinds of shock absorber pistons, dimensions from 20MM～50MM,

can be used in motorcycle or car’s shock absorbers. Based on powder metallurgy material, banded filled

PTFE discs outside, has the advantages of low friction and good wear resistance.

Specifications:

Physical performance for shock piston

tensile strength

More than 18MPa

elongation @ break

More than 160%

shore hardness

57 - 62

density

2.06 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.2

attrition

Less than 10mg

Description:

Dimension: D30.05XD8.02X10.5

Multiple-twin oil holes design,

No scratch & crack on banded surface

Net weight is 35.40g

Density: powder metallurgy parts no less than 6.8g/cm3, filled PTFE material is 2.06-2.19 g/cm3

Hardness: powder metallurgy parts is 65HRB

filled PTFE sample block(shore hardness) is 60

Steam treatment: 2H high temp steam holding time Thickness of Fe3O4: 0.004-0.005mm

Die tooling design and making in house

Applications:

Normally used in different kinds of cars such as passenger car, truck, lorry, racing car

Competitive Advantage:

Xia Yi own two sets of automatic powder blending machine, can produce PTFE rings in house.

Xia Yi has ability to design and manufacture non-standard testing machine and automatic banding

machine.

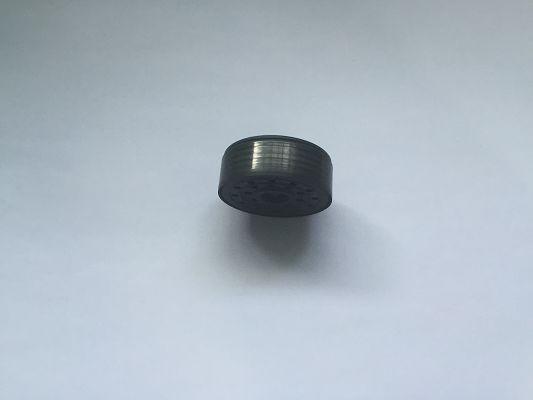

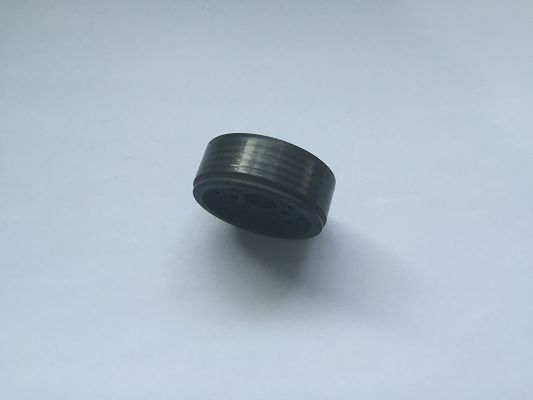

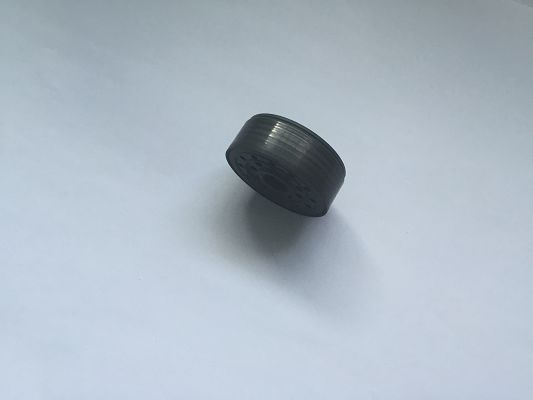

Picture show:

Breakaway Testing Shock Piston With PTFE Bands And Hoganas Powder , Shock Absorber Repair Parts

Breakaway Testing Shock Piston With PTFE Bands And Hoganas Powder , Shock Absorber Repair Parts
