PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber
PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber
PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber
PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber
PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber
PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber
PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber
PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber
Specifications
Brand Name :
XIAYI
Model Number :
Φ31mm
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
2,000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
300,000pcs per month
Delivery Time :
One week after payment
Packaging Details :
According to customer’s demand
Product Name :
Banded Piston
Filler of bands :
Carbon fiber
Material of bands :
Filled PTFE
Color :
black
Application :
car shock absorber
Density of bands :
2.14 g/cm3
Outer diameter :
31mm
Working Temp. :
260 ℃
Description

PTFE Banded Sinter Piston With Hardness 65HRB Of Steam Treatment For Shocks

Our company produce shock absorber pistons with variety types and sizes. These shock absorber

pistons can be used in different shock absorbers such as Nissan, Hyundai, Buick and so on.

We have a strong team to research and develp automatic machines, the annual capacity can reach more

than 20, 000, 000 pcs.

Specifications:

Details for shock piston

many holes for oil bleed

lip design can according to the customer's demand

good seals of PTFE material

horn mouth design for piston

in-house tooling making: EDM, wire cutting machine

custom metallurgical properties

design and sale all types of pistons

wear and corrosion resistance

Description:

D31XD7.1X14

Sinter Material similar as F50-U3-64
C: 0.6-0.9%

Cu:1.5-3.9%

Density more than 6.4g/cm3

Hardness for sinter parts: HRB70-90

We can use the following material to produce PTFE discs:

We can add bronze powder or carbon fiber or graphite or other fillers in PTFE


Lip design: We can design no lip, single lip or double lip according to the customer’s demand.

Xia Yi produces shock absorber pistons with many different types. These pistons can be used in front or

rear shock absorbers.

We have a strong technical team to research and develop automatic skirting machines. Only need to put

PTFE discs and sinter pistons on table, the machine will do the job to combine them together and finally

get the finished PTFE banded pistons.

Applications:

Car or motorbike shock absorbers

Competitive Advantage:

Unique material for shock piston bands

Pistons are produced by automatic banding machine can assure the consistency of the size

Complete testing equipment

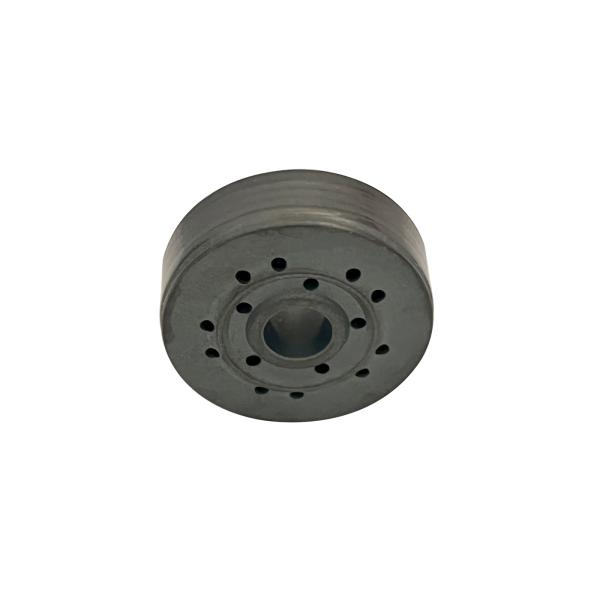

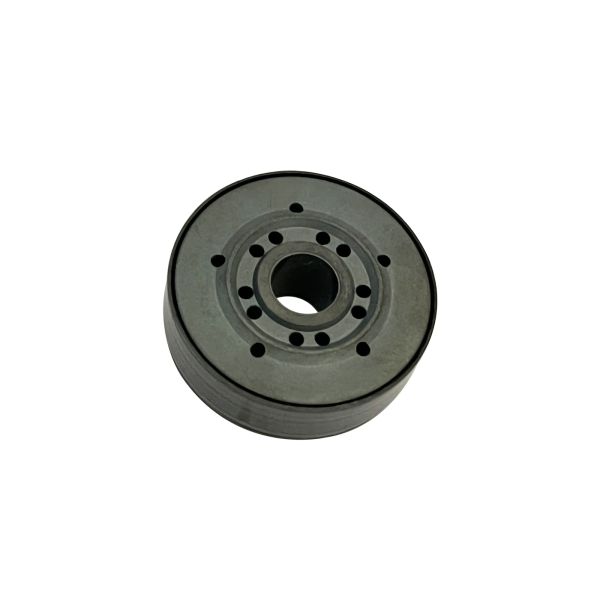

Picture show:

PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber

PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber
