Manufacturer XY Motorized Microscope Stage USB Integrated Power for Bio Image Stitching MSS-A-YZ9171
Manufacturer XY Motorized Microscope Stage USB Integrated Power for Bio Image Stitching MSS-A-YZ9171
Manufacturer XY Motorized Microscope Stage USB Integrated Power for Bio Image Stitching MSS-A-YZ9171
Manufacturer XY Motorized Microscope Stage USB Integrated Power for Bio Image Stitching MSS-A-YZ9171
Manufacturer XY Motorized Microscope Stage USB Integrated Power for Bio Image Stitching MSS-A-YZ9171
Manufacturer XY Motorized Microscope Stage USB Integrated Power for Bio Image Stitching MSS-A-YZ9171
Manufacturer XY Motorized Microscope Stage USB Integrated Power for Bio Image Stitching MSS-A-YZ9171
Manufacturer XY Motorized Microscope Stage USB Integrated Power for Bio Image Stitching MSS-A-YZ9171
Manufacturer XY Motorized Microscope Stage USB Integrated Power for Bio Image Stitching MSS-A-YZ9171
Manufacturer XY Motorized Microscope Stage USB Integrated Power for Bio Image Stitching MSS-A-YZ9171
Manufacturer XY Motorized Microscope Stage USB Integrated Power for Bio Image Stitching MSS-A-YZ9171
Manufacturer XY Motorized Microscope Stage USB Integrated Power for Bio Image Stitching MSS-A-YZ9171
Specifications
Maximum load :
5Kg
Model Number :
MSS-A-YZ9171
Minimum step size :
1.25μm
Price :
$2,150-2,240
Accuracy :
other
place of origin :
Shanghai, China
Delivery Time :
2-4work days
Weight :
1.5KG
customized support :
OEM, ODM
Payment Terms :
T/T
Bidirectional repeatability accuracy :
≤ 4μm
warranty :
1 Year
Route or distance of travel :
80mm(X) * 60mm(Y)
Maximum speed :
20mm/s
Brand Name :
MSS
Unidirectional repeatability accuracy :
≤ 3μm
material :
other
Place of Origin :
Shanghai, China
MOQ :
1
Surface preparation :
Anodic oxidation
Description
This manual describes the hardware interfaces, operating instructions, and function
interfaces of the PS-STN-YZ9171 stage. Before use, please ensure you fully understand
the functions of the PS-STN-YZ9171 stage.

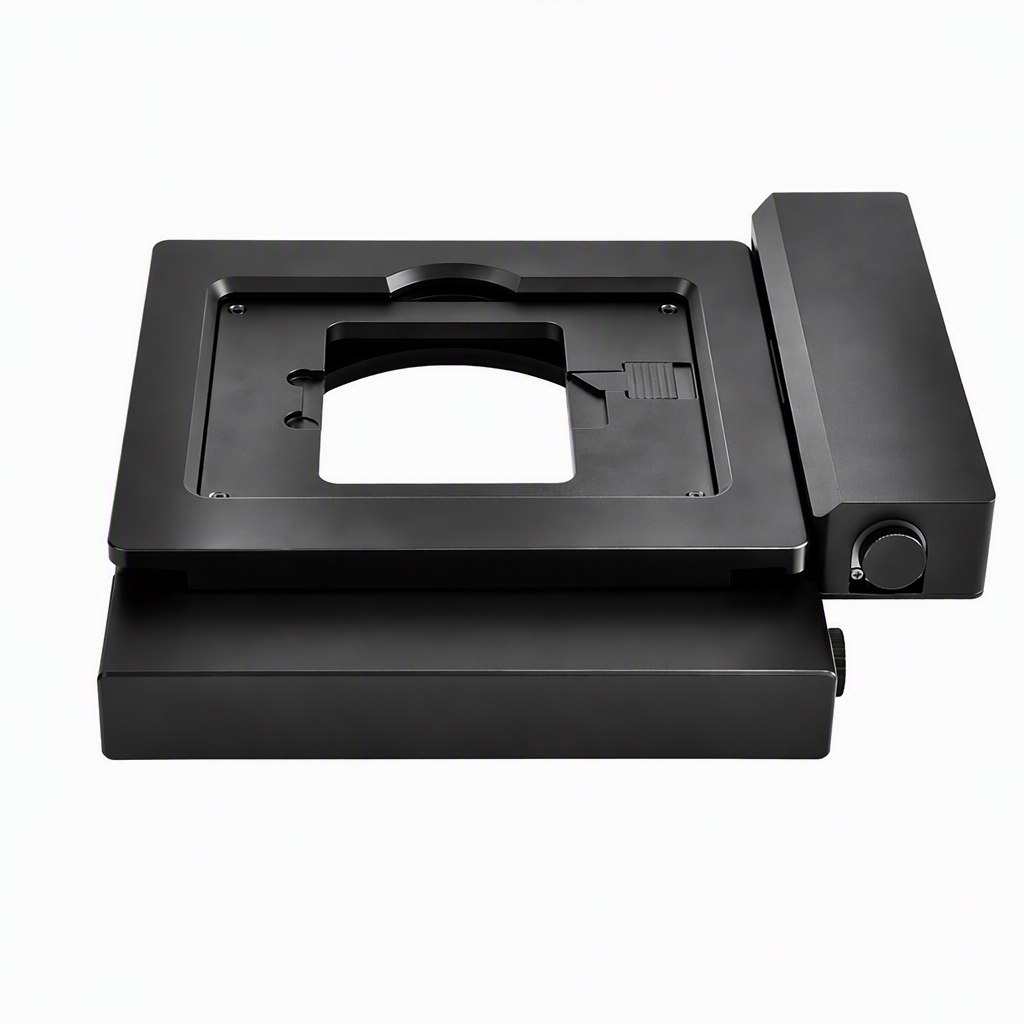

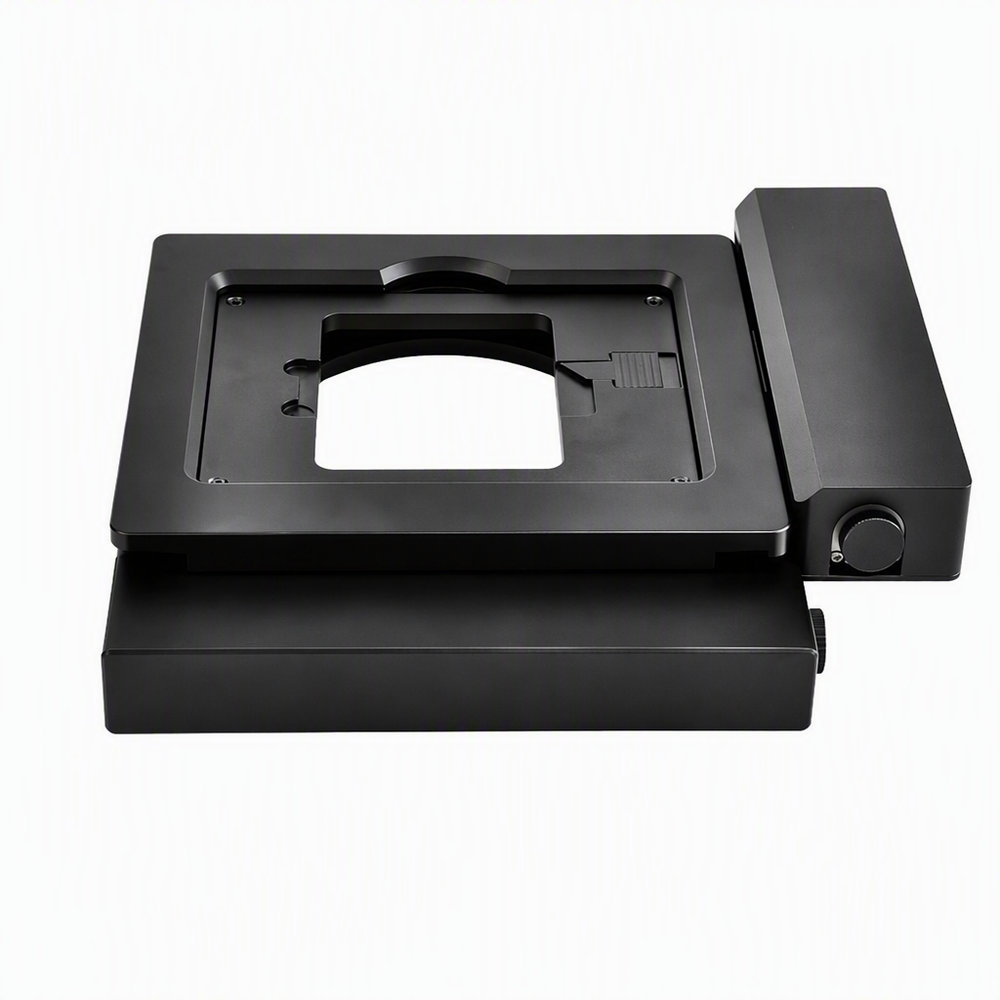

Figure 1: PS-STN-YZ9171 Stage

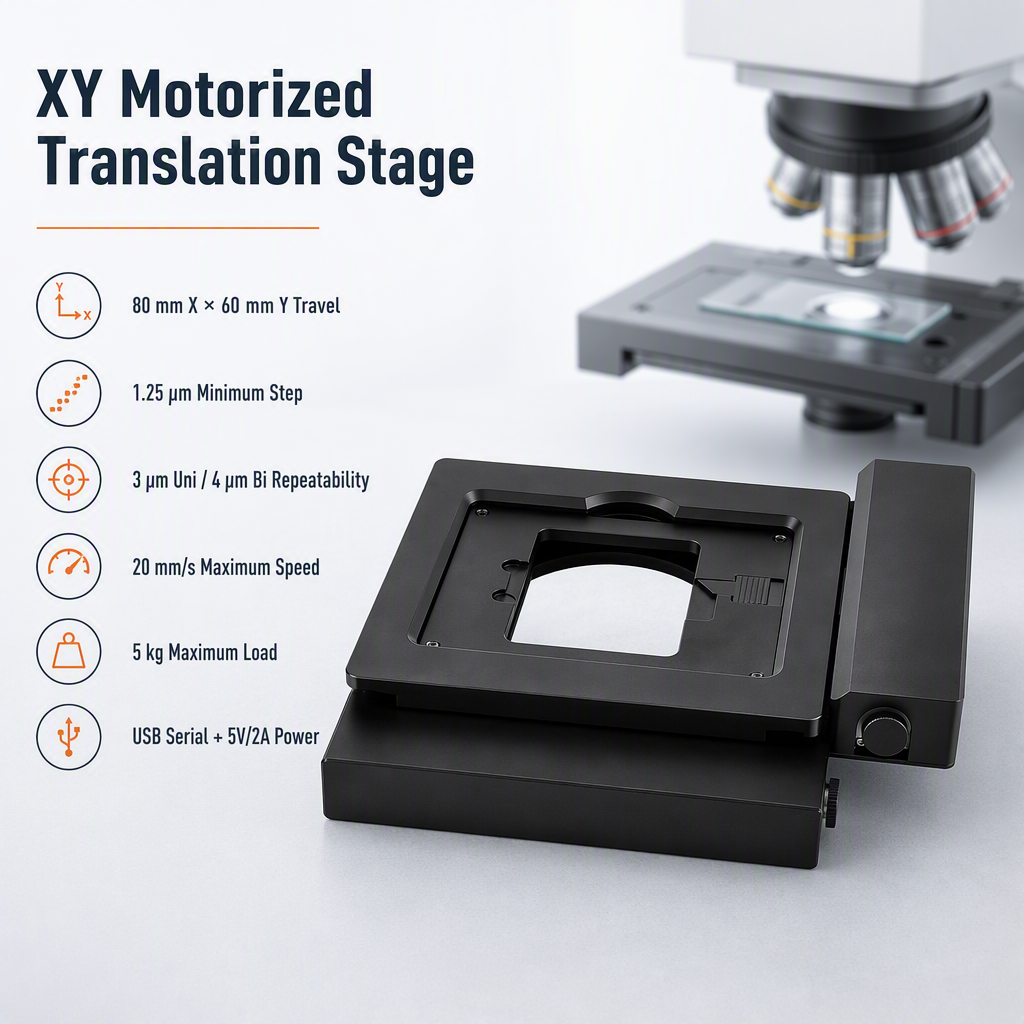

• 80 mm (X) × 60 mm (Y) standard travel – meets the requirements for large-area
microscope scanning
• Minimum step size: 1.25 μm; unidirectional repeatability: 3 μm; bidirectional repeatability:
4 μm
• Features a two-phase stepper motor, supporting maximum operating speeds of 20
mm/s
• Features a 1.5 kg aluminum alloy body with an anodized surface finish
• Supports a maximum load of 5 kg; compatible with various microscopic samples and
experimental apparatuses.
• Internal integrated opto-electronic limit switch provides hardware-level overtravel
protection.
• Maximum power consumption: 3.5 W; low-heat design

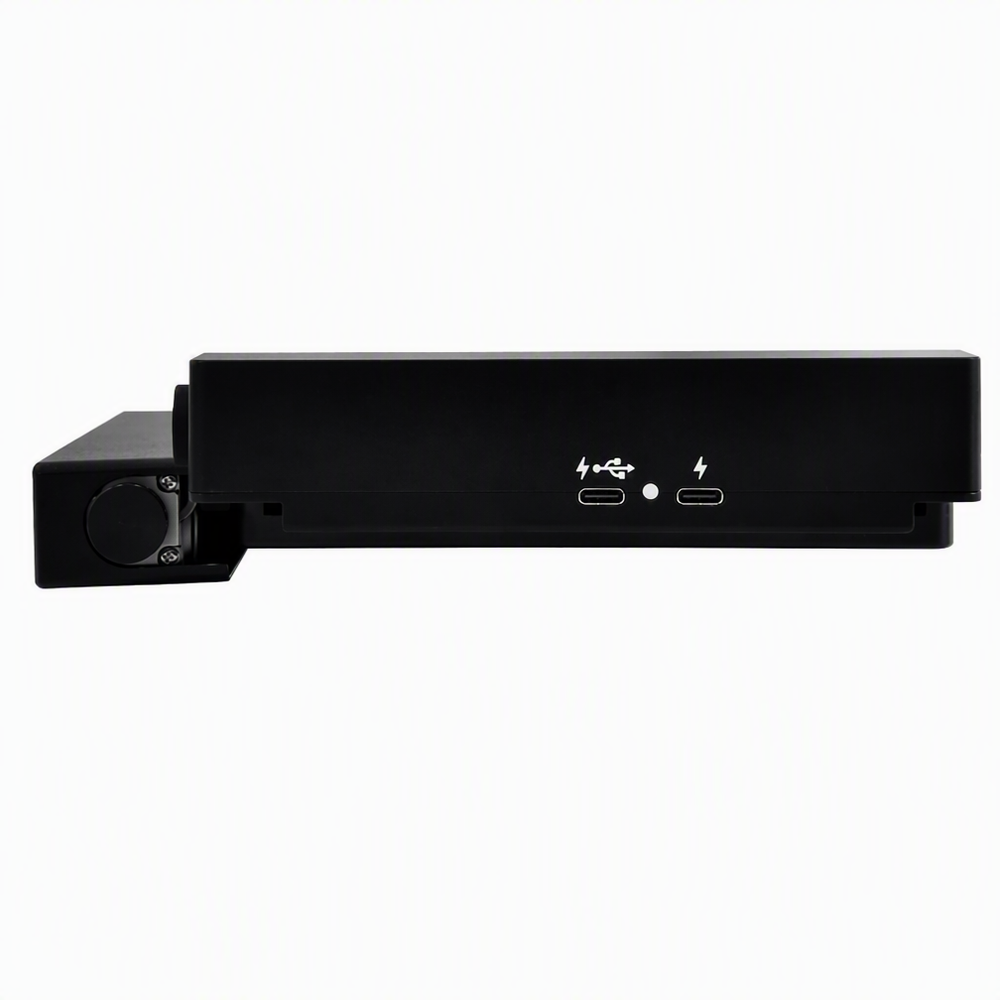

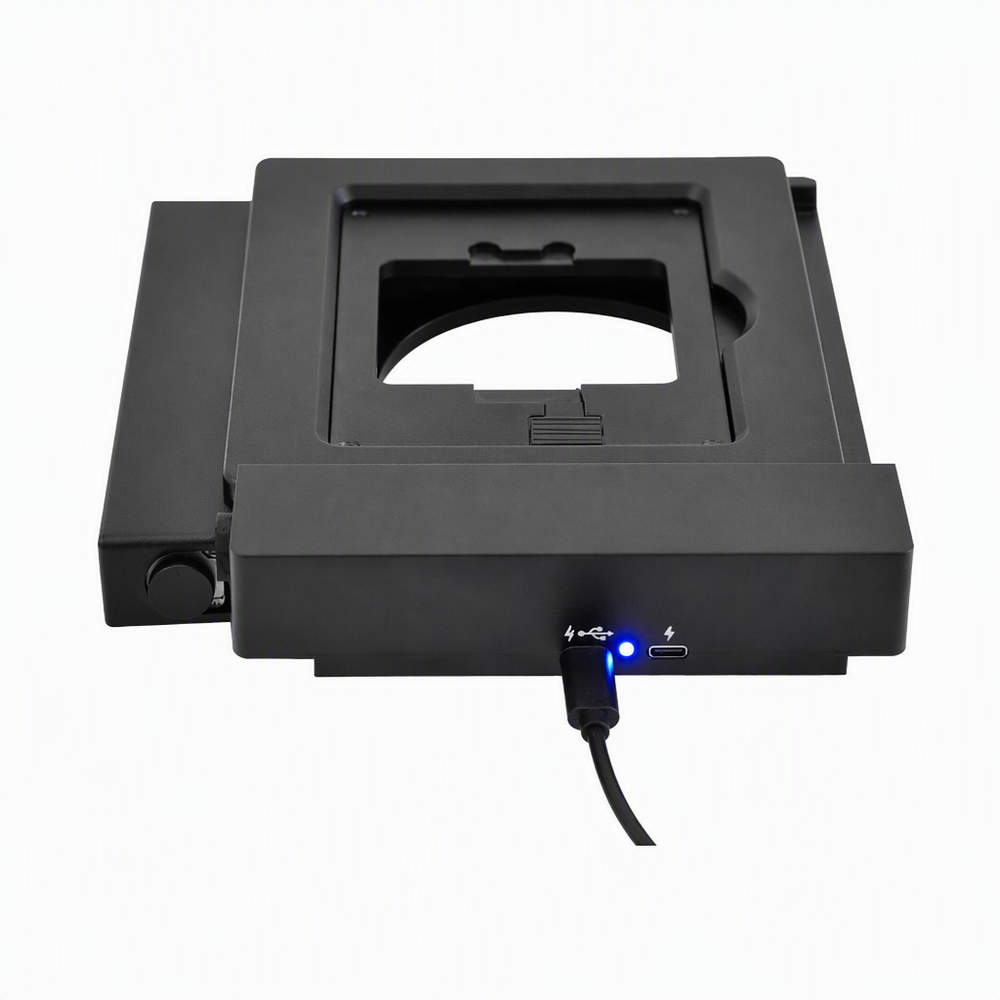

• Features a USB serial port with integrated 5V/2A power supply solution, facilitating
system integration and maintenance.

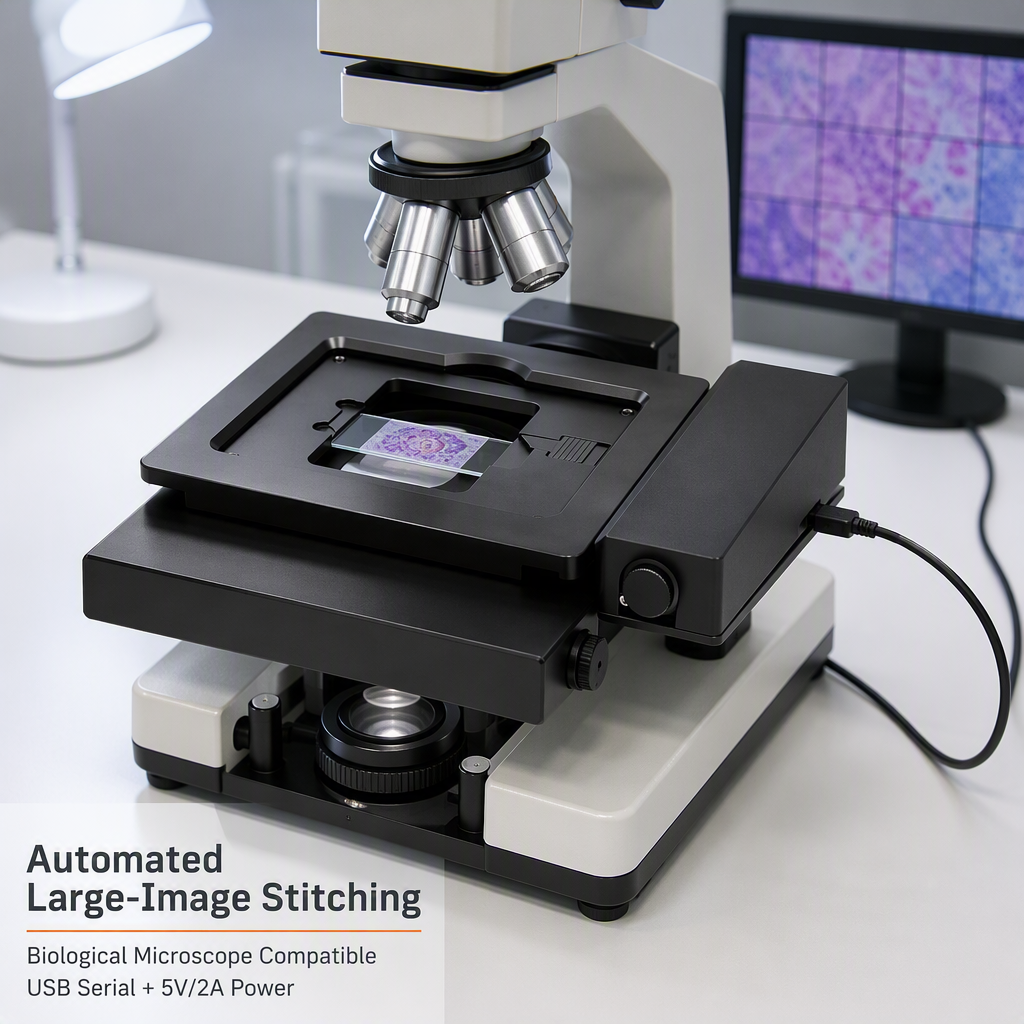

• Compatible with biological microscopes, supporting automated applications such as
large-image stitching.

 PS-STN-YZ9171 Stage User Manual
Main parameter
The main parameters of the PS-STN-YZ9171 stage are shown in the table below:
Parameter Tem Specific Parametersand Specifications
Product name PS-STN-YZ9171(XY Electric Stepping Stage)
Route or distance of travel 80mm(X)*60mm(Y)
Minimum step size 1.25μm
Unidirectional repeatability accuracy ≤3μm
Bidirectional repeatability accuracy ≤4μm
Maximum speed 20mm/s
Any power-generating or power-driven machine Two-phase stepper motor
Material Alufer
Surface preparation Anodic oxidation
Spacing Photoelectric switch
Maximum load 5Kg
Weight 1.5Kg
Supply electricity 5V2A
Maximum power dissipation
3.5W
