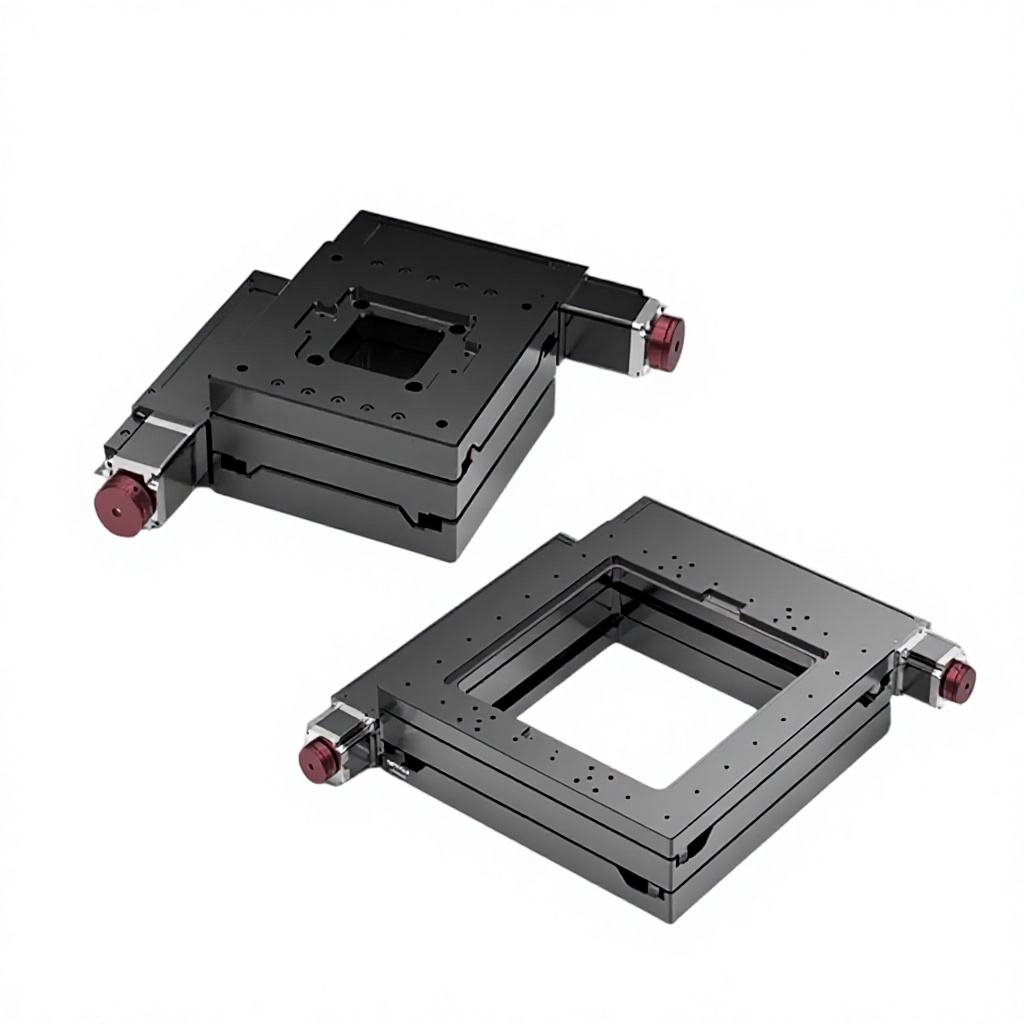

The overall design features a 2-axis orthogonal configuration, boasting high precision and a compact structure.

Driven by high-quality ball screws, it is suitable for applications demanding high precision and frequent use.

The combination of precision cross roller guide rails and high-precision sliding guide rails enables the product to operate smoothly under heavy loads. The center is designed with holes, and these transparent holes can be equipped with glass or aluminum alloy cover plates to meet various industrial applications.

The standard two-phase stepper motor can be replaced with a five-phase stepper motor or servo motor as needed. When the product is used vertically, the motor must be replaced with one equipped with a band brake.

This series is characterized by the integral 2-axis orthogonal design, high precision, and compact structure;
Driven by high-guality ball screws, it can be used in applications which reguire high precision and frequent use;
The precision cross-roller guides, combined with high-precision sliding guides, allow the product to run smoothly with a large load capacity; Apertures are designed at the center, and glass or aluminum alloy cover plates can be equipped for these clear aperturesinorder to satisfy a variety of industrial applications;
The two-phase stepping motor as a standard configuration can be replaced with the five-phase stepping motor or Servo Motor as required;
When the product is used vertically, the motor must be replaced with the one with a band-type brake.

The FQTE series of integral precision motorized 2-axis linear motion stages can realize the automatic adjustment of displacement on the X and Y axes using a stepping motor;
Five phase stepping motor or servo motor can be replaced according to actual usage requirements;

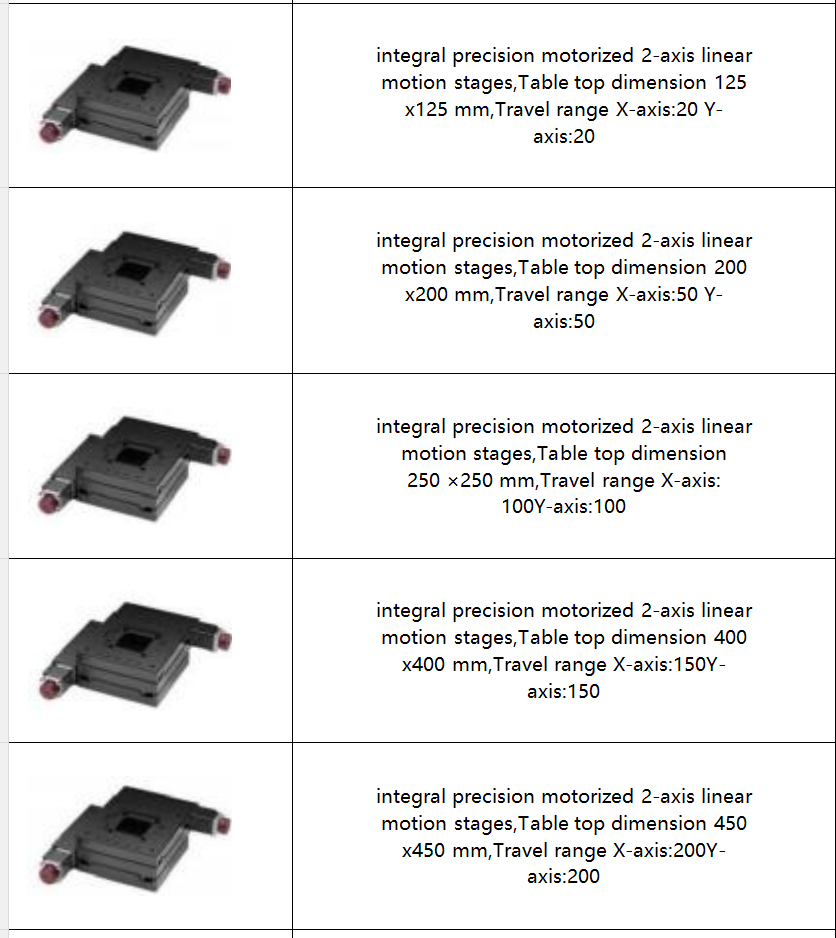

Travelrange20*20/50*50/100*100/150*150/200*200mmoptional; Apertures are designed at the center. Glass and fluorescent panels are optional for clear apertures to realize scanning and aligning observation requirements such as transmission, reflection, scattering.
