Specifications
Brand Name :
DOOWIN MARINE
Model Number :
CUB-1500
Certification :
BV, LR,ABS,ect.
Place of Origin :
China
MOQ :
1pc
Price :
USD $150~2900
Payment Terms :
T/T
Supply Ability :
10pcs/per week
Delivery Time :
2~3 weeks
Packaging Details :
Pallet or Plywooden Box
Name :
Self-Adjusting Marine Floating Chain Boat Anchor Buoy Float System for Sale
Brand :
DOOWIN
Color :
Yellow, Orange,ect.
Material :
PE/EVA closed cell foam +PU skin
Lifespan :
10 years
Advantages :
UV resistance, Abrasion resistance,Easy installation,ect.
Description

Self-Adjusting Marine Floating Chain Boat Anchor Buoy Float System for Sale

General surface chain support buoys are extensively used in single-point mooring (SPM) systems. The chain support buoys include cylindrical buoys, chain-through buoys, and pick-up buoys.General surface chain support buoys are extensively used in single-point mooring (SPM) systems. The chain support buoys include cylindrical buoys, chain-through buoys, and pick-up buoys.

General surface chain support buoys are constructed by resilient closed cell polyethylene /EVA foam around the inner central steelwork, covered by polyurethane (PU) outer kin. The resilient closed cell polyethylene/EVA foam core guarantees self-fendering and unsinkable even in case of damage. And self-colored polyurethane elastomer skin is resistant to abrasion and ultra violet rays degradation. For extreme service environment, the polyurethane elastomer skin can be reinforced by nylon to protective coating has higher tear strength, making the buoy long lasting and virtually maintenance free.

Marine Floating Chain Support Buoy Self Adjusting Boat Anchor Buoy Float System

Construction of Barral Mooring Buoys

General suface chain support cylindrical utility buoys are manufactured with high quality closed-cell PE/EVA resilient foam, encapsulated with self-colored tough polyurethane elastomer skin.

  • Tough reinforce polyurethane outer skin – General surface support buoy’s skin is constructed of polyurethane elastomer, which also can be reinforced with nylon filament. The polyurethane skin is unique elastomer specifically for offshore applications. It is high resistance to abrasion, fatigue and ultra voilet degradation and is significantly more durable.
  • Laminated closed cell resilient foam core, unsdinkable design – General sruface support buoys are made with highest quality closed-cell PE/EVA foam. This resilient foam make the buoys self fendering with high imptact absorption capacity. Even the skin was puntured, it also is unsinkable without absrbing water. With our unique laminating proecess, each foam core is integrity. The foam core cannot be reputured after long time sevice.
  • Steel work and end assembly – Through central steel tube with longtitudinal guessets and external load distribution flanges at each end, epoxy coated or hot-dipped galvanized, are encased in a closed-cell urethane foam central body. Opetional bail eye, clevis eye, swivel, chain locking plate, single locking pin end fitting are availble.

Cylindrical Utility Buoys Specification
Cylindrical foam-filled chain support buoys ranging from 1 Ton to 4 Tons (or more) – Fitted on each end with mooring pad eye or swivel or mixed depending on use.

Type

Length

(mm)

Overall Length

(mm)

Diameter

(mm)

Weight

(kg)

Net Buoyancy

(kg)

Net Buoyancy

(lbs)

CUB-1000

1500

2100

1080

375

1000

2222

CUB-1250

1550

2100

1160

380

1250

2778

CUB-1500

2000

2500

1130

445

1500

3333

CUB-1700

2000

2500

1180

455

1700

3778

CUB-1750

2000

2500

1190

460

1750

3889

CUB-1850

2000

2500

1230

470

1850

4111

CUB-2000

2000

2500

1290

485

2000

4445

CUB-2250

2000

2500

1340

500

2250

5000

CUB-2500

2000

2500

1400

515

2500

5556

CUB-2800

2000

2500

1510

595

2800

6222

CUB-3000

2000

2500

1520

550

3000

6667

CUB-3200

2000

2500

1560

560

3200

7111

CUB-3500

2000

2500

1630

580

3500

7778

CUB-3900

2000

2500

1705

605

3900

8667

Detailed Photos

Marine Floating Chain Support Buoy Self Adjusting Boat Anchor Buoy Float System

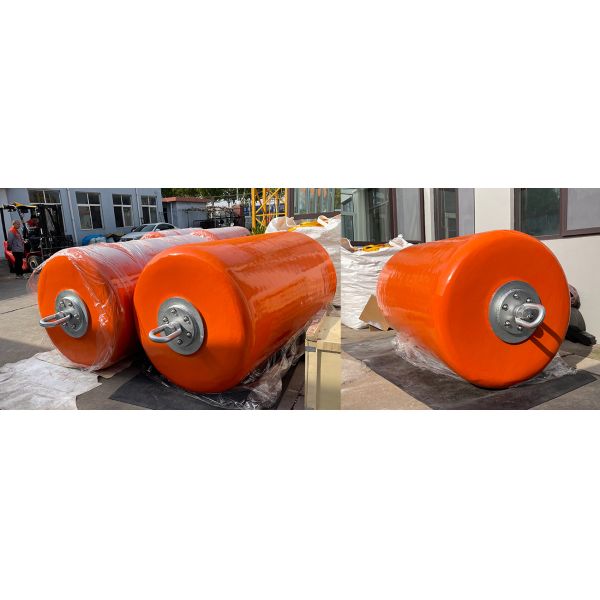

General Surface Buoys of various shapes and with different end fittings

Marine Floating Chain Support Buoy Self Adjusting Boat Anchor Buoy Float System
