General Surface Pick-up Type Chain Support Foam Buoy
General Surface Pick-up Type Chain Support Foam Buoy
General Surface Pick-up Type Chain Support Foam Buoy
General Surface Pick-up Type Chain Support Foam Buoy
General Surface Pick-up Type Chain Support Foam Buoy
General Surface Pick-up Type Chain Support Foam Buoy
General Surface Pick-up Type Chain Support Foam Buoy
General Surface Pick-up Type Chain Support Foam Buoy
General Surface Pick-up Type Chain Support Foam Buoy
General Surface Pick-up Type Chain Support Foam Buoy
General Surface Pick-up Type Chain Support Foam Buoy
General Surface Pick-up Type Chain Support Foam Buoy
Specifications
Brand Name :
DOOWIN MARINE
Model Number :
PUB
Certification :
BV, CCS, LR, DNV
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T
Buoys Type :
Pick-up Type
Application :
Chain Support Buoys
Water Depth :
Sea Surface
Accessories :
End H.D.G Swivels
Color :
Orange, Yellow, Black
Foam Material :
Closed-cell PE Foam
Packaging Details :
Pallet or Plywooden Box
Delivery Time :
2~3 weeks
Supply Ability :
10pcs/per week
Description

Pick-up Type General Surface Chain Support Foam Buoys

DOOWIN MARINE General Surface Support Buoys feature a polyethylene thermolaminated foam core encased in a self-colored polyurethane outer layer with internal steel components. The resilient closed-cell foam core ensures water resistance even if the outer layer is damaged, effectively extending service life and reducing maintenance costs. The tough material offers excellent impact absorption and self-fendering capability.
The durable polyurethane elastomer exterior maintains stable coloration, resists marine growth, and provides abrasion and UV degradation resistance. It can be reinforced for enhanced strength in extreme operating conditions. The standard range includes buoys from 9kg markers to 6,000kg+ heavy-duty chain support models.
Key types of Chain Support Buoys include:
Cylindrical Buoy (CB): Equipped with removable clevis plate or lifting eye, with central tension member engineered to match client's Safe Working Load (SWL).
Chain-Through Buoy (CTB): Features central tube for chain passage, with chain locking devices on one or both ends to secure the buoy to the chain.
Pick-Up Buoy (PU): Designed for versatile applications including mooring, marking, and pick-up operations.

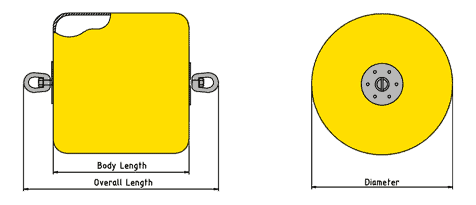

Pick-up Type General Surface Chain Support Foam Buoys Specification

General Surface Pick-up Type Chain Support Foam Buoy

Type

Length

(mm)

Overall Length

(mm)

Diameter

(mm)

Weight

(kg)

Net Buoyancy

(kg)

Net Buoyancy

(lbs)

PUB-90

660

1000

515

42

90

200

PUB-225

910

1570

690

120

225

500

PUB-400

910

1570

900

155

400

889

PUB-800

910

1570

1150

180

800

1778
