24"–48" Cast Steel Kevel Chocks | Mooring & Barge Coupling, ASTM A27 Material

Product Overview

Cast steel kevel chocks are deck-mounted mooring fittings used to guide and secure mooring lines.

Manufactured from ASTM A27-70-36 cast steel, the structure is verified by finite element strength analysis and load testing.

The design minimizes rope bending stress and extends service life of synthetic mooring lines.

Surface is smoothly ground to protect ropes and ensure safe operation.

Quick Specifications

• Size Range: 24–48 inch → Defines rope handling capacity
• Material: ASTM A27-70-36 Cast Steel → High strength & toughness
• Verification: FEA + Load Test → Ensures structural reliability
• Inspection: MT → Detects surface defects
• Heat Treatment: Yes → Improves mechanical properties
• Surface: Smooth grinding → Protects rope from damage
• Coating: Shop primer or bare → Flexible delivery condition
• Casting Process: Controlled → Ensures consistent quality

Main Technical Parameters

Selection Guide

Step 1 – Select Size → 24–48 inch based on rope diameter

Step 2 – Confirm Mooring Load → Match vessel requirement

Step 3 – Confirm Surface Treatment: shop primer paint or bare

Step 4 – Confirm Certification & Testing → Which certificate + load test + MT

Structure & Components

Cast steel body | Open throat | Reinforced section | Smooth ground surface

Custom Attributes

• Material: ASTM A27 → Strength & durability
• Process: Heat treated → Improved mechanical properties
• Inspection: MT → Surface defect detection
• Verification: Load tested → Proven strength
• Surface: Grinding Smoothly → Rope protection
• Coating: Primer / bare → Flexible delivery
• Casting: Metal mold / wooden pattern / lost foam → Process options
• Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Inquiry Guide

Provide size, load requirement, certification requirement, and coating requirement.

How It Works

The rope passes through the kevel opening, guiding direction while minimizing wear and stress.

Applications

Ship mooring | River ship| Heavy-duty rope guiding

Certifications & Advantages

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate; FEA verified strength, load tested, controlled casting process, smooth surface for rope protection.

Drawing & Photos

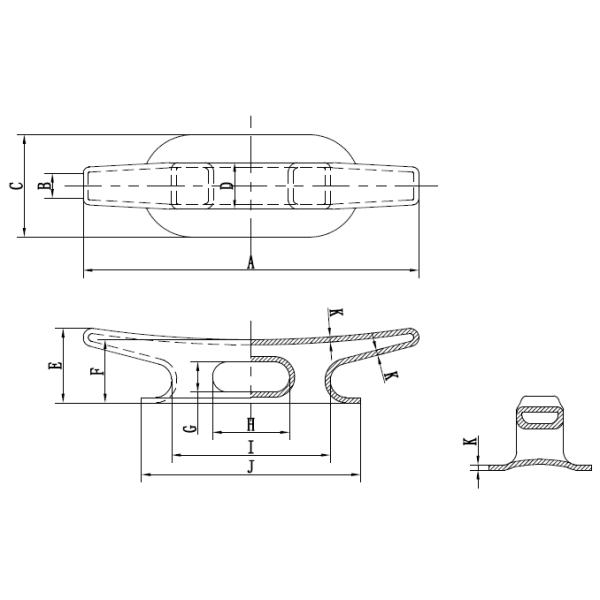

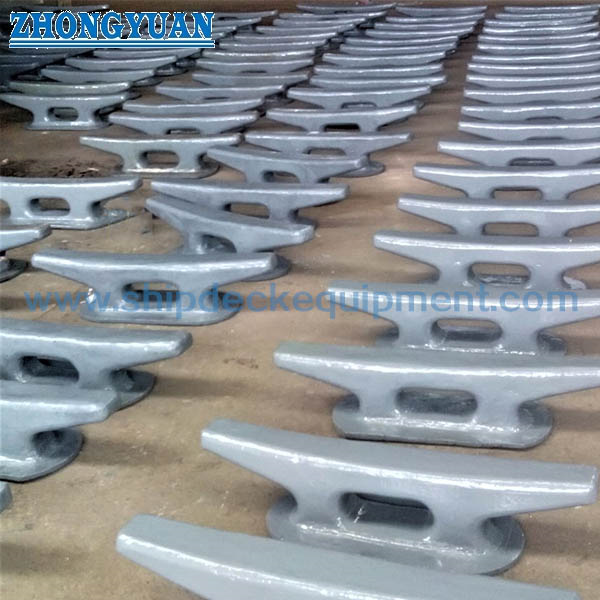

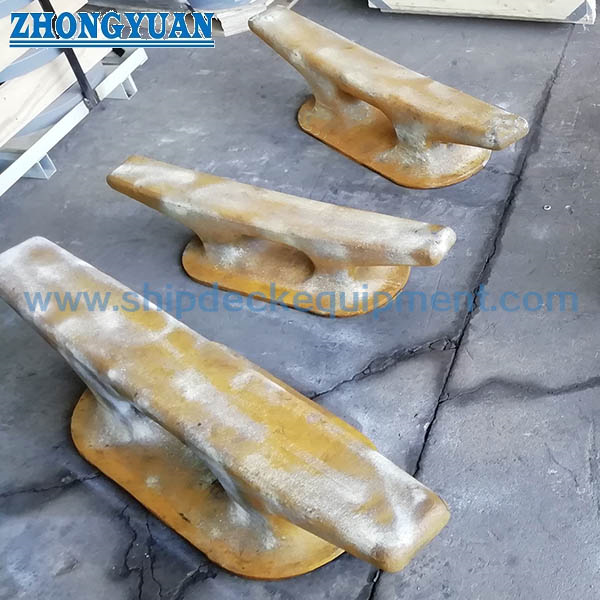

GA drawing | Product photos

Ordering

MOQ: 1 Unit | Delivery Time: 60-80 Days | Customization Available

FAQ

Q1: How is structural strength verified?

A: By finite element analysis and load testing to ensure reliability.

Q2: What casting quality controls are applied?

A: Strict material selection, controlled drying, heat treatment, and inspection.

Q3: Why avoid low-cost casting products?

A: Poor materials and improper heat treatment lead to unreliable strength and shorter service life.
