Specifications
Place of Origin :
China
Brand Name :
Zhongyuan Marine Equipmen
Certification :
CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Model Number :
Standard or Customized
MOQ :
1 Unit
Price :
Based on quotation
Packaging Details :
Export standard pallet or customized packing
Delivery Time :
Based on project requirements
Payment Terms :
T/T, L/C
Supply Ability :
Customized production based on project requirements
Power :
Electric or Manual
Working Temperature :
-20 to 50℃ Etc
Surface treatment :
sandblasting to S2.5 + 3 layers of epoxy paint, Galvanized
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc
Description

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

Description:

Electric trolley crane is used in the engine room, pump room, hangar, etc.. It is either electric or manual operate. We make trolley with good quality. We can provide all the IACS class certificate.

Main Technical Specifications:

  1. Power: Electric or Manual
  2. Working Temperature: -20 to 50℃ Etc.
  3. Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
  4. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.

Main Technical Parameters:

SWL
(Ton)

Working

Radius
(m)

Horizontal Traveling

Speed

(m/min)

Hoisting

Speed
(m/min)

Motor

Power
(kw)

Rail Track Radius

(m)

 Power Supply
　0.5 2-18 6 8 0.2/0.8 1

AC380V, 50HZ 3PH

AC415V 50HZ 3PH

AC440

60HZ 3PH
　1 2-30 6 8 0.4/1.5 1.2
　2 2-30 6 8 0.4/3 1.5
　3 2-30 6 8 0.8/4.5 2.5
　5 2-30 6 8 0.8/7.5 2.5
10 2-30 6 8 1.5/13 3

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

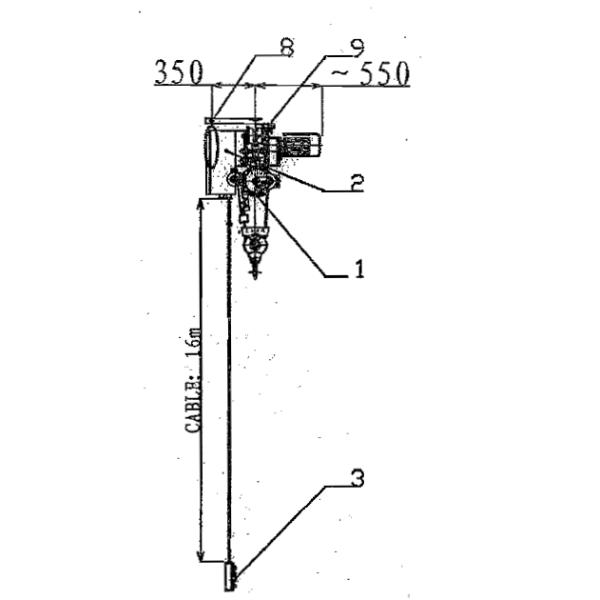

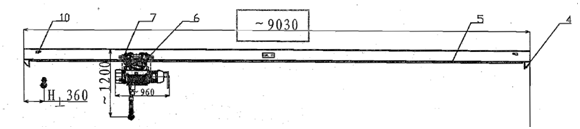

Drawing of Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment
