Electric Vertical Anchor Capstan For Hoisting Anchor Chain Ship Deck Equipment
Electric Vertical Anchor Capstan For Hoisting Anchor Chain Ship Deck Equipment
Electric Vertical Anchor Capstan For Hoisting Anchor Chain Ship Deck Equipment
Electric Vertical Anchor Capstan For Hoisting Anchor Chain Ship Deck Equipment
Specifications
Wire Rope Dia :
11 - 46 (mm)
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc
Material :
Stainless Steel (Polished), Mild Steel，Casting
Warping Head Diameter :
200-700 mm
Brand Name :
Zhongyuan Marine Equipmen
Warping Speed(m/min) :
9-18m/Min
Price :
Based on quotation
Packaging Details :
Export standard pallet or customized packing
Model Number :
Standard or Customized
Delivery Time :
Based on project requirements
Supply Ability :
Customized production based on project requirements
Payment Terms :
T/T, L/C
Working Load :
5KN to 250KN
Certification :
CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Power :
Electric
Place of Origin :
China
Control :
Local or Remote Control
Function :
Mooring & Hoisting Anchor
MOQ :
1 Unit
Description

Electric Vertical Anchor Capstan For Hoisting Anchor Chain Ship Deck Equipment

Description:

The capstan is suitable for ship mooring and hoisting anchor chain. It includes hydraulic motor, gear box, valve block, warping head, gypsy, brake and clutch, electric switchboard.

Main Technical Specification:

1. Function: Mooring & Hoisting Anchor

2. Working Load: 5KN to 250KN

3. Warping Head Diameter: 200-700 mm,

4. Warping Speed(m/min):9-18m/Min

5. Wire Rope Dia. 11 - 46 (mm)

6. Material: Stainless Steel (Polished), Mild Steel, Casting

7. Power: Electric

8. Control: Local or Remote Control

9. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.

Main Technical Parameters:

Chain Dia.

(mm)

 Working Load (KN) Nominal Speed (m/min) ≥ Warping Load (KN) Motor Power (KW)
AM2 AM3 Electric Hydraulic
12.5 6.6 14.6 9 5 2.2/0.75 2.2
14 8.3 17.2 9 6 2.2/0.75 3
16 10.9 20 9 8 2.2/0.75 4
17.5 13 14.6 9 10 3/1.3 4/5.5
19 15.3 17.2 9 10 4.3/1.7 5.5
20 17.9 20 9 15 4.3/1.7 5.5/7.5
22 20.6 23 9 15 6/2.5 7.5
24 24.5 27.4 9 20 8.5/3.5 7.5/11
26 28.7 32.1 9 20 8.5/3.5 11
28 33.3 37.2 9 25 8.5/3.5 11
30 38.3 42.8 9 30 11/11/7.5 15
32 43.5 48.6 9 30 11/11/7.5 15
34 49.1 54.9 9 40 16/16/11 15/8.5
36 55.1 61.6 9 40 16/16/11 18.5
38 61.4 68.9 9 50 16/16/11 18.5/22
40 68 76 9 60 22/22/16 22/30
42 75 83.8 9 60 22/22/16 22/30
44 82.3 92 9 70 22/22/16 30
46 89.9 100.5 9 80 30/30/22 30
48 97.9 109.4 9 80 30/30/22 30/37
50 106.3 118.8 9 90 30/30/22 37
52 114.9 128.4 9 100 30/30/22 37/45
54 123.9 138.5 9 100 45/45/30 45
56 133.3 149 9 120 45/45/30 45
58 143 159.8 9 120 45/45/30 45/55
60 153 171 9 140 45/45/30 55
62 163.4 182.6 9 150 45/45/30 55
64 174.1 194.6 9 160 60/60/45 55/75
66 185.1 206.9 9 160 60/60/45 75
68 196.5 219.6 9 180 60/60/45 75
70 208.3 232.8 9 200 60/60/45 75

Electric Vertical Anchor Capstan For Hoisting Anchor Chain Ship Deck Equipment

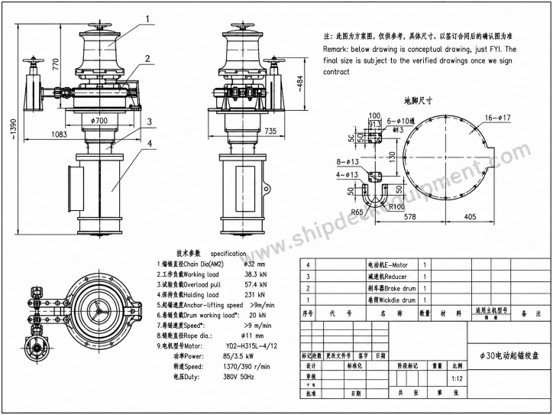

Drawing of Electric Vertical Anchor Capstan For Hoisting Anchor Chain Ship Deck Equipment

Electric Vertical Anchor Capstan For Hoisting Anchor Chain Ship Deck Equipment
