12.5–114mm Electric Anchor Windlass with Double Drum & Warping Head | Marine Anchor Handling System

Product Overview

The electric anchor windlass system is primarily designed for anchor chain handling operations on marine vessels.

It integrates a gypsy wheel for anchor chain control and a drum/warping head for auxiliary mooring rope operations.

The system ensures safe anchoring through controlled lifting, lowering, and braking of anchor chains.

This system is primarily designed for anchor chain handling, with auxiliary mooring capability via drum and warping head.

Quick Specifications

• Anchor Chain Size: 12.5–114 mm

• Anchor Chain Pull: 5.9–617 kN

• Brake Holding Load: 30–4228 kN

• Chain Speed: 9 m/min

• Warping Head Pull: 5–350 kN

• Motor Power: 3–200 kW

• Drive Type: Electric

• Configuration: Single gypsy + double drum + warping head

• Chain Grade: U2 / U3

• Control: Local / Remote

Main Technical Parameters(smiplified)

Selection Guide

Step 1 – Select Chain Size | Step 2 – Match Anchor Chain Pull | Step 3 – Confirm Brake Holding Load | Step 4 – Select Warping Pull | Step 5 – Confirm Drive Type | Step 6 – Select Configuration | Step 7 – Installation Layout

Structure & Components

Structure & Components: Electric motor | Gearbox | Gypsy wheel (chain handling) | Double drum (rope handling) | Warping head | Brake system | Clutch system | Chain stopper | Control panel | Base frame

Custom Attributes

Chain Size | Chain Pull | Brake Load | Warping Pull | Drive Type | Configuration | Control

Custom Configuration & Inquiry Guide

Chain Size | Chain Grade | Pull | Brake Load | Warping Requirement | Control System | Installation Requirement

How It Works

The electric motor drives the gearbox to rotate the gypsy wheel for anchor chain handling.

The anchor is raised or lowered via the gypsy, while braking and clutch systems ensure safe operation.

The drum and warping head provide auxiliary rope handling functions.

Applications

Anchor handling operations | Ship anchoring systems | Commercial vessels | Offshore vessels | Naval and patrol ships

Certifications & Advantages

Certifications: CCS | ABS | DNV | BV | LR | NK | RINA

Advantages: Dedicated chain handling design | High braking capacity | Integrated mooring support | Space-saving layout | Reliable marine performance

Drawing & Photos

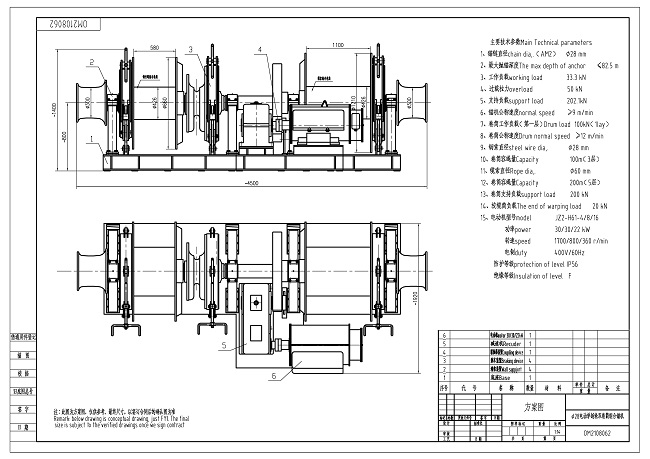

• General arrangement drawing

• Gypsy and chain system drawing

• Installation layout

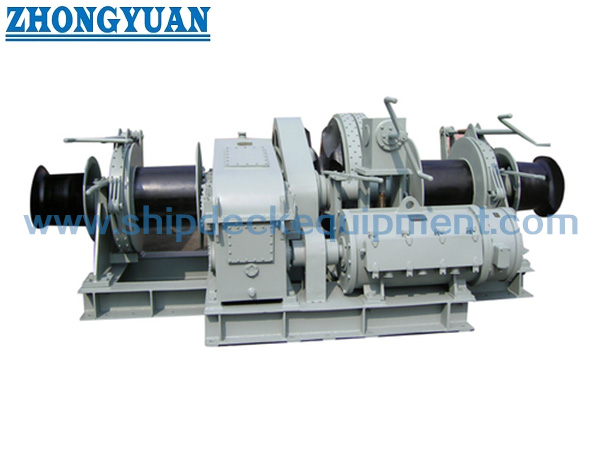

• Product photos

Ordering Information

• MOQ: 1 Unit

• Delivery: Project based

• Customization: Available

FAQ

Q1: What is the main function?

A: Anchor chain handling using gypsy system.

Q2: Can it handle rope?

A: Yes, via drum and warping head.

Q3: What chain grade is supported?

A: U2 and U3 standard chains.
