5-500kN Electric Hydraulic Mooring Winch Double Drum | Ship Mooring Equipment

Product Overview

Electric hydraulic mooring winch is designed for ship mooring operations with stable load control and reliable performance.

The system integrates hydraulic drive, gearbox, drum, warping end, and control system to ensure safe mooring under various marine conditions.

It features compact structure, multi-speed hydraulic motor, and flexible configuration for different vessel requirements.

Quick Specifications

• Pulling Capacity: 5-500 kN

• Rated Speed: ≥6-15 m/min

• Warping Speed: 9-18 m/min

• Drum Capacity: 100-250 m

• Wire Rope Diameter: 8-58 mm

• Drum Type: Single / Double drum

• Warping End: Single / Double

• Drive Type: Electric hydraulic

• Motor Power: 5.5-110 kW

• Control: Local and Remote

• Power Supply: 380V / 415V / 440V

Main Technical Parameters

Selection Guide

Step 1 - Pulling Capacity: 5-500 kN | Step 2 - Select Rope Diameter: 8-58 mm | Step 3 - Select Speed: ≥6-15 m/min | Step 4 - Select Drum Type: Single / Double | Step 5 - Select Warping End | Step 6 - Drive: Electric Hydraulic | Step 7 - Control: Local / Remote

Structure & Components

Structure & Components: Hydraulic motor | Gearbox | Drum | Warping end | Clutch system | Hydraulic power unit | Electric control panel | Base frame

Custom Attributes

Pulling Capacity: 5-500 kN | Rope Diameter: 8-58 mm | Speed: 6-15 m/min | Drive Type: Electric hydraulic | Control: Local / Remote | Drum Type: Single / Double

Custom Configuration & Inquiry Guide

Pulling Capacity | Rope Diameter | Drum Capacity | Warping End | Motor Power | Control Type | Installation Requirement

How It Works

Electric motor drives the hydraulic power unit, which powers the hydraulic motor to rotate the drum.

The rope is wound or released through the drum and warping end, ensuring controlled mooring operation.

Applications

Applications: Ship mooring operations | Cargo vessels | Tankers | Offshore vessels | Port and harbor operations

Certifications & Advantages

Certifications: CCS | NK | BV | ABS | DNV | LR | KR | RINA | IRS | RS

Advantages: Wide load range | Stable hydraulic drive | Flexible drum configuration | Reliable performance | Easy maintenance

Drawing & Photos

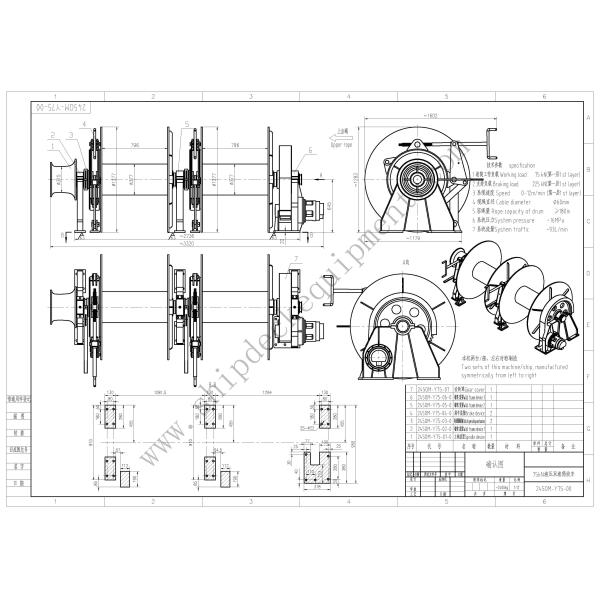

• General arrangement drawing

• Structure drawing

• Hydraulic system diagram

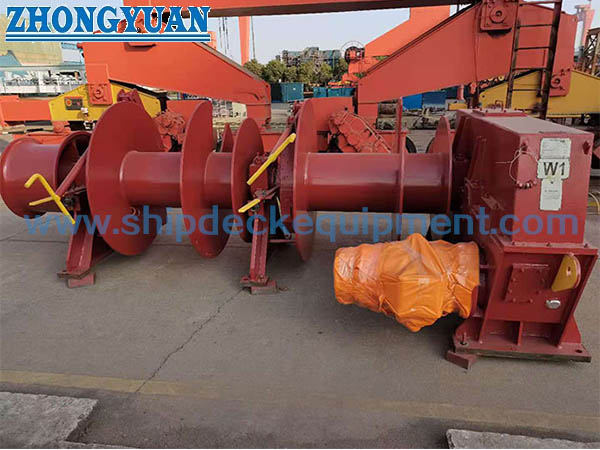

• Product photos

Ordering Information

• MOQ: 1 Unit

• Delivery Time: Based on project

• Payment: T/T, L/C

FAQ

Q1: Can it be used for heavy mooring?

A: Yes, suitable for various vessel sizes.

Q2: Can drum configuration be customized?

A: Yes, single or double drum available.

Q3: Is remote control supported?

A: Yes, local and remote control supported.
