Hot Dipped Galvanized Highway Guardrail W-Beam with Customizable Thickness and Corrosion Resistance
Hot Dipped Galvanized Highway Guardrail W-Beam with Customizable Thickness and Corrosion Resistance
Hot Dipped Galvanized Highway Guardrail W-Beam with Customizable Thickness and Corrosion Resistance
Hot Dipped Galvanized Highway Guardrail W-Beam with Customizable Thickness and Corrosion Resistance
Hot Dipped Galvanized Highway Guardrail W-Beam with Customizable Thickness and Corrosion Resistance
Hot Dipped Galvanized Highway Guardrail W-Beam with Customizable Thickness and Corrosion Resistance
Hot Dipped Galvanized Highway Guardrail W-Beam with Customizable Thickness and Corrosion Resistance
Hot Dipped Galvanized Highway Guardrail W-Beam with Customizable Thickness and Corrosion Resistance
Specifications
Brand Name :
Gnee
Certification :
SGS
Place of Origin :
Henan
Packaging Details :
Standard Sea Worthy Package
Description
Highway Guardrail Hot Dipped Galvanized Steel W-Beam
Product Overview

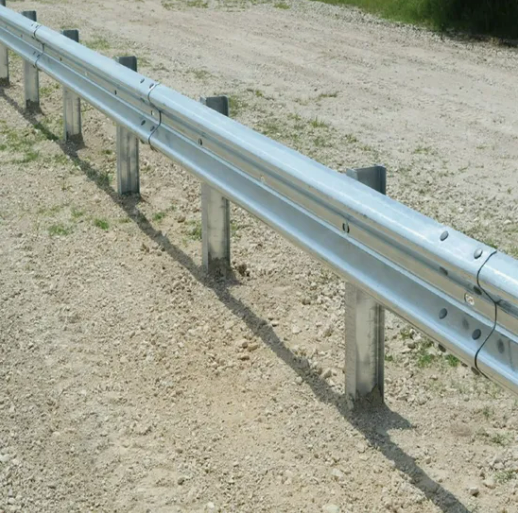

W beam galvanized guardrail is the most common highway crash barrier designed to prevent vehicles from running off the road in dangerous areas. We supply AS/NZS standard guardrail and accessories for roadside and highway guardrail projects.

The beams are coated with a uniform layer of zinc coating to prevent weak spots caused by rust and corrosion, ensuring long-term durability and performance.

Key Advantages
  • Hot dip galvanized surface treatment
  • Long service life with excellent durability
  • Customizable thickness and length options
  • Customizable zinc coating thickness
  • Available in Steel Grade Q235B (ASTM A283M) or Q345 (ASTM A529M)
Hot Dipped Galvanized Highway Guardrail W-Beam with Customizable Thickness and Corrosion Resistance
Technical Specifications
Item Specifications

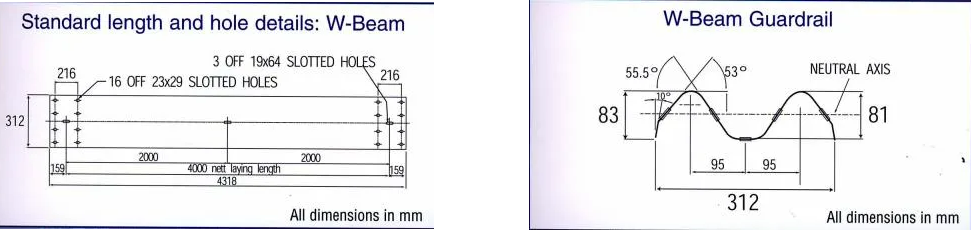

Normal Size 3200/3300/4000/4130/4300/4320 mm × 306/310/312/380mm × 80/82/83/85mm × 2.55/2.75/3/4mm. Available in different sizes
Profile W-beam, Three-beam
Base Steel Steel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. D according to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994)
Thickness of Steel 2.55mm, 2.75mm, 3mm, 4mm, 6mm or according to consumers' request
Surface Treatment Hot dip galvanized or powder coated
Galvanized Thickness (Double Sides) 550g/m² (80µ) or 610g/m² (85µ) or 1100 g/m² (160µ) or 1200 g/m² (170µ) or as per your request
Certificate ISO9001, ISO14000, SGS, CE
Features Great corrosion resistance, high intensity, long and durable, good impact resistance, low cost, long life, higher security, environmental protection
Custom Options Other special specifications as per client's requirement or drawings
Hot Dipped Galvanized Highway Guardrail W-Beam with Customizable Thickness and Corrosion Resistance Hot Dipped Galvanized Highway Guardrail W-Beam with Customizable Thickness and Corrosion Resistance
