Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

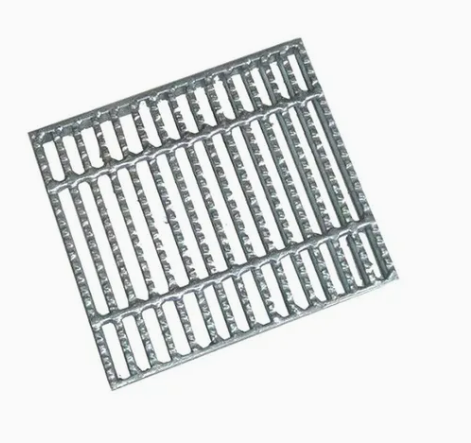

Serrated steel grating is the most popular of all grating typesdue to its strength, cost-efficient production and ease ofinstallation. In addition to its high strength and light weight,this type of grating also has non-slip characteristics, nosharp edges and serrations are rolled on, to meet stricthealth and safety requirements. Hot rolled serrations helpstop lacerations if someone falls on the grating.

Optional serrated bearing bars enhance skid resistance.Consider this surface for applications subject to theaccumulation of liquids or lubricants or inclined gratinginstallations. The excellent self-cleaning characteristics ofplain surface grating make it suitable for the majority ofapplications.In the presence of fluids or materials that couldcause the top surface of the grating to become wet orslippery, specification of the optional serrated surface shouldbe considered. When serrated grating is specified, thebearing bar depth must be 1/4" greater, to provide theequivalent strength of non-serrated gratings.


Material 1.Carbon Steel Q235 2.Stainless Steel 304 / 316
Type Press lokced / Flat bar / Serrated bar / I Bar
Bearing Bar Size 20 x 3 to 100 x 9;the specification of "I-section" is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc
Bearing Bar Pitch 12.5 to 100 mm etc, 30, 40, 60mm are recommended, America standard is available
Cross Bar Pitch from18.5 to 101.6mm etc, 50, 100mm are recommended, America standard is available
Specification Size of bearing flat steel: 25x3mm / the center space: 30mm, 40mm, 50mm, 100mm
Size of horizontal pole: 10x2mm / the center space : 50mm, 100mm
Surface Treatment Untreated / Painting / Hot Dip Galvanizing
Steel Standard China GB700-88 / America ASTM (A36) / Britain ASTM (A36)
HDG Standard China GB/T13912-92 / America ASTM (A123) / Britain BS729
Quality Standard China YB/T4001-1998 America ANSI/NAAMM (MBG531-88)
Britain BS4592-1987 Australia AS1657-1992
