Hot DIP Galvanized High Strength Firm Structure Steel Grating Bar Grating Floor
Hot DIP Galvanized High Strength Firm Structure Steel Grating Bar Grating Floor
Hot DIP Galvanized High Strength Firm Structure Steel Grating Bar Grating Floor
Hot DIP Galvanized High Strength Firm Structure Steel Grating Bar Grating Floor
Hot DIP Galvanized High Strength Firm Structure Steel Grating Bar Grating Floor
Hot DIP Galvanized High Strength Firm Structure Steel Grating Bar Grating Floor
Hot DIP Galvanized High Strength Firm Structure Steel Grating Bar Grating Floor
Hot DIP Galvanized High Strength Firm Structure Steel Grating Bar Grating Floor
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

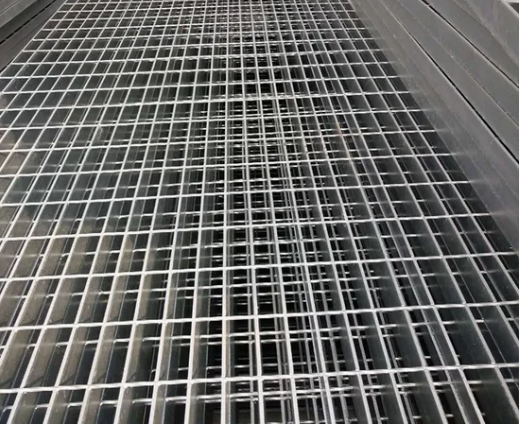

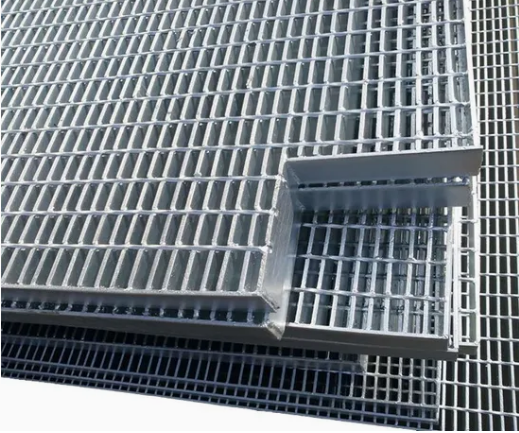

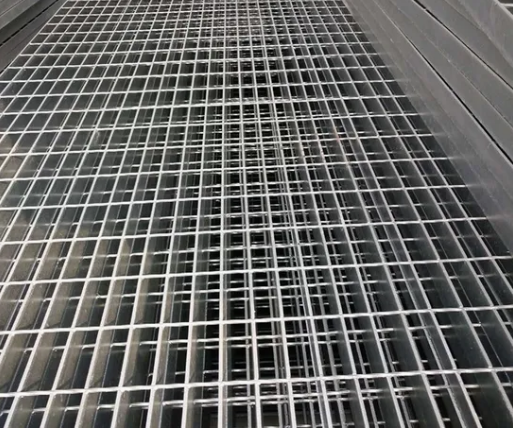

Steel bar grating made of high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel.
According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings.
According to the surface shapes, it can be divided into smooth and serrated gratings.
Welded Grating
Dovetail Pressure Locked
The most commonly used and economical design suitable for most industrial applications.Manufactured by welding the bearing bar and cross bar intersection, typically with automated forge welding equipment or professional manual welding. Available in carbon steel or stainless steel.
Insert the cross bar into the pre-punched bearing bar and hydraulically deform it to lock it in place.The cross bar here is usually a straight plate shaped like a bearing bar.
Swaged Pressure Locked
Welded Swaged Pressure Locked
Assembled by inserting pre-punched bearing and cross bars into an "egg-crate" configuration and deforming the cross bars under intense hydraulic pressure. Available in all materials and ideal for architectural and ornamental applications.
It is an upgraded version of the swaged pressure locked,Each intersection is manually welded once to make it stronger and can withstand more loads.


Specification
Description
Material
304, 304L, 316, 316L stainless steel
Manufacturing Process
Welded, swage-locked, or press-locked
Surface Type
Standard plain surface, serrated surface
Cross Bar Spacing
2" or 4", center to center
Bearing Bar Spacing
15/16" or 1-3/16", center to center
Bearing Bar Height
20mm to 60mm
Bearing Bar Thickness
2mm to 5mm
Cross Bar Size
4mm to 10mm diameter
Slip Resistance
Serrated or plain surface, depending on the application
Installation Method
Welding, clips, or bolts and nuts, depending on the application
Compliance
Meets industry standards and applicable building codes, including ASTM, ISO, and ANSI/NAAMM
