Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description
Hot-Dipped Galvanized Grating Press Lock Steel Grating
Flat Bar Floor/Platform/Driveway/Serrated/I Bar/Steel Grating
Weld bar steel grating fence is a unique security fencing product. Unlike traditional wire mesh fences, it is constructed with steel flat bars and round bars, making it significantly stronger and more durable.
Both welded steel grating fences and press-locked steel grating fencing are suitable for various environmental conditions, including garden fences, playground fences, and street fences. Surface treatment plays a crucial role in the lifespan of steel grating fences. Hot-dipped galvanized steel grating fences offer strong anti-corrosion properties, while powder-coated steel grating meets environmental requirements.
Product Specifications

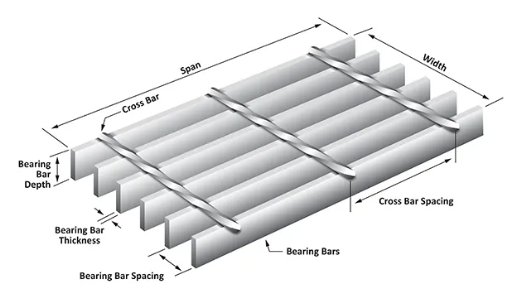

  • Bearing Load bar: 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 35x5, 40x5, 50x5 to 75x10mm
  • Bearing Load bar pitch spacing: 15, 20, 25, 30, 35, 40, 45, 60mm
  • US standard: 1"x3/16'', 1-1/4"x3/16", 1-1/2"x3/16"
  • Cross bar pitch spacing: 40, 50, 100mm
  • Surface finishing treatment: Untreated Black, Galvanized, Hot Dipped Galvanized, Painted
  • Standards:
    • China: YB/T 4001.1-2007
    • USA: ANSI/NAAMM(MBG531-88)
    • UK: BS4592-1987
    • Australia: AS1657-1985
Hot-Dipped Galvanized Steel Grating with Standard YB/T 4001.1-2007 ANSI/NAAMM(MBG531-88) and BS4592-1987 for Security Fence
Technical Specifications Table
Series Pitch of Bearing bar Pitch of Cross bar Specifications of Bearing Bar (Width x Thickness)
1 30 100 WA253/1 | WA253/1 | WA254/1 | WA404/1 | WA205/1 | WA255/1
50 WB253/1 | WB253/1 | WB254/1 | WB404/1 | WB205/1 | WB255/1
2 40 100 WA253/2 | WA323/2 | WA254/2 | WA404/2 | WA205/2 | WA255/2
50 WB253/2 | WB323/2 | WB254/2 | WB404/2 | WB205/2 | WB255/2
3 60 50 WB53/3 | WB323/3 | WB254/3 | WB404/3 | WB205/3 | WB255/3
Series Pitch of Bearing Bar Pitch of Cross Bar Specifications of Bearing Bar (Width x Thickness)
1 30 100 WA325/1 | WA405/1 | WA455/1 | WA505/1 | WA555/1 | WA605/1
50 WB325/1 | WB405/1 | WB455/1 | WB505/1 | WB555/1 | WB605/1
2 40 100 WA325/2 | WA405/2 | WA455/2 | WA505/2 | WA555/2 | WA605/2
50 WB325/2 | WB405/2 | WB455/2 | WB505/2 | WB555/2 | WB605/2
3 60 50 WB325/3 | WB405/3 | WB455/3 | WB505/3 | WB555/3 | WB605/
