Description
Hot DIP Galvanized Strut Channel / C Channel
What Is C-channel?

C-channel is a type of steel that is automatically processed and formed by a C-shaped steel forming machine. It has the characteristics of thin wall, light weight, excellent cross-sectional performance, and high strength. Its production process includes hot rolled plate cold bending processing.

It has a wide range of applicability in the construction field. It is often used as purlins and wall beams in steel structure buildings. At the same time, it can be flexibly combined into lightweight roof trusses, brackets and other building components. In the field of mechanical manufacturing, C-channel is often used to manufacture components such as columns, beams and arms. In addition, C-channel is also used in the fields of automobile manufacturing, shipbuilding, etc. to make shells, chassis, etc.

Hot DIP Galvanized Slotted Perforated Strut Channel for Construction and Mechanical Applications
Product Specifications

Slotted C Channel, Perforated C Strut Channel. High quality & reasonable Price, no need welding and punching, can use repeatedly, wide usage range, flexible for installation.

  • Standard thickness: 1.0mm, 1.5mm, 2mm, 2.5mm, 2.75mm, 3mm
  • Standard length: 2440mm, 3000mm, 5800mm, 6000mm
  • Standard size: 41×21, 41×25, 41×41, 41×62, 41×72, 41×82
No. Size(mm) Size(inch) Thickness(mm) Thickness(Gage) Type Surface Finish
1 21×10 13/16×13/32" 1.0, 1.5, 2.0, 2.5, 2.75, 3.0 19, 16, 14, 12 Slotted, Solid HDG, PG, SS, Al, PC
2 21×21 13/16×13/16" 1.0, 1.5, 2.0, 2.5, 2.75, 3.0 19, 16, 14, 12 Slotted, Solid HDG, PG, SS, Al, PC
3 41×21 1-5/8×13/16" 1.0, 1.5, 2.0, 2.5, 2.75, 3.0 19, 16, 14, 12 Slotted, Solid HDG, PG, SS, Al, PC
4 41×22 1-5/8×7/8" 1.0, 1.5, 2.0, 2.5, 2.75, 3.0 19, 16, 14, 12 Slotted, Solid HDG, PG, SS, Al, PC
5 41×25 1-5/8×1" 1.0, 1.5, 2.0, 2.5, 2.75, 3.0 19, 16, 14, 12 Slotted, Solid HDG, PG, SS, Al, PC
6 41×41 1-5/8×1-5/8" 1.0, 1.5, 2.0, 2.5, 2.75, 3.0 19, 16, 14, 12 Slotted, Solid HDG, PG, SS, Al, PC
7 41×62 1-5/8×2-7/16" 1.0, 1.5, 2.0, 2.5, 2.75, 3.0 19, 16, 14, 12 Slotted, Solid HDG, PG, SS, Al, PC
8 41×83 1-5/8×3-1/4" 1.0, 1.5, 2.0, 2.5, 2.75, 3.0 19, 16, 14, 12 Slotted, Solid HDG, PG, SS, Al, PC
Strut Channel System Advantages
  • High strength to cost ratio
  • Completely adjustable
  • No welding or drilling required
  • Strut is re-usable
  • One-inventory adaptable to many jobs
  • Saw and wrench are the only tools needed
Strut Channel Surface Finish
  • Powder coated - BS-6497-1984, between 60 and 85 microns thick
  • Hot Dipped Galvanized - for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
  • Acid Washing or Electrolytic Polishing - for stainless cable basket tray use
Hot DIP Galvanized Slotted Perforated Strut Channel for Construction and Mechanical Applications

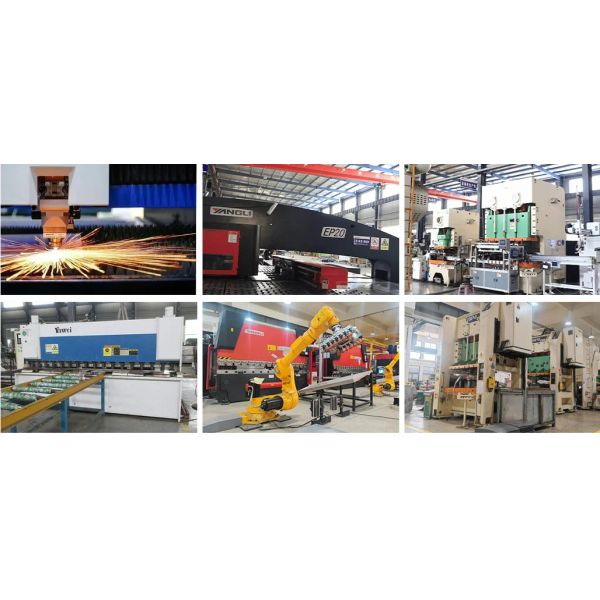

Our Factory
Hot DIP Galvanized Slotted Perforated Strut Channel for Construction and Mechanical Applications
Customer Visit
Hot DIP Galvanized Slotted Perforated Strut Channel for Construction and Mechanical Applications
Frequently Asked Questions
What sizes are available for C-channel steel?

Common sizes include 41×21 mm, 41×41 mm, 41×62 mm, and custom dimensions depending on project requirements.

What is the difference between slotted and solid C-channel?

Slotted C-channel has oval holes for easy installation and adjustment, while solid C-channel has no holes and provides higher structural rigidity.

Can C-channel steel be used for solar panel mounting?

Yes, it is widely used in solar PV mounting systems for ground and rooftop installations due to its strength and modular design.

What surface treatments are available for C-channel steel?

Common treatments include hot-dip galvanizing (HDG), electro-galvanizing, and Zinc-Aluminum-Magnesium (ZAM) coating.

How long does galvanized C-channel steel last?

Depending on environment and coating thickness, it can last 20-50 years with proper installation and maintenance.

Can C-channel steel be customized?

Yes, it can be customized in length, thickness, hole patterns, and surface coating according to engineering requirements.
