Medical-Grade TPU Coated Clear PET Film with 92% Light Transmittance and Cross-Cut Adhesion 100/100 Pass for HMIs
Medical-Grade TPU Coated Clear PET Film with 92% Light Transmittance and Cross-Cut Adhesion 100/100 Pass for HMIs
Medical-Grade TPU Coated Clear PET Film with 92% Light Transmittance and Cross-Cut Adhesion 100/100 Pass for HMIs
Medical-Grade TPU Coated Clear PET Film with 92% Light Transmittance and Cross-Cut Adhesion 100/100 Pass for HMIs
Medical-Grade TPU Coated Clear PET Film with 92% Light Transmittance and Cross-Cut Adhesion 100/100 Pass for HMIs
Medical-Grade TPU Coated Clear PET Film with 92% Light Transmittance and Cross-Cut Adhesion 100/100 Pass for HMIs
Specifications
Surfacefinish :
Glossy or Matte
Model Number :
HT15
Type :
Clear PET Roll
MOQ :
1 square meter
Delivery Time :
7 working days
Roll Length :
500m-1000m
Ink Compatibility :
UV & Solvent Ink
Heat Shrinkage :
MD 1.0 %
Payment Terms :
T/T,Western Union
Optical Properties :
Low haze
Chemicalresistance :
Good resistance to oils, greases, and many solvents
Surface Finish :
Glossy or Matte
Price :
USD 0.166~1.316
Light Transmittance :
>90%
Width :
Customizable (e.g., 500mm, 1000mm)
Supply Ability :
500000 square meter
Surface Quality :
Low Haze&Smooth Finish
Printed :
UV & Solvent Ink Compatibility
Certification :
ISO 13485, ISO 9001, IATF 16949, FCC, SGS
Transparency :
Above 90%
Brand Name :
XH
Heat Shrinkage Md :
1.0 %
Packaging Details :
Tray / Carton
Tensile strength :
MD 163 MPa / TD 180 MPa
Place of Origin :
Shenzhen, China
Film Type :
BOPET Base Film
Description
Medical-Grade HT-15 TPU Coated PET Film for Device Overlays & HMIs

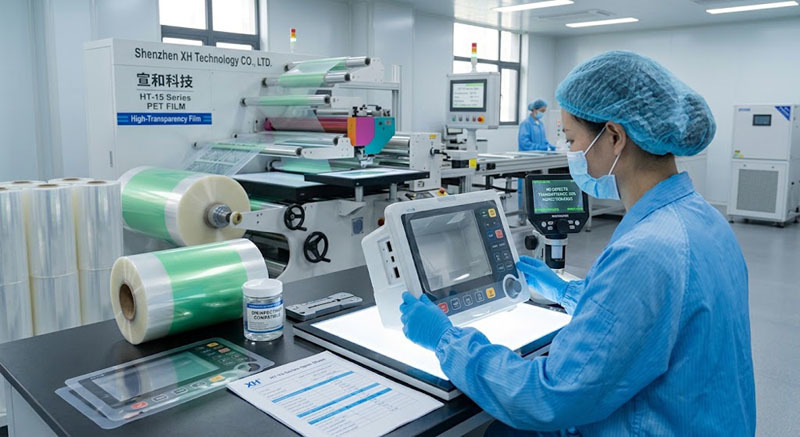

Is your medical equipment facing graphic panel delamination, chemical degradation from harsh disinfectants, or rainbow optics? The HT-15 Series TPU coated PET film is engineered specifically for mission-critical medical applications. Manufactured in cleanroom environments with high optical clarity and chemical resistance, this clear PET film provides a reliable, bio-compatible surface overlay for patient monitors, diagnostic devices, and surgical control panels.

Core Performance & Technical Specifications
Performance Feature Key Technical Spec Medical Engineering Problem Solved
Double-Sided TPU Coating Cross-Cut Test: Pass (100/100) Prevents Chemical Degradation: Resists frequent wiping with alcohol and hospital disinfectants; prevents ink flaking during heavy keypad use.
High Thermal Stability Heat Shrinkage: TD 0.0% / MD 1.0% No Dimension Offset: Maintains strict mechanical tolerances and print registration, ensuring zero air-gap sealing against fluid ingression.
Optical Clarity & Low Haze Transmittance: 92% / Haze: < 1.3% Zero Glare & No Rainbow Lines: Eliminates optical stress lines under hospital LED lighting, ensuring flawless screen readability for clinicians.
High Mechanical Strength Tensile: MD 163 / TD 180 MPa High Tactile Flex Life: Withstands over 1 million tactile button actuations without surface cracking or edge bursting.
Dual PE Protective Film Cleanroom Green & Clear PE Protection Zero Particle Contamination: Protects base film from static dust and scratches during converting, meeting cleanroom assembly requirements.
Key Medical Applications
  • Patient Monitor Control Panels: Durable front overlays for ECGs, ventilators, and infusion pumps.
  • Diagnostic Equipment Keypads: Tactile membrane switch overlays for lab instruments and ultrasound controls.
  • Sterile Environment HMIs: Sealed touch interfaces for surgical room equipment and cleanroom instrumentation.

Protect your medical devices against surface wear and chemical degradation. As a trusted functional material manufacturer, Shenzhen XH Technology delivers high-precision TPU coated PET film and medical membrane switch film solutions tailored for global healthcare OEMs. Contact us today to request free A4 test samples and compliance documentation!
