Profile

VG(Victory Giant) Technologies Co., Ltd / VGT(A Subsidiary of SH Group) is dedicated to building multilayer printed circuit board and flex-rigid pcb board, samples quick turn, medium and large volume production and PCB assembly service (one-stop service)

Founded in February 2001, the use of modern advanced production and testing equipment and technology, to create a modern, technology enterprises. High-tech innovation-oriented, efficient human resource management, standardization of quality control procedures, in order to continuously improve customer satisfaction, with modern production plant, imported professional production equipment and testing equipment from Europe, America, Japan, such as: pressure machine, drill hole machine, automatic film machine, automatic plating line, etching line, automatic coating line, HAL machine, AOI machine, Flying Probe Tester.

VGT in strict accordance with the modern enterprise system management standard operation, establishment of a unique management system and long-term planning. With professional standards, excellent service, VGT will become your most trusted partners. "Quality First, Customer First" is our aim. Our customers are widely distributed in China, US, Europe and other places. The company has passed UL, ISO/9001, ISO/14001, TS16949, CQC certification. To innovation, continuous improvement, to provide you with high quality products and perfect after-sales service is our unremitting pursuit and purpose.

Basic Information

Company Name: VG TECHNOLOGIES CO., LIMITED
Business Type: Manufacturer, Exporter
Brands: VGT SH
Employee Number: 500~1000
Year Established: 2005
Total Sales Annual: $10,0000,000-$50,0000,000
Company Location: Block 1, Huafeng science park, Xin'an six road, Bao'an, Shenzhen
Factory Location: 3# Haoze Industrial Park, Tongfuyu Development Zone, Guangming, Shenzhen

Trade & Market

Company slogan:

VG TECHNOLOGIES CO., LTD

High quality, Best service, Reasonable price.

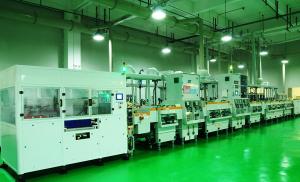

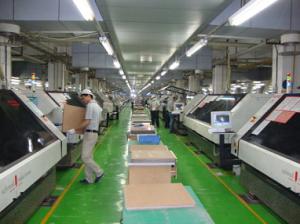

Production Line:

VGT is one of the fewer PCB manufacturers that has full range of surfacetreatment and process in house.

Advanced automatic production lines and precise testing tools.

50 millions of investment on production lines including Universal VCP, Burkle lamination pressing, Mitsubishi laser drilling, Hitachi mechanical drilling, Screen automatic exposure machine, Screen LDI and AOI.

R&D:

Detailed Capabilities / Design Guidelines

ITEM Technical Specifications
Standard Advanced Standard Advanced
PANEL SIZE Maximum 600*730 650*1120 mm 24*29 Inch 26*44 Inch
BOARD THICKNESS
Maximum
Minimum
7 mm
0.4 mm
10 mm
0.2 mm
0.28 Inch
0.016 Inch
0.39 Inch
0.008 Inch
LAYER COUNT
Maximum layer count rigid boards
Maximum layer count flex boards
36
14
64
20
36
14
64
20
LAYER TO LAYER REGISTRATION minimum missregistration 0.1 mm 0.075 mm 4 mil 3 mil
COPPER THICKNESS (INNER/OUTER LAYERS) Maximum thickness 210 micron 420 micron 6 oz 12 oz
MINIMUM CORE THICKNESS Minimum core thickness 50 micron - 2 oz -
LINES/SPACES
Minimum outer layer line/space
Maximum layer count flex boards
75/75 micron
63.5/63.5 micron
50/50 micron
40/40 micron
3/3 mil
2.5/2.5 mil
2/2 mil
1.6/1.6 mil
MECHANICAL DRILLING
Maximum aspect ratio
Minimum drill diameter
final hole tolerance (PTH)
final hole tolerance (NPTH)
Hole location accuracy
1:14
0.15 mm
+0.1, -0.05 mm
± 0.05 mm
± 38 micron
1:20
0.1 mm
± 0.05 mm
± 0.05 mm
± 30 micron
1:14
6 mil
+4, -2 mil
± 2 mil
± 1.5 mil
1:20
4 mil
± 2 mil
± 2 mil
± 1.2 mil
LASER DRILLING
Minimum laser diameter
Aspect ratio microvia
75 micron
1:0.8
60 micron
1:1
3 mil
1:0.8
2.4 mil
1:1
IMPEDANCE CONTROL Accuracy ± 10% ± 5% ± 10% ± 5%

Our Team:

WORKFORCE STRUCTURE

VG TECHNOLOGIES CO., LIMITED

Management team:
college diploma or above – 99%
Engineering team:
B.S. Degree or above – 100%
Operator:
Associate college diploma or above: 5%
High school diploma: 93%
Junior high school: 2%
History:

History

2001.2 Company established, 5000sqm factory area
2001.3 CQC & ISO9000 qualification achieved.
2001.4 Products reach IPC and IEC standards.
2002.3 Acquisition of the UL certificate of Underwriters Laboratories.
2004.1 To expand production, invest 23,600sqm industrial zone
2005.3 To serve oversea market VG Technologies Ltd(VGT) established
2008.1 ''VGT'', annual ouput capacity of 80.000 m²..
2009.3 ''VGT'' became an official supplier of Vtron.
2009.5 Yearly capacity of 120.000 m² double and multilayer circuits board.
2010.2 Foundation prototype plant in Shenzhen.
2011.6 ''VGT'' was awarded with the title of “Strategic Supplier” by Konka Group.
2011.12 Yearly capacity of 160.000 m² reached.
2012.12 Total capacity of 200.000 m² reached.
.
.
.
Service:

※ 2-48 Layers PCB maufacturing, Low-high mix volume, Quick Turn, Turnkey service

※ 100% percent delivery performance
* Sample, quick turn of double layers 2-4 working days, multi-layers 7-12 working days
* Mass, mid, low volume order based on clients' demand, standard delivery 10-20 working days.
※ Handling Complaint: the processing is completed within 24 hours, timely finding problems and solving the problems,improving the production management, as much as possible to reduce and avoid customer's loss.
※ Within 4 hour rapid response and handling quotation
※ Daily processing 100 inquiry projects and 80 new order projects.
※ 12 hours continuous online technology consultation and on-site support.
※ Completing English engineering query confirmation within 24 hours.
※ The team of Cam Engineer make the most conducive design for the production, reducing cost for you, improving the reliability of quality, shortening production cycle.
