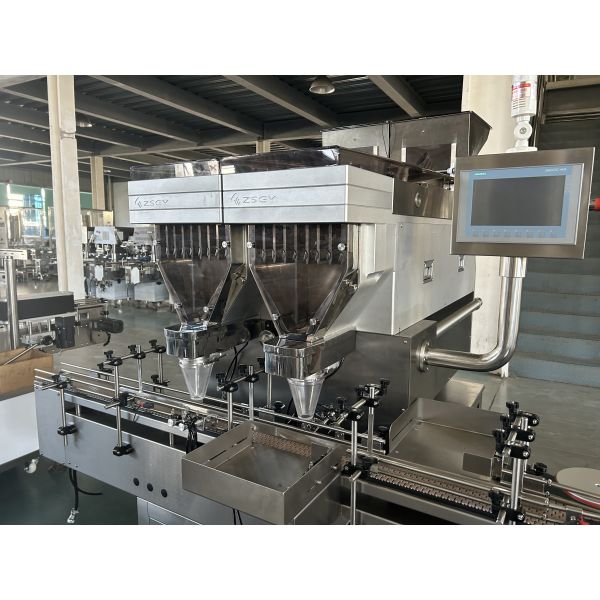

This machine is developed for factories that need accurate visual counting for tablets and capsules under real production conditions, not just lab testing.

It combines a dual-channel vision system with a triple-stage vibration feeding structure, supporting stable counting speeds up to 12,000 pcs/min.

It is commonly used for tablets, capsules, small pills, and irregular solid products, especially in GMP and CE regulated production environments.

• Works in real production environments
  Handles dust and lighting changes without frequent manual adjustment.
• Triple-layer vibration feeding system
  Keeps materials moving in single layers and reduces double pieces or jamming during operation.
• 316L stainless steel contact parts
  All product-contact parts are made of 316L stainless steel with polished surface (Ra ≤ 0.8μm), suitable for pharmaceutical use.
• Easy integration with existing lines
  Standard RS485 and Ethernet interfaces allow connection with most packing or control systems.

The machine uses a three-stage vibration structure instead of a single feeding tray.

In actual use, this helps:

• keep materials in single-layer flow
• reduce blocking and overlapping
• handle different shapes and sticky materials more smoothly

Supports:

• Capsules (#0–5)
• Tablets (φ3–23mm)
• Small pills (φ2–12mm)

Frequency adjustment: 0–50Hz

The system uses two industrial cameras with LED lighting compensation.

In production, it focuses on:

• detecting broken or empty pieces
• identifying double overlapping products
• keeping stable counting during long operation

Response time is around 0.1s, suitable for continuous production lines.

• Tablet and capsule filling lines
• Nutritional supplement production (vitamins, fish oil, probiotics, gummies)
• Production lines requiring visual counting of tablets and capsules
• Small solid or irregular products requiring accurate counting before bottling

• GMP-compliant design
• CE certified system
• IQ / OQ / PQ documents available upon request
• Full English operation manual included
• Material certificates for 316L stainless steel parts

• Modular structure for easy maintenance and cleaning
• Standard spare parts available for fast replacement and shipping
• On-site installation support available upon request for overseas projects

• Germany: improved counting stability during long production runs
• USA: eliminated double-counting in high-volume bottling lines
• Southeast Asia: integrated into MES-controlled packaging systems

Yes, but settings need to be adjusted depending on product size.

Yes, it supports RS485 and Ethernet interfaces for integration.

Usually 9 weeks depending on configuration and order quantity.

Yes, on-site engineer support is available upon request for overseas customers.
