GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
Specifications
Brand Name :
Shark
Model Number :
BP-200
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
80000-150000 USD
Payment Terms :
L/C,T/T
Supply Ability :
100 per year
Delivery Time :
9 weeks
Packaging Details :
wooden case
Counting Structure: :
Dual-channel parallel counting
Core Material: :
316L&304 Stainless Steel(GMP standard)
Counting Mode: :
Vision+Photoelectric dual inspection
Applicable Products: :
Capsule/Tablet/Softgel
Control System: :
PLC+Touch screen with recipe storage
Line Compatibility: :
Full automatic bottling inline connection
Description
GMP Standard Fully Automatic Counting Machine
For Capsules, Tablets & Softgels Bottling Line
This machine is designed for real production environments where speed, stability, and easy cleaning matter most. It is commonly used in pharmaceutical and nutraceutical factories for tablets, capsules, softgels, and other granular products. The machine performs exceptionally well with softgel capsules like fish oil, where sticking and irregular flow typically cause problems on standard counting equipment.
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
Key Production Advantages

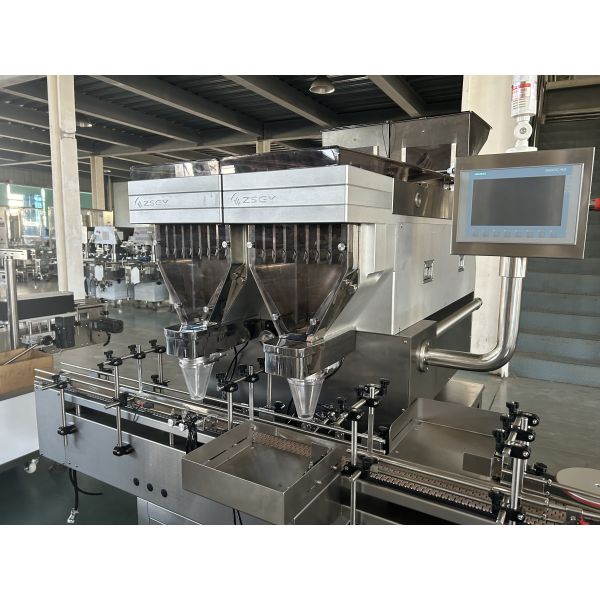

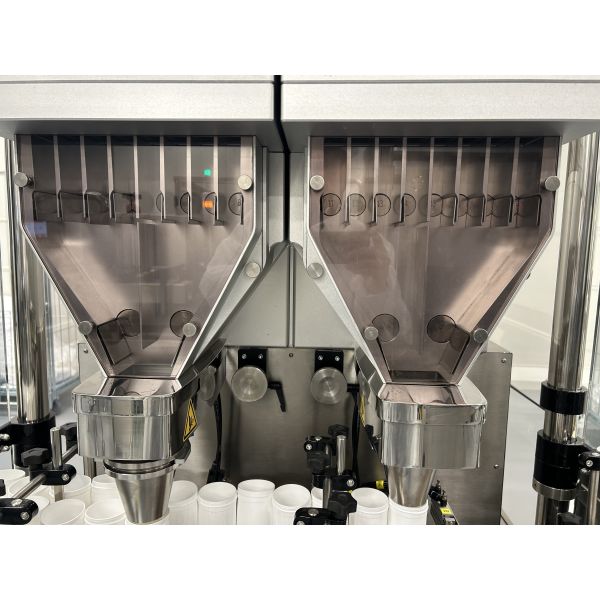

Dual-Channel Design for Continuous Output
Instead of running everything through a single counting line, this machine splits material into two independent channels. This design helps maintain smooth production during high feeding volumes, preventing single-channel blockages from stopping the entire system. Both channels operate in parallel with separate monitoring, ensuring stable counting performance during extended production shifts.
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets

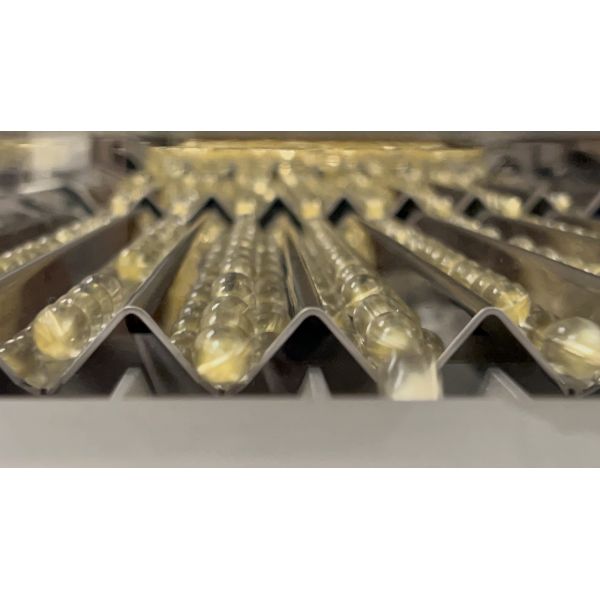

Enhanced Stability for Softgels
Specifically engineered to handle softgels—which are soft, slightly sticky, and behave differently than tablets—the feeding system incorporates:
  • Multi-stage vibration instead of single strong vibration
  • Controlled material spreading before counting
  • Anti-stick track design to reduce overlap
This configuration reduces random clumping and improves consistency during continuous operation.
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
GMP Structure for Easy Cleaning
Constructed with 316L stainless steel for product-contact parts and 304 stainless steel for the frame, the machine prioritizes cleaning efficiency with:
  • Quick-release modules requiring no special tools
  • Minimal hidden corners where powder can accumulate
  • Smooth polished surfaces that resist residue buildup
This design enables faster product switching, particularly beneficial for factories managing multiple SKUs.
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets

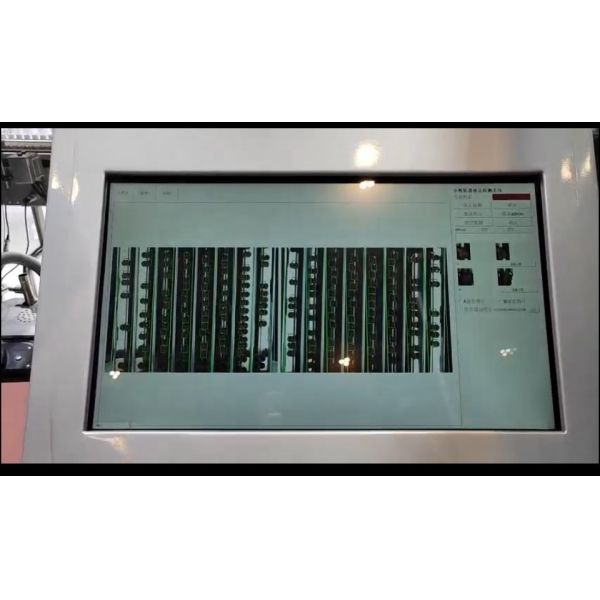

Advanced Counting System
The machine employs a vision-based counting system combined with photoelectric detection. This dual approach visually monitors product passage, reducing missed or false counts caused by dust or uneven spacing. Essential protection functions include:
  • Bottle missing stop
  • Blockage alarm
  • Abnormal flow detection
GMP Standard Dual-Channel Counting Machine with Vision+Photoelectric Inspection for Capsules and Tablets
Operator-Friendly Control System
The PLC system features a simple touchscreen interface that operators can master quickly without extensive training. Product settings can be stored for easy switching between capsules and tablets without full recalibration. The system integrates seamlessly with upstream and downstream equipment including bottle unscramblers, capping machines, and labeling machines.
Technical Specifications
Item Value
Output 60-180 bottles/min
Bottle Size Range 10-500 ml
Power 220V / around 8.5 kW
Air Consumption ~1 m³/h
Line Length 10.8 m
Operators 3-4 people
Final configuration can be adjusted based on your product samples.
Common Applications
This machine is primarily used in:
  • Vitamin and supplement factories
  • Fish oil softgel production lines
  • Pharmaceutical tablet packaging
  • Health product bottling lines
Typical products include capsules, softgels, tablets, and pills.
Customer Priority Features
Based on customer feedback, key concerns typically include:
  • Softgel sticking or jamming prevention
  • Cleaning frequency and ease
  • Counting stability during extended operation
  • Product switching simplicity
This machine is specifically designed to address these practical production requirements.
Customization & Support Services
We provide comprehensive support including:
  • Layout drawings based on your factory space
  • Testing with your actual product samples
  • Full line integration recommendations
  • Video inspection before shipment
  • Custom adjustments for bottle size or output requirements
Important Note: This is not a laboratory machine. It is engineered for continuous production lines where downtime is costly and operational stability outweighs perfect conditions. Provide your product type, bottle size, and target output for a properly configured recommendation rather than a standard model.
