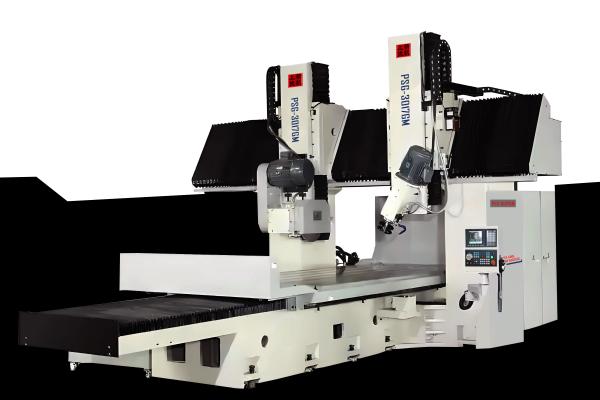

Precision Surface Grinding Machine With HT300 High Grade 0.008mm Grinding Accuracy
Precision Surface Grinding Machine With HT300 High Grade 0.008mm Grinding Accuracy
Specifications
Model Number :
PSG/GM Series - Precision Surface Grinding Machine
Place of Origin :
China
Certification :
CE ISO certification
MOQ :
1
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time :
45-60 days
Payment Terms :
T/T,L/C,,Western Union
Supply Ability :
45-60 days
Relative Humidity :
<90%
Production Capacity :
4800/min
Power Standard :
Compliance With Local Standard
Cable Drum :
AC380V 3*4+1*2.5
Temp :
-10--40
Grinding Wheel Diameter :
400mm
Model :
ABC-1000
Steel Rail Model :
depends on Loading capacity
Working Speed :
10PCS/Min
Main Motor Power :
4kw
Power Price :
Compliance with local standard
Power Supplier :
compliance the local standard
Wheel Distance :
400~700mm
Advantages :
High quality and resonable price
Color :
As your request
Description

CNC Grinding Machine

ShangJie PM’s CNC grinding machines are engineered for high-precision surface finishing and contour grinding of metal components. Featuring rigid structures, high-accuracy servo systems, and advanced control interfaces, these machines deliver exceptional repeatability and ultra-smooth finishes on steel, cast iron, and hardened alloys. Suitable for molds, tools, shafts, and complex mechanical parts, CNC grinders are widely applied in aerospace, automotive, die-making, and precision manufacturing. Their automation capabilities, programmable parameters, and fine-feed control make them ideal for tasks requiring micron-level accuracy.

  • High-rigidity design ensures consistent surface precision

  • Suitable for flat, angular, and complex contour grinding

  • Ideal for high-precision applications in mold and tooling industries

PSG/GM series machine tool adopts a gantry structure, with enlarged column and crossbeam box structure support, ensuring excellent rigidity of the entire machine. The castings of the machine tool are made of HT300 high-grade material, which has high strength, strong resistance to deformation, and excellent shock absorption capacity. The grinding accuracy within a 3-meter travel can reach within 0.008mm. The minimum feed rate of the Z-axis is 0.001mm.


The Shanjmc PSG/GM Series precision surface grinding machine is designed for industrial applications, offering high rigidity and precision. Made from HT300 high-grade material, it ensures stable precision over long-term use, making it ideal for bulk ordering and professional usage.

Description

Machine castings are made of HT300 high-grade material and undergo vibration stress relief and secondary tempering processes to eliminate internal stress. They feature high strength, strong resistance to deformation, and excellent shock absorption capacity, ensuring that the machine tool maintains stable precision over long-term use.



■ Specifications


PSG-2012GM PSG-3012GM PSG-4012GM PSG-2017GM PSG-3017GM PSG-4017GM PSG-3021GM PSG-4021GM
Workbench size mm

2000x

1000

3000x

1000

4000x

1000

2000x

1400

3000x

1400

4000x

1400

3000x

1600

4000x

1600
Max. distance from the spindlecenter to the worktable (mm) 150-850 150-850 150-850 150-850 150-850 150-850 200-1200 200-1200
Max. load capacity of the workbench 2000 3000 4000 3500 5000 6500 6500 8000
Workbench T-slot(number - size x pitch)

7-22x

160mm

7-22x

160mm

7-22x

160mm

8-22x

160mm

8-22x

160mm

8-22x

160mm

9-22x

160mm

9-22x

160mm
Gantry Effective Width(mm) 1200 1200 1200 1700 1700 1700 2100 2100
X-axis travel distance(mm) 2100 3100 4100 2100 3100 4100 3100 4100
Y-axis travel distance(mm) 1300 1300 1300 1800 1800 1800 2200 2200
Z-axis travel distance(mm) 700 700 700 700 700 700 1000 1000
X,Y,Z fast movement speed 20/25/20 m/min 20/25/20 m/min 15/20/15 m/min
Wheel dimension 510x100x203 510x100x203 610x100x203
Side grinding wheel size(mm) ※250x25x75 ※250x25x75 ※400x60x127

Machine size (L x W x H)cm

530x

290x

340

630x

290x

340

730x

290x

340

830x

400x

500

940x

400x

500

1100x

400x

500

950x

450x

500

1200x

450x

500
Standard weight 13 T 16 T 21 T 18 T 21 T 24 T 28 T 31 T



PSG-

6021GM

PSG-

4026GM

PSG-

5026GM

PSG-

6026GM

PSG-

8026GM

PSG-

5032GM

PSG-

6032GM

PSG-

8032GM
Workbench size(mm)

6000x

1600

4000x

2100

5000x

2100

6000x

2100

8000x

2100

5000x

2600

6000x

2600

8000x

2600
Max. distance from the spindlecenter to the worktable(mm) 200-1200 200-1200 200-1200 200-1200 200-1200 200-1300 200-1300 200-1300
Max. load capacity of theworkbench(kg) 12000 10000 12000 15000 18000 16000 22000 30000
Workbench T-slot(number - size x pitch)

9-22x

160mm

9-22x

200mm

9-22x

200mm

9-22x

200mm

9-22x

200mm

12-28x

200mm

12-28x

200mm

12-28x

200mm
Gantry Effective Width(mm) 2100 2600 2600 2600 2600 3200 3200 3200
X-axis travel distance(mm) 6100 4100 5100 6100 8100 5100 6100 8100
Y-axis travel distance(mm) 2200 2700 2700 2700 2700 3300 3300 3300
Z-axis travel distance(mm) 1000 1000 1000 1000 1000 1100 1100 1100
X,Y,Z fast movement speed 15/20/15 m/min 15/20/15 m/min
Wheel dimension 610x100x203 610x100x203
Side grinding wheel size(mm) ※400x60x127 ※400x60x127
Machine size (L x W x H)cm

1400x

450x

500

1200x

500x

500

1350x

500x

500

1400x

500x

500

1650x

500x

500

1350x

580x

530

1400x

580x

530

1650x

580x

530
Standard weight 41 T 36 T 40 T 44 T 55 T 49 T 54 T 68 T

■ Machine Tool Configuration

The hydrostatic spindle has the advantages of high rotational accuracy, good rigidity, long service life and low noise. It can grind workpieces with high precision and high efficiency, and is an essential configuration for precision grinding machines.

Precision Surface Grinding Machine With HT300 High Grade 0.008mm Grinding Accuracy		 The entire Adopting Japanese THK, German INA, Rexroth and Taiwan PMI SP grade ultra-precision linear guides.

Precision Surface Grinding Machine With HT300 High Grade 0.008mm Grinding Accuracy		 The entire series of grinding machines adopt C3 grade high-precision ground ball screws, which operate smoothly without shock, have low wear and a long service life, effectively enhancing the working accuracy and stability of the machine tools.
Precision Surface Grinding Machine With HT300 High Grade 0.008mm Grinding Accuracy		 The base of the electromagnetic chuck adopts steel plate milling cavity technology and all-copper coils. Compared with cast steel bases, it features a smaller volume and stronger magnetic force. The magnetic force is evenly distributed and adjustable, making it suitable for various heavy-duty and precision machining. It can quickly clamp and release workpieces, significantly enhancing production efficiency.

Precision Surface Grinding Machine With HT300 High Grade 0.008mm Grinding Accuracy



Unmatched Precision and Rigidity
The Precision gantry guide rail grinding machine from Shanjmc PSG/GM Series is engineered to redefine industrial grinding standards. With its robust gantry structure, featuring enlarged columns and crossbeam box support, this surface grinding machine ensures exceptional rigidity across its entire framework. Crafted from HT300 high-grade material, the machine's castings boast high strength and resistance to deformation, providing excellent shock absorption. This precision grinding machine achieves remarkable grinding accuracy within a 3-meter travel, maintaining precision within 0.008mm. The Z-axis offers a minimum feed rate of 0.001mm, making it a top choice for grinding machine manufacturers seeking reliable and consistent performance. Whether you're looking for a grinding machine for sale or a precision surface grinding machine for demanding applications, this model delivers unparalleled precision and durability.

Built for Precision and Performance
Designed for industrial applications, the Shanjmc PSG/GM Series precision surface grinding machine is equipped with advanced features that enhance operational reliability and user experience. The hydrostatic spindle offers high rotational accuracy, good rigidity, and low noise, essential for high-efficiency grinding. The machine incorporates Japanese THK, German INA, Rexroth, and Taiwan PMI SP grade ultra-precision linear guides, ensuring smooth operation and long service life. The C3 grade high-precision ground ball screws further enhance the working accuracy and stability of the machine tools. This surface grinding machine is ideal for grinding machine manufacturers who prioritize quality and performance in their equipment. With its ability to handle heavy-duty and precision machining, this precision grinding machine is a valuable asset for any industrial setting.

Scalable Design to Meet Growing Demand
The Shanjmc PSG/GM Series precision surface grinding machine is not only built for current needs but also designed to adapt to future demands. Its scalable design accommodates various workbench sizes and load capacities, making it suitable for a wide range of applications. The electromagnetic chuck base, featuring steel plate milling cavity technology and all-copper coils, provides adjustable magnetic force for quick clamping and release of workpieces, significantly enhancing production efficiency. This surface grinding machine is perfect for grinding machine manufacturers looking to expand their capabilities and meet growing market demands. Available for bulk ordering, this grinding machine for sale offers long-term value and reliability, ensuring stable precision over extended use. Whether you're upgrading your equipment or expanding your operations, this precision grinding machine is a strategic investment for sustained industrial success.



Product Advantages

1. Unmatched Precision and Rigidity
The Shanjmc PSG/GM Series precision surface grinding machine is crafted from HT300 high-grade material, ensuring exceptional rigidity and resistance to deformation. This surface grinding machine achieves grinding accuracy within 0.008mm over a 3-meter travel, making it ideal for grinding machine manufacturers seeking reliable performance. Its robust gantry structure with enlarged columns provides excellent shock absorption, ensuring stable precision over long-term use.

2. Advanced Operational Features
Equipped with a hydrostatic spindle, the Shanjmc PSG/GM Series precision grinding machine offers high rotational accuracy and low noise, essential for high-efficiency grinding. The integration of Japanese THK, German INA, Rexroth, and Taiwan PMI SP grade ultra-precision linear guides ensures smooth operation and long service life. This surface grinding machine is perfect for grinding machine manufacturers who prioritize quality and performance.

3. Scalable Design for Versatility
The Shanjmc PSG/GM Series precision surface grinding machine is designed to adapt to future demands with its scalable design, accommodating various workbench sizes and load capacities. This grinding machine for sale is suitable for a wide range of applications, making it a strategic investment for grinding machine manufacturers looking to expand their capabilities and meet growing market demands.

4. Enhanced Production Efficiency
Featuring an electromagnetic chuck base with steel plate milling cavity technology and all-copper coils, this precision grinding machine provides adjustable magnetic force for quick clamping and release of workpieces. This significantly enhances production efficiency, making the Shanjmc PSG/GM Series surface grinding machine a valuable asset for grinding machine manufacturers aiming for increased productivity.

5. Long-Term Value and Reliability
Available for bulk ordering, the Shanjmc PSG/GM Series precision surface grinding machine offers long-term value and reliability. Its durable construction ensures stable precision over extended use, making it an ideal choice for grinding machine manufacturers seeking a dependable grinding machine for sale that supports sustained industrial success.
Precision Surface Grinding Machine With HT300 High Grade 0.008mm Grinding Accuracy
About Us

Shanjmc is a leader in precision machinery manufacturing, dedicated to advancing industrial standards with our innovative solutions. Our PSG/GM Series precision surface grinding machines are crafted from HT300 high-grade material, ensuring high strength, resistance to deformation, and excellent shock absorption. We prioritize quality and performance, equipping our machines with advanced features like hydrostatic spindles and ultra-precision linear guides from renowned brands such as Japanese THK, German INA, and Taiwan PMI. Our scalable designs accommodate various workbench sizes and load capacities, making them ideal for diverse industrial applications. At Shanjmc, we are committed to providing reliable, high-performance equipment that meets the growing demands of grinding machine manufacturers. Our machines are available for bulk ordering, offering long-term value and stable precision over extended use. Whether you're looking to upgrade your equipment or expand your operations, Shanjmc's precision grinding machines are a strategic investment for sustained industrial success.

Contact Shanjmc today to upgrade your industrial operations with our precision surface grinding machine. Let’s achieve unmatched precision and performance!

FAQ

Who are we?
We are Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of precision surface grinding machines designed for industrial applications. Our PSG/GM Series machines are renowned for their high rigidity and precision, crafted from HT300 high-grade material to ensure stable performance over long-term use.

How can we guarantee quality?
We guarantee quality through rigorous manufacturing processes and the use of premium materials like HT300 high-grade castings. Our machines undergo vibration stress relief and secondary tempering processes to eliminate internal stress, ensuring consistent precision and durability.

What can you buy from us?
You can purchase a wide range of industrial equipment from us, including precision surface grinding machines, CNC turning centers, machining centers, and tailor-made automation solutions. Our products are designed to meet the demanding needs of professional and bulk ordering applications.

Why should you buy from us not from other suppliers?
Choosing Shanjmc means investing in unmatched precision and rigidity. Our machines feature advanced components like hydrostatic spindles and ultra-precision linear guides, ensuring high efficiency and long service life. We offer scalable designs to adapt to future demands, providing long-term value and reliability.

What services can we provide?
We offer comprehensive services including product customization, bulk ordering options, and tailor-made automation solutions. Our team is dedicated to enhancing your production efficiency and expanding your operational capabilities.

Can I customize this product for my business?
Yes, our precision surface grinding machines can be customized to meet your specific business needs. We offer scalable designs that accommodate various workbench sizes and load capacities, ensuring that our machines fit seamlessly into your production environment.

Do you offer wholesale pricing?
Absolutely, we provide competitive wholesale pricing for bulk orders. Our precision surface grinding machines are ideal for grinding machine manufacturers looking to expand their capabilities and meet growing market demands, offering long-term value and reliability.
