Auto conveyor X Ray inspetion detector 4080F for Food, Fish Bones inspection
Auto conveyor X Ray inspetion detector 4080F for Food, Fish Bones inspection
Auto conveyor X Ray inspetion detector 4080F for Food, Fish Bones inspection
Auto conveyor X Ray inspetion detector 4080F for Food, Fish Bones inspection
Auto conveyor X Ray inspetion detector 4080F for Food, Fish Bones inspection
Auto conveyor X Ray inspetion detector 4080F for Food, Fish Bones inspection
Specifications
Model Number :
4080F
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
USD10000
Payment Terms :
T/T
Supply Ability :
1000pcs
Delivery Time :
25 working days
Packaging Details :
wooden cse
Model :
auto conveyor X ray inspection system
Appliccation :
For fish,meat inspection
Detection tunnel :
400mmx160mm
Description

X ray,X ray detector,X ray inspection,X ray scannner,X-ray detection machines,X ray detector machines, X ray scanner, X ray detectors

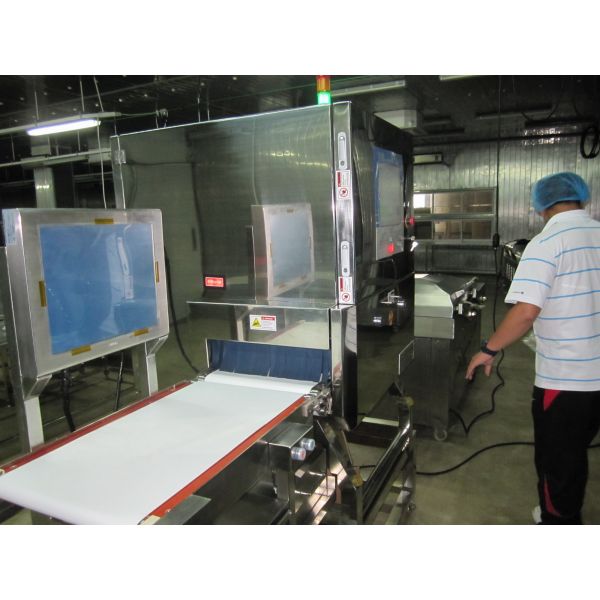

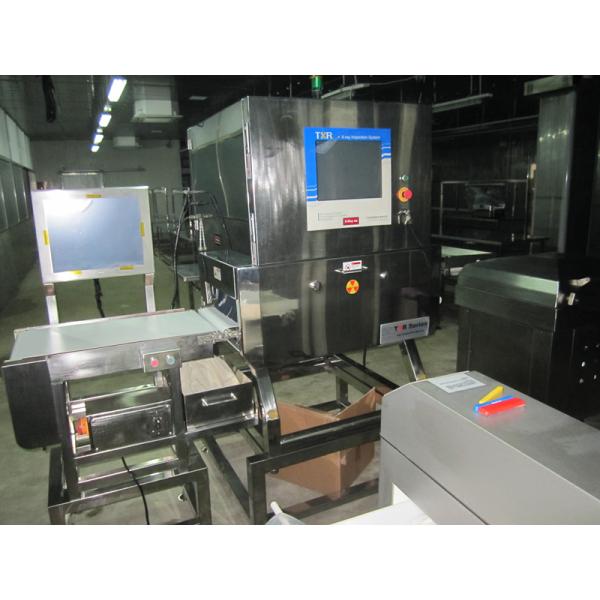

X-ray Inspection System for Fish Bones

The contaminants inspection for the bones (fish bones and chicken bones) mixed in the product in production line.

Suitable for the bones contaminants inspection for pork , fish , chicken etc.

Auto conveyor X Ray inspetion detector 4080F for Food, Fish Bones inspection

X-ray Inspection System TXR-F Series

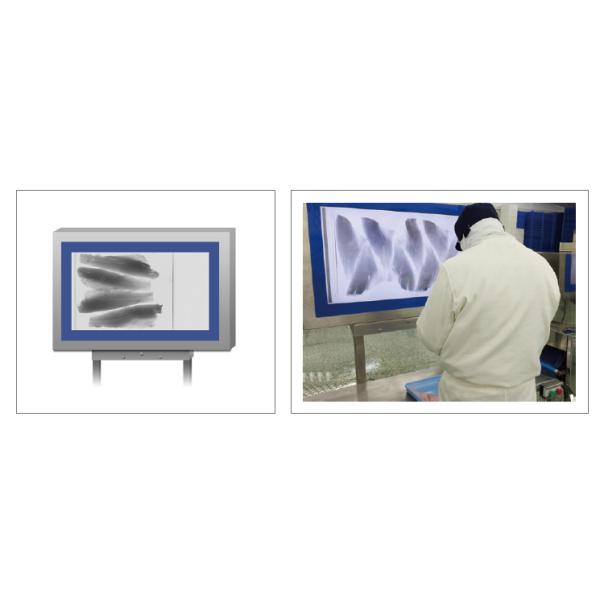

1. Unique image processing algorithms, tiny fish bones also can be clearly shown

2. External HD screen, high identification of fish bones

Auto conveyor X Ray inspetion detector 4080F for Food, Fish Bones inspection

Auto conveyor X Ray inspetion detector 4080F for Food, Fish Bones inspection

Specifications

Specifications TXR-4080F
X-ray Tube MAX. 80kV, 350W
Inspection Width 400mm
Inspection Height 100mm
Best Inspection Sensitivity SUS BallΦ0.3mm,SUS WireΦ0.2*2mm
Conveyor Speed 5-20m/min
Display Screen

Full-color TFT 15" Touch Screen

(HD 19",30,"42" screen is optional)
O/S Windows XP Professional
Connectivity LAN port, USB port
Product Management Complete Product Log
Parameter Adjustment Auto setting/Manual learning
Image Management Image Save/Print/Analysis
Power Supply AC220V (Optional)
Main Material SUS304
Purification Easy to Wash
Temperature Adjustment Industrial Air Conditioning
X-ray Emissions < 1 microsievert per hour
Protection Mode Removable Protective Curtain

Note

The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The sensitivity would be affected according to the products being inspected.
