Description

X-ray, X ray, X ray metal detector, X ray scanner, X ray detector, X-detection machine, metal detectors, metal detection machine

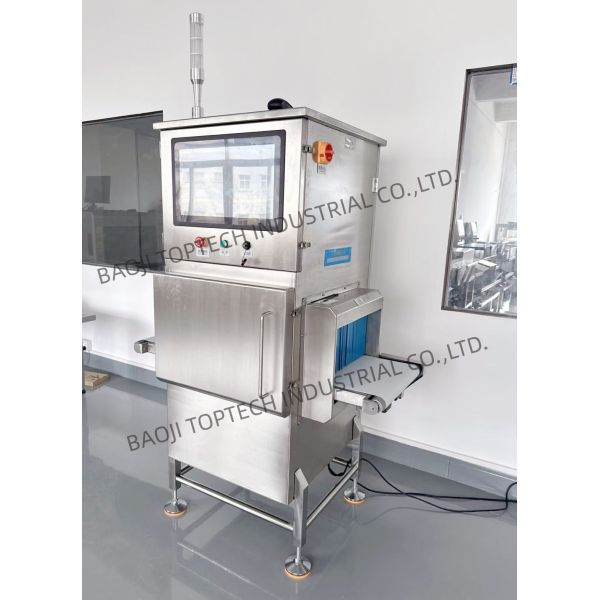

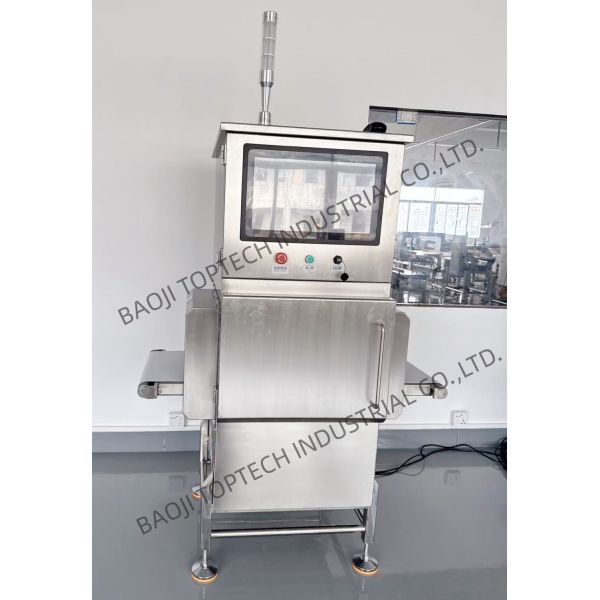

XR-S X-ray Inspection System
The Independent -Developed and High Performance X-ray Inspection System

Competitive Model X Ray Detector for Foods product Inspection


Superior Performance
1. The equipment deliver effective product quality inspection for food, pharmaceutical, chemical and other industries, in addition to detecting contaminants such as metal, glass, bone, shell, hard rubber, hard plastic, it also inspects for products defects such as cracks, bubble, content defects etc. To achieve the complete finished product detection.
2. Excellent automatic detection capability, the accuracy of the metal contaminants such as the SUS ball can reach 0.4mm.
3. It can be used to detect the contaminants in the metal packaging products and it will not be affected by temperature and humidity changes, to achieve the minimum error rate of the rejecting.

Security Design
Professional security design to achieve the innocuous high-accuracy inspection
1. X-ray Light
2. Lead-free protective curtain, which can be contacted with food directly
3. The monitoring of door's opening and closing
4. Emergency Stop Button
Competitive Model X Ray Detector for Foods product Inspection
Security Guarantee
(1) Safety interlock stops X-ray output when the tunnel's integrity is compromised, such as a portion of operator's body is inserted
(2) X-ray emissions are under 1micro-sievert per hour to ensure the safety

Easy Operation

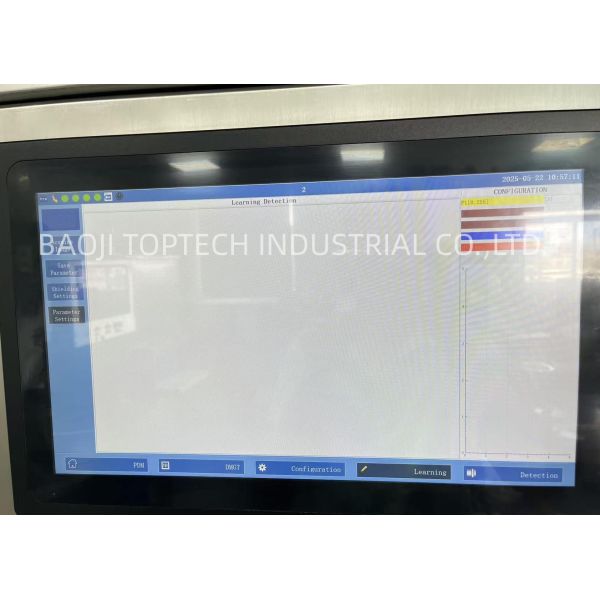

1. Simple and convenient touch-screen control to achieve efficient operations
2. Perfect data management system to achieve the easy saving of the product and image record.

Model XR-S4015
X-ray tube voltage MAX. 80kV, 210W
Belt Width 400 mm
Conveyor Speed 10~60m/s
Screen Full-color TFT 17" Touch Screen
O/S Window 10
Connectivity USB port
Product Management Complete product log
Parameter Adjustment Auto learning/Manual learning
Image Management Auto image save/print/analyse
Power Supply 220V, AC
Body Material SUS304
Purification Easy to wash
Cooling method Compulsory air cooling/Air conditioned cooling
Operation temperature 0-35& deg; C (none conditioning)
Operation humidity 30-85%
X-ray emissions & lt; 1micro-sievert per hour
X-ray protection Lead/Lead-free protective curtain
