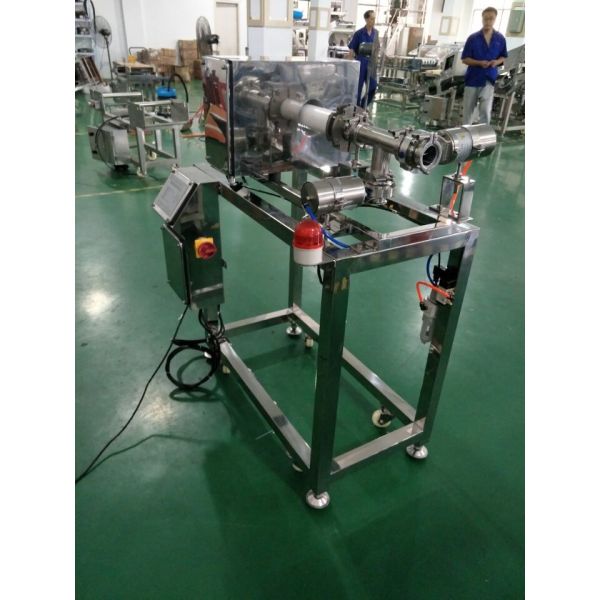

Pipeline Metal detector JL-IMD-L50 metal detector for jam,paste,sauce,milk or Liquid product inspection
Pipeline Metal detector JL-IMD-L50 metal detector for jam,paste,sauce,milk or Liquid product inspection
Pipeline Metal detector JL-IMD-L50 metal detector for jam,paste,sauce,milk or Liquid product inspection
Pipeline Metal detector JL-IMD-L50 metal detector for jam,paste,sauce,milk or Liquid product inspection
Pipeline Metal detector JL-IMD-L50 metal detector for jam,paste,sauce,milk or Liquid product inspection
Pipeline Metal detector JL-IMD-L50 metal detector for jam,paste,sauce,milk or Liquid product inspection
Pipeline Metal detector JL-IMD-L50 metal detector for jam,paste,sauce,milk or Liquid product inspection
Pipeline Metal detector JL-IMD-L50 metal detector for jam,paste,sauce,milk or Liquid product inspection
Specifications
Place of Origin :
Shanghai,China
Certification :
CE
Model Number :
JL-IMD/L50
MOQ :
1pc
Price :
100
Packaging Details :
standard export wooden case
Delivery Time :
15-20 working days
Payment Terms :
by T/T
Supply Ability :
100000pcs
Model :
High accuracy model
Inspection :
liquid proudct,such paste,sauce,jame
Auto reject :
Installed
Detection pipe size :
50mm;65mm;80mm
Name :
metal detector,metal detections machine
HS code :
85437091
alarm :
pilot lamp flash with alarm and conveyor stop
Auto rejection :
By customer optional
Description

Metal detector,metal detectors machine,industrial metal detector,food metal detector,meat metal detector,jam metal detector,sauce metal detector,milk metal detector,digital metal detectors machine,belt metal detector,conveyor metal detectors machine,metal detection machine,detect metal,check metal,find metal,free fall metal detector,pipe metal detector,gravity metal detector

Pipeline Metal detector JL-IMD-L50 metal detector for jam,paste,sauce,milk or Liquid product inspection

Characteristics:

  1. New design for small pipe diameter 50,63,80mm.
  2. Automatic product identification technology, powerful ability to suppress product effect

3. Easy to be integrated in existing sealed pipe system

4. LCD display, Chinese&English operation menu;

5. Compact design, small occupied pipe length

6. Teflon food grade inner tube, high temperature and pressure resistance

7. Fast and accurate rejection valve, not only suitable for the high speed fluid, but also for slow viscous products, less material loss

8. Made of stainless steel, fairly good dustproof, waterproof ability. Easy to clearn.

Pipeline Metal detector JL-IMD-L50 metal detector for jam,paste,sauce,milk or Liquid product inspection

Application:

High stability and sensitivity, suitable for the pump pressure fluid and semi-fluid product, jam, meat paste, sauce, juice, milk, liquid etc

Technical Parameter :

Model: JL-IMD-L50/L63/80 Pipeline Metal Detector
Detection Pipe diameter:

50mm/63mm/80mm

(50mm lightly frame design; 63mm,80mm heavy frame model)
Alarm method: Alarm and lamp flash
Auto reject: Automatically valve reject
Inner Pipe Material: Food Grade Teflon Tube
Display/Operation Panel LCD display with button design
Display/Operation Language

English/Chinese/Spanish

(Spanish Language by customer choose)
Pressure Requirements: ≥0.5Mpa
Power: AC110V/220V, 50-60hz
Net Weight: 150kg-200kgs

Pipeline Metal detector JL-IMD-L50 metal detector for jam,paste,sauce,milk or Liquid product inspectionPipeline Metal detector JL-IMD-L50 metal detector for jam,paste,sauce,milk or Liquid product inspection

Detection sensitivity:

Model Detection Pipe

Detection sensitivity(Φ)

(Test by metal test card in the detection tube only)
L50 50MM Fe≧0.5mm;Non-fe≧1.0mm;Sus≧1.2mm
L63 63MM Fe≧0.6mm; Non-fe≧1.2mm;Sus≧1.5mm
L80 80MM Fe≧0.8mm;Non-fe≧1.5mm;Sus≧2.0mm

More info pls refer http://www.bjtoptech.com
