7 Ton Hydraulic Loader Crane Truck Mounted SHACMAN Diesel Crane Truck
Vehicle Specifications
| Truck Brand |
SHACMAN L3000 Series Truck-mounted Crane |
| Drive Model |
4x2, Left or right hand drive |
| Max. Driving Speed |
90km/h |
Chassis Details
Chassis Brand: SHACMAN
Engine: WEICHAI, WP6.210E32
Power: 210hp/154kw
Emission Standard: EURO Ⅱ
Frame: 870x250(7+4)mm
Wheelbase: 5000mm
Suspension: Front and rear multi-leaf spring
Vehicle Speed Ratio: 11.5T Single-stage bridge 5.286

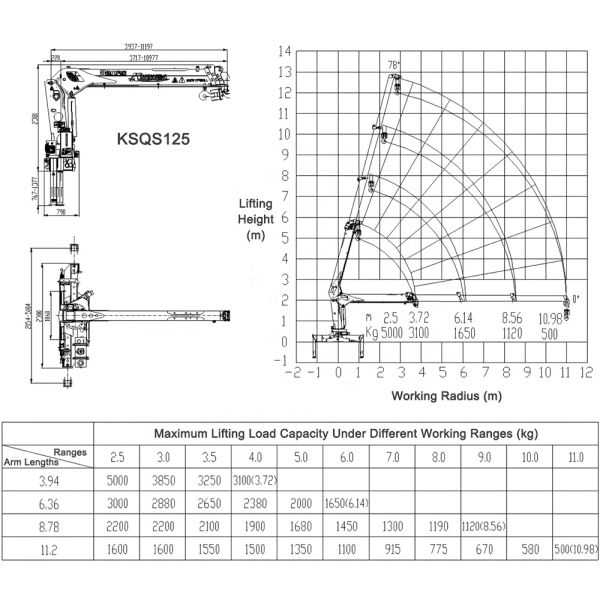

Crane Performance
Max. Lifting Weight: 5000kg
Max. Lifting Torque: 125kN*m
Max. Working Radius: 11.2m
Max. Lifting Height: 12.7m
Luffing Range: 0°~78°
Slewing Angle: 360° full turn
Max. Operating Pressure: 22MPa
Oil Flow Volume: 63L/min
Crane Weight: 2200kg
Product Images
