Specifications
Place of Origin :
SHAANXI,XIAN
Brand Name :
SHACMAN
MOQ :
1
Price :
Negotiable
Delivery Time :
35-55days
Color :
Blue, Green, Yellow, White
Application :
Construction/Warehouse/Terminals/Logistics/Rescue
Rated Lifting Moment :
360kN.m
Machinery Test Report :
Provided
Oil Flow Volume :
63+50L/min
Max. Speed :
90km/h
Emission Standard :
EURO 2
Crane type :
Telescopic Straight Boom Crane
Description
Hydraulic Boom Length 19.6m Wireless Remote Control Construction Tractor Crane Truck with Concrete Panel
Hydraulic Boom Length 19.6m Wireless Remote Control Construction Tractor Crane Truck with Concrete Panel Hydraulic Boom Length 19.6m Wireless Remote Control Construction Tractor Crane Truck with Concrete Panel
Vehicle Specifications
Feature 4x2 Model 6x4 Model 8x4 Model
Drive Type 4x2 6x4 8x4
Engine WP10.300E22 WP10.340E22 WP10.380E22
Power 300hp 340hp 380hp
Emission Standard EURO Ⅱ EURO Ⅱ EURO Ⅱ
Frame 870x300(8+5)mm 870x300(8+5+8)mm 870x300(8+5+8)mm
Wheelbase 5600mm 5775+1400mm 2100+4575+1400mm
Vehicle Speed Ratio 16T HD dual-stage 4.769 16T HD dual-stage 4.769 16T HD dual-stage 5.262

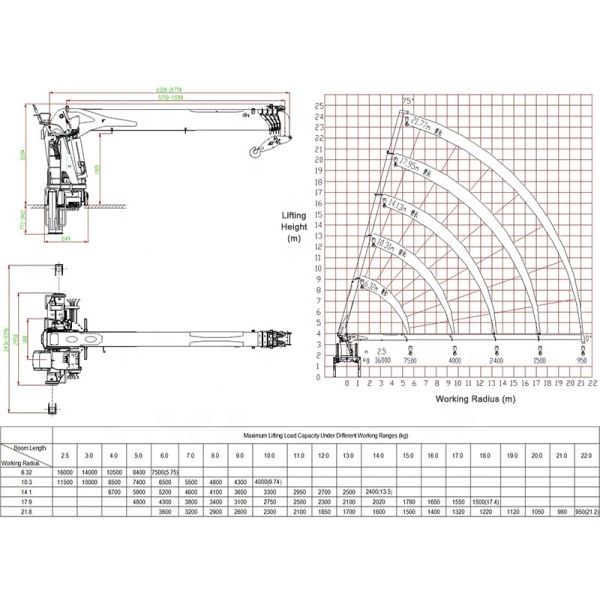

Crane Performance Specifications
Feature 4x2 Model 6x4 Model 8x4 Model
Max. Lifting Weight 5000/6300/7000kg 10000/12000kg 16000/18000/20000kg
Max. Lifting Torque 125/157.5/175kN*m 260/300kN*m 430/470/520kN*m
Max. Working Radius 11.2-13.5m 14.5-21.77m 21.77-23.7m
Max. Lifting Height 12.7-15.3m 16.3-23.1m 24.1-26.4m
Luffing Range 0°～75° 0°～75° 0°～75°
Slewing Angle 360° full turn 360° full turn 360° full turn
Max. Operating Pressure 22/23MPa 26/28Mpa 28Mpa
Oil Flow Volume 63L/min 63+50L/min 80+50L/min
Crane Weight 2200/2330/2420kg 3693/4300kg 6880/6970/7600kg
Hydraulic Boom Length 19.6m Wireless Remote Control Construction Tractor Crane Truck with Concrete Panel Hydraulic Boom Length 19.6m Wireless Remote Control Construction Tractor Crane Truck with Concrete Panel Hydraulic Boom Length 19.6m Wireless Remote Control Construction Tractor Crane Truck with Concrete Panel Hydraulic Boom Length 19.6m Wireless Remote Control Construction Tractor Crane Truck with Concrete Panel
