Specifications
Drive Type :
6×4
Cab Type :
Medium-long Flat Roof Cab
Application :
Mining and heavy construction earthmoving
Brand :
SHACMAN
Tire Spec :
12.00R20 Mixed Pattern
Vehicle Type :
Dump Truck / Tipper Truck
Rear Axle :
16T Double Reduction Axle
Wheelbase :
3775+1400 mm
Product Name :
SHACMAN F3000 6×4 Dump Truck
Front Axle :
HD 9.5 Ton
Cargo Box Size :
5400×2300×1100 mm
Emission Standard :
Euro 2/3
Transmission :
10-speed Manual with PTO
Place of Origin :
SHAANXI, XIAN
Brand Name :
SHACMAN
Fuel Tank :
500L Aluminum Alloy
Max Speed :
90 km/h
Engine Model :
WP10.336E32
Model Number :
F3000 6×4 Dump Truck
Horsepower :
336HP
Version :
Standard Mining Version
Description

SHACMAN F3000 6*4 Dump Truck — 336HP Mining & Construction Workhorse

Full English Attribute & Product Description

1. Product Attribute Table

Attribute ItemSpecification Content
Product Name6*4 Heavy Duty Dump / Tipper Truck
BrandSHACMAN
PlatformF3000
VersionStandard Mining Version
Drive Mode6*4
Engine ModelWP10.336E32
Rated Power336HP
Emission StandardEuro 2/3
Transmission10-speed Manual with PTO
Rear Axle16T Double Reduction Axle
Front AxleHD 9.5 Ton
Wheelbase3775+1400 mm
Frame Dimension850*300 mm
Fuel Tank500L Aluminum Alloy
Max Speed90 km/h
Cab TypeMedium-long Flat Roof Cab
SuspensionMulti-leaf Spring (Front & Rear)
Tire Spec12.00R20 Mixed Pattern
Cargo Box Size5400*2300*1100 mm

2. Basic Configuration

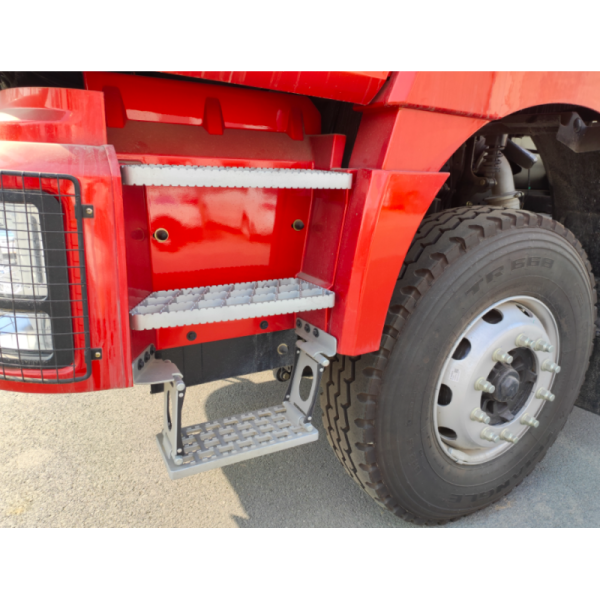

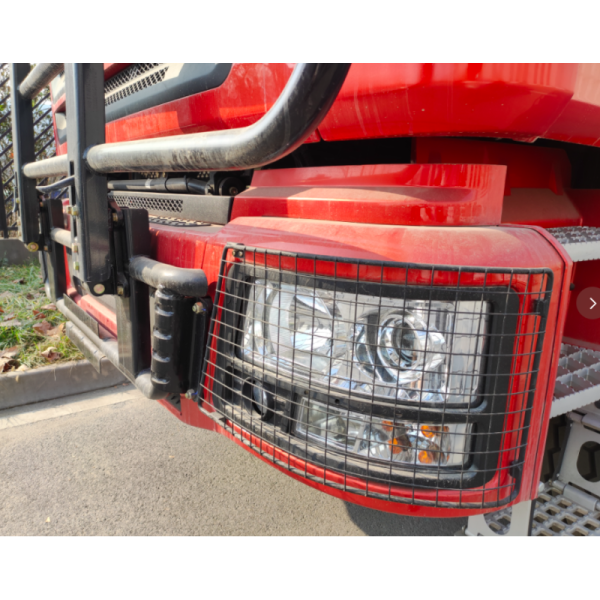

Equipped with F3000 medium-long flat roof cab, hydraulic driver seat, standard rearview mirrors, electronically controlled air conditioner, electric window regulators and manual cab tilting mechanism. Fitted with metal bumper with lamp protection mesh, three-stage boarding steps, single oil bath air filter, standard exhaust system, water tank guard grille, tail lamp protective grille, rear stabilizer bar and 180Ah maintenance-free battery. The WP10.336E32 engine delivers strong low-end torque — pulls loaded from idle without needing to rev high, which is what you want crawling around a mine site all day.

3. Export Configuration

Comes with WABCO 4-channel ABS, iron air reservoir, reverse buzzer, 2KG fire extinguisher, daytime running lights, deluxe on-board tool kit, work lamps and safety belts. Standard export packaging with full English/Spanish documentation. Custom paint, chassis reinforcement and regional compliance packages available on request.

4. Optional Configuration

Optional 12-speed transmission with QH50 PTO, 600L aluminum alloy fuel tank, heavy-duty mining tires, rear underrun protection structure, cab rollover protection, and other customized parts per destination market requirements.
