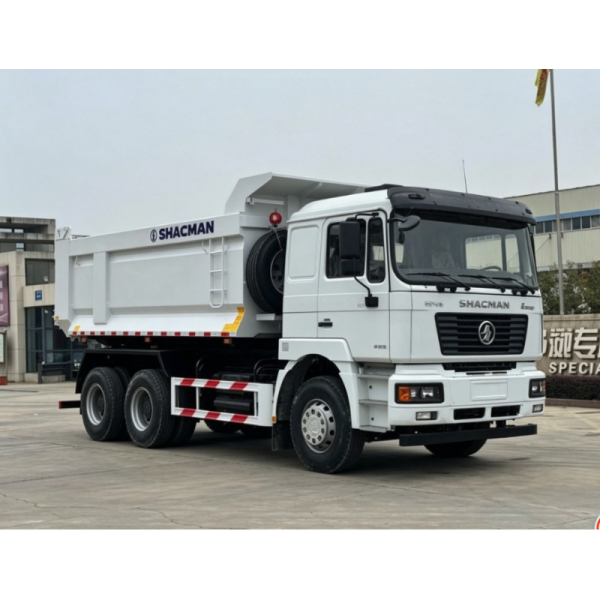

SHACMAN F3000 6x4 Reinforced Mining Dump Truck 340HP Heavy Duty Tipper SX3255JR404
SHACMAN F3000 6x4 Reinforced Mining Dump Truck 340HP Heavy Duty Tipper SX3255JR404
SHACMAN F3000 6x4 Reinforced Mining Dump Truck 340HP Heavy Duty Tipper SX3255JR404
SHACMAN F3000 6x4 Reinforced Mining Dump Truck 340HP Heavy Duty Tipper SX3255JR404
SHACMAN F3000 6x4 Reinforced Mining Dump Truck 340HP Heavy Duty Tipper SX3255JR404
SHACMAN F3000 6x4 Reinforced Mining Dump Truck 340HP Heavy Duty Tipper SX3255JR404
SHACMAN F3000 6x4 Reinforced Mining Dump Truck 340HP Heavy Duty Tipper SX3255JR404
SHACMAN F3000 6x4 Reinforced Mining Dump Truck 340HP Heavy Duty Tipper SX3255JR404
SHACMAN F3000 6x4 Reinforced Mining Dump Truck 340HP Heavy Duty Tipper SX3255JR404
SHACMAN F3000 6x4 Reinforced Mining Dump Truck 340HP Heavy Duty Tipper SX3255JR404
Specifications
Model Number :
Shacman F3000 6×4 Dump truck
Delivery Time :
55days
Place of Origin :
Shaanxi, China
MOQ :
1 Unit
Price :
Negotiable
Brand Name :
SHACMAN
Description

Product Overview

This is SHACMAN F3000 reinforced version 6×4 heavy-duty dump tipper truck, model SX3255JR404, powered by WP10.340E22 340HP Euro II engine with intake heating and water heating preheating device. It adopts 10JSD180 transmission, 16T HD double reduction cast axle with final ratio 5.92, strong bearing capacity, widely used in mining, earthmoving, construction site muck transportation, gravel and bulk cargo hauling.

Standard Basic Configuration

  1. Cab: Extended flat roof cab without top deflector, manual tilting structure
  2. Seat & Electric: Hydraulic main driver seat, electric window lifter, automatic constant temperature air conditioner, 180Ah low-temperature storage battery
  3. Exterior & Protection: Metal bumper with lamp protection net, three-stage step, bath type air filter, water tank guard, rear axle stabilizer bar, tail light protection fence
  4. Mirror & Exhaust: Ordinary rearview mirror, standard exhaust system

Country-Specific Export Configuration

Four-point hydraulic suspension, cab with sunroof (no rear window), sound insulation panel, sun visor decorative lamp, full English identification & SHACMAN brand logo, rear fender, reverse buzzer, wheel chock, telescopic shift lever, deluxe tool box set.

Optional Extra Configuration

Rear view camera, Shacman telematics terminal, full trailer electrical interface, floor heating interface, 16T HD double reduction cast axle (ratio 5.262), independent air heater + independent water heater.

Core Chassis Parameter

  • Platform: F3000 | Drive: 6×4 | Version: Reinforced Version
  • Wheelbase: 3975+1400mm | Rear suspension: 1000mm
  • Front axle: HD 9.5T front axle | Suspension: Multi-leaf spring suspension
  • Fuel tank: 400L aluminum alloy tank
  • Tire: 12.00R20 mixed pattern tire
  • Cargo box dimension: 5800×2300×1500mm

Advantage & Service

  • Mature reliable structure, high adaptability for harsh road & mining working conditions
  • Complete export certification, one-stop customs declaration & shipping document service
  • Customizable optional configurations to meet different country emission & regulation requirements
  • Global spare parts supply network, convenient maintenance for overseas clients
    Attribute Name Attribute Value
    Brand SHACMAN
    Model F3000 Reinforced Version
    Vehicle Model SX3255JR404
    Drive Type 6×4
    Engine Model WP10.340E22 with intake heating and water preheating
    Horsepower 340HP
    Emission Standard Euro II
    Transmission 10JSD180 iron shell + QH50
    Rear Axle 16T HD double reduction cast axle
    Axle Ratio 5.92
    Front Axle HD 9.5T front axle
    Frame Size 850×300mm (8+7 layers)
    Wheelbase 3975+1400mm
    Rear Suspension Length 1000mm
    Cab Type Extended flat roof cab
    Suspension Front and rear multi-leaf spring suspension
    Fuel Tank 400L aluminum alloy fuel tank
    Tire Size 12.00R20 mixed pattern tire
    Cargo Box Size 5800×2300×1500mm
    Product Category Heavy Duty Dump Tipper Truck
    Application Mining transportation, construction earthwork, bulk cargo transportation
    Condition Brand New
    Optional Accessories Rear view camera, Shacman telematics terminal, full trailer electrical interface, floor heating interface, 5.262 ratio double reduction axle, independent air & water heater
    Export Standard Configuration Four-point hydraulic suspension, cab with sunroof, full English identification, reverse buzzer, deluxe toolbox, rear fender
