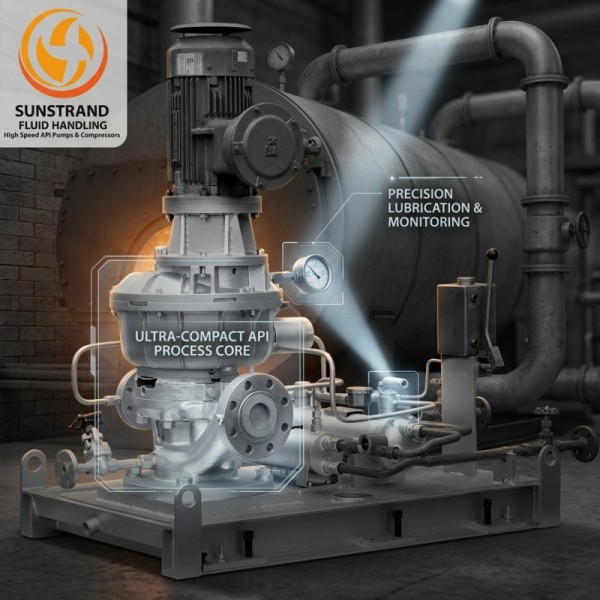

High Pressure Water Injection High Speed Centrifugal Pump 500 kW API 610 80 M3/Hr 200 Bar
High Pressure Water Injection High Speed Centrifugal Pump 500 kW API 610 80 M3/Hr 200 Bar
Specifications
Number of Stages :
Single Stage with High Speed Gearbox
Brand Name :
Sunstrand
Motor Power :
500 kW (670 HP)
Price :
USD 35,000 - 85,000 / Set
Maximum Flow Rate :
80 m³/hr (352 gpm)
Place of Origin :
Sichuan, China
Gearbox Ratio :
6.5:1 to 8.5:1 High Speed Pinion
Payment Terms :
T/T,L/C
Seal Configuration :
API Plan 53C Double Pressurized
Material of Construction :
Duplex Stainless Steel (UNS S31803)
Certification :
ISO 9001:2015, API 610, ATEX II 2G
Packaging Details :
Heavy-duty steel frame crate with VCI protection and shock indicators
Model Number :
LMV-WI-80
Maximum Discharge Pressure :
200 bar (2,900 psi)
MOQ :
1 Set
Supply Ability :
4 Sets per Month
Delivery Time :
75-100 days for production
Pump Model :
LMV-WI-80
Description

High Pressure Water Injection High Speed Centrifugal Pump

Designed for enhanced oil recovery water injection services, this API 610 compliant high speed centrifugal pump delivers exceptional discharge pressures up to 200 bar in a compact single-stage footprint. The integral speed-increasing gearbox drives the impeller to speeds exceeding 20,000 RPM, achieving traditional multi-stage pressure capabilities in a fraction of the footprint.

Water Injection Performance

ParameterSpecification
Maximum Flow Rate80 m³/hr (352 gpm)
Maximum Discharge Pressure200 bar (2,900 psi)
Maximum Differential Head2,000 m (6,560 ft)
Motor Power500 kW (670 HP)
Operating Speed18,000 - 24,000 RPM (high speed shaft)
Material GradeDuplex SS UNS S31803 (2205)
Seal SystemAPI Plan 53C Double Pressurized with Barrier Fluid
Max Case Pressure250 bar (3,625 psi)
Nozzle Configuration3" Suction * 2" Discharge ANSI 1500# RTJ

Engineering Highlights

  • Single-Stage High Pressure: Speed-increasing gearbox eliminates the complexity and maintenance burden of multi-stage barrel pumps while matching their pressure capability.
  • Duplex Stainless Steel Construction: UNS S31803 metallurgy provides superior chloride stress corrosion cracking resistance for produced water and seawater injection services.
  • Anti-Erosion Impeller Design: CFD-optimized hydraulic passages with enhanced vane thickness minimize erosion from entrained solids in injection water.
  • Smart Instrumentation: Integrated vibration monitoring, bearing temperature RTDs, and thrust position probes for condition-based maintenance.

Field Applications

Produced water reinjection, seawater injection for reservoir pressure maintenance, aquifer disposal, waterflood operations, and enhanced oil recovery (EOR) programs in onshore and offshore oilfield developments.
