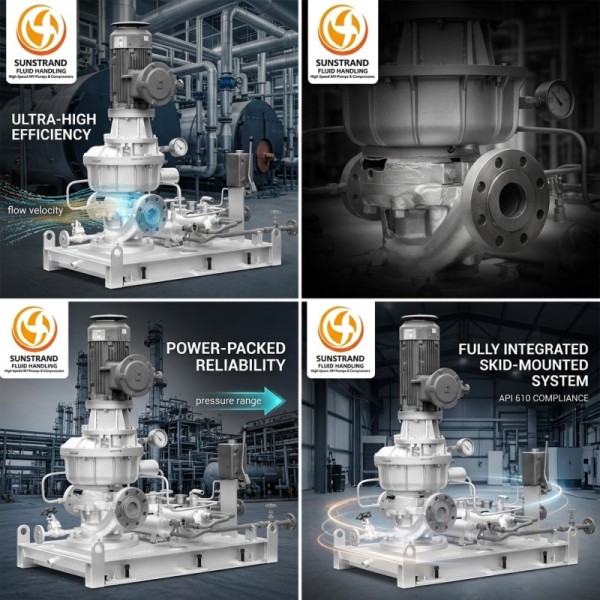

NACE MR0175 Sour Service High Speed Centrifugal Pump CRA Clad API 610 OH6 45 M3/Hr
NACE MR0175 Sour Service High Speed Centrifugal Pump CRA Clad API 610 OH6 45 M3/Hr
Specifications
Maximum Flow Rate :
45 m³/hr (198 gpm)
Packaging Details :
Export-grade plywood case with VCI protection and H2S warning labels
Price :
USD 18,000 - 48,000 / Set
Hardness Control :
≤ 22 HRC (weld overlay) / ≤ 34 HRC (base)
Delivery Time :
50-75 days for production
H2S Partial Pressure Rating :
Up to 1.5 bar (NACE Level VII)
Brand Name :
Sunstrand
Certification :
ISO 9001:2015, NACE MR0175/ISO 15156
Seal Configuration :
Double Pressurized Cartridge (API Plan 53B)
Material Grade :
AISI 316L with Alloy 625 Overlay
Model Number :
LMV-SOUR-45
Payment Terms :
T/T,L/C
Motor Power :
90 kW (120 HP)
Place of Origin :
Sichuan, China
MOQ :
1 Set
Maximum Head :
1,100 m (3,610 ft)
Supply Ability :
6 Sets per Month
Pump Model :
LMV-SOUR-45
Description
NACE MR0175 Sour Service High Speed Centrifugal Pump CRA Clad API 610 OH6 45 M3/Hr
NACE MR0175 Sour Service High Speed Centrifugal Pump

Specifically engineered for upstream and downstream sour hydrocarbon services containing hydrogen sulfide, this high speed centrifugal pump meets stringent NACE MR0175/ISO 15156 material requirements for sulfide stress cracking resistance. Corrosion-resistant alloy (CRA) weld overlay on all wetted surfaces ensures long service life in aggressive sour environments.

Sour Service Specifications
Parameter Specification
Maximum Flow Rate 45 m³/hr (198 gpm)
Maximum Head 1,100 m (3,610 ft)
Motor Power 90 kW (120 HP)
H2S Partial Pressure Up to 1.5 bar (NACE Level VII)
Wetted Material 316L Base + Alloy 625 (UNS N06625) Weld Overlay
Max Hardness (Overlay) ≤ 22 HRC
Max Hardness (Base Metal) ≤ 34 HRC
Seal System API Plan 53B Double Pressurized Barrier Fluid
Bearing Housing Purge and Vent with Breather/Drain
Quality Assurance
  • Full Material Traceability: EN 10204 3.1 certification on all pressure-retaining and wetted components.
  • PMI Verification: Positive Material Identification performed on all CRA weld overlays and base materials.
  • Hardness Testing: 100% hardness traverse on all CRA cladding per NACE MR0175 Part 3.
  • NDT Package: Radiographic and liquid penetrant examination of all butt welds and overlay surfaces.
  • HIC/SSC Testing: Optional hydrogen-induced cracking and sulfide stress cracking coupons per NACE TM0284/TM0177.
Typical Applications

Sour crude transfer, produced water reinjection, amine regeneration feed, sour condensate pumping, and acid gas removal services in gas plants, refineries, and upstream production facilities operating with H2S-containing process fluids.
