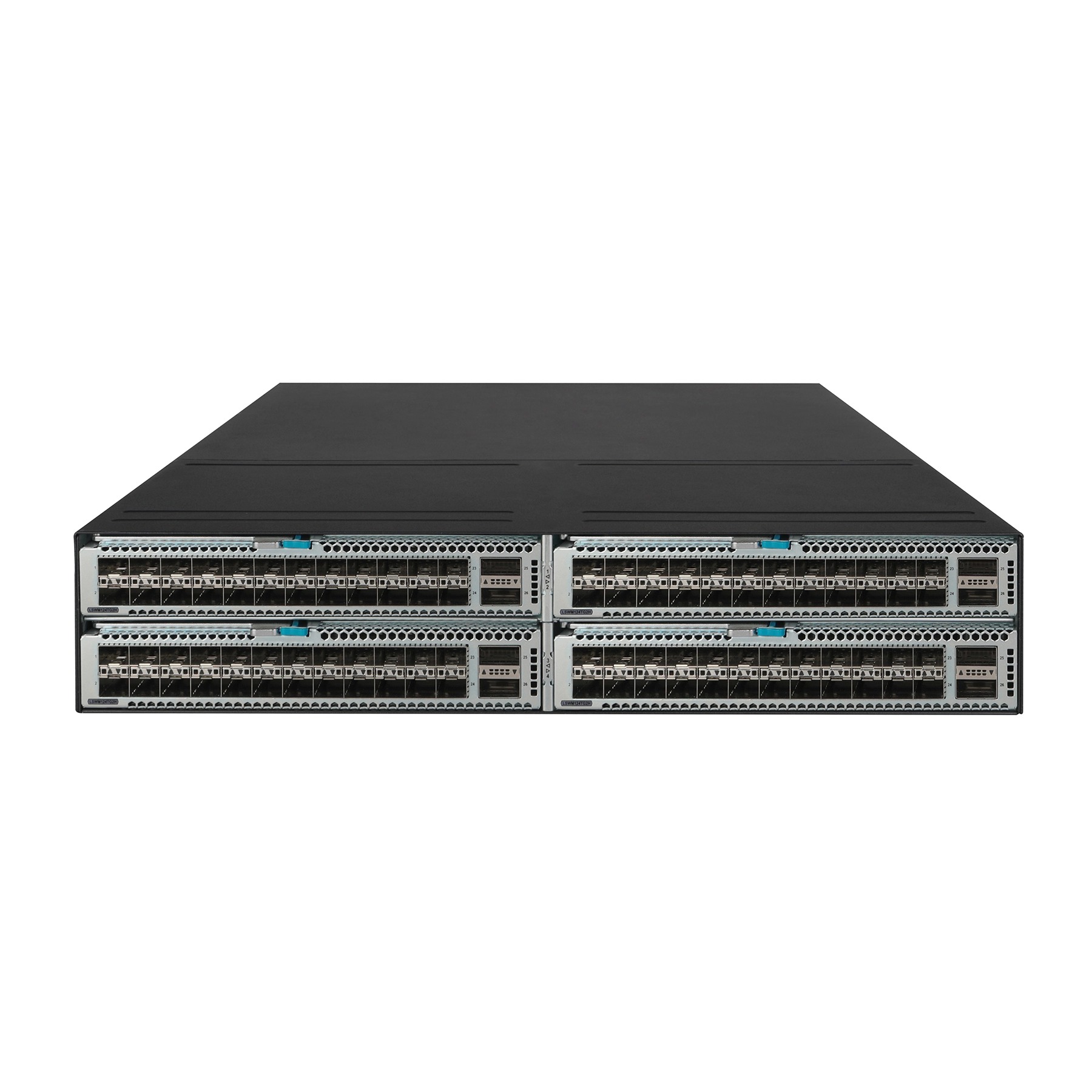

H3C S9850-4C Data Center Switch with 6.4 Tbps Switching Capacity, 32*100G Ports, and Modular Power Supplies
H3C S9850-4C Data Center Switch with 6.4 Tbps Switching Capacity, 32*100G Ports, and Modular Power Supplies
H3C S9850-4C Data Center Switch with 6.4 Tbps Switching Capacity, 32*100G Ports, and Modular Power Supplies
H3C S9850-4C Data Center Switch with 6.4 Tbps Switching Capacity, 32*100G Ports, and Modular Power Supplies
Specifications
Chassis :
LS-9850-4C /LS-9850-4C-H1
Model Number :
S9850-4C
CPU :
LS-9850-4C-H1: 4 cores, 2.2 GHz
Delivery Time :
2-3 work days
Out-of-band management port :
One GE copper port and one GE fiber port
Supply Ability :
50pcs per week
Switching capacity :
6.4 Tbps
Item :
S9850-4C
Brand Name :
H3C
Serial console port :
1
Payment Terms :
T/T
Dimensions (H × W × D) :
88.1 × 440 × 660 mm (3.47 × 17.32 × 25.98 in)
Place of Origin :
China
Weight(Full loaded) :
≤ 27 kg (59.53 lb)
MOQ :
1/set
Description
Product Overview

H3C S9850 high-density intelligent series switches is developed for data centers and cloud computing networks. It provides powerful hardware forwarding capacity and abundant data center features. It provides up to 32*100G ports and 2 out-of-band management ports (one fiber port and one copper port). The 100G ports are 100G/40G autosensing and each can be split into four interfaces. This enables the switch to provide up to 128*25G or 10G ports. The switch supports modular power supplies and fan trays. By using different fan trays, the switch can provide field-changeable airflows.

The switch is an ideal product for high-density 100GE or 25GE accessing and aggregation at data centers and cloud computing networks. It can also operate as a TOR access switch on an overlay or integrated network.

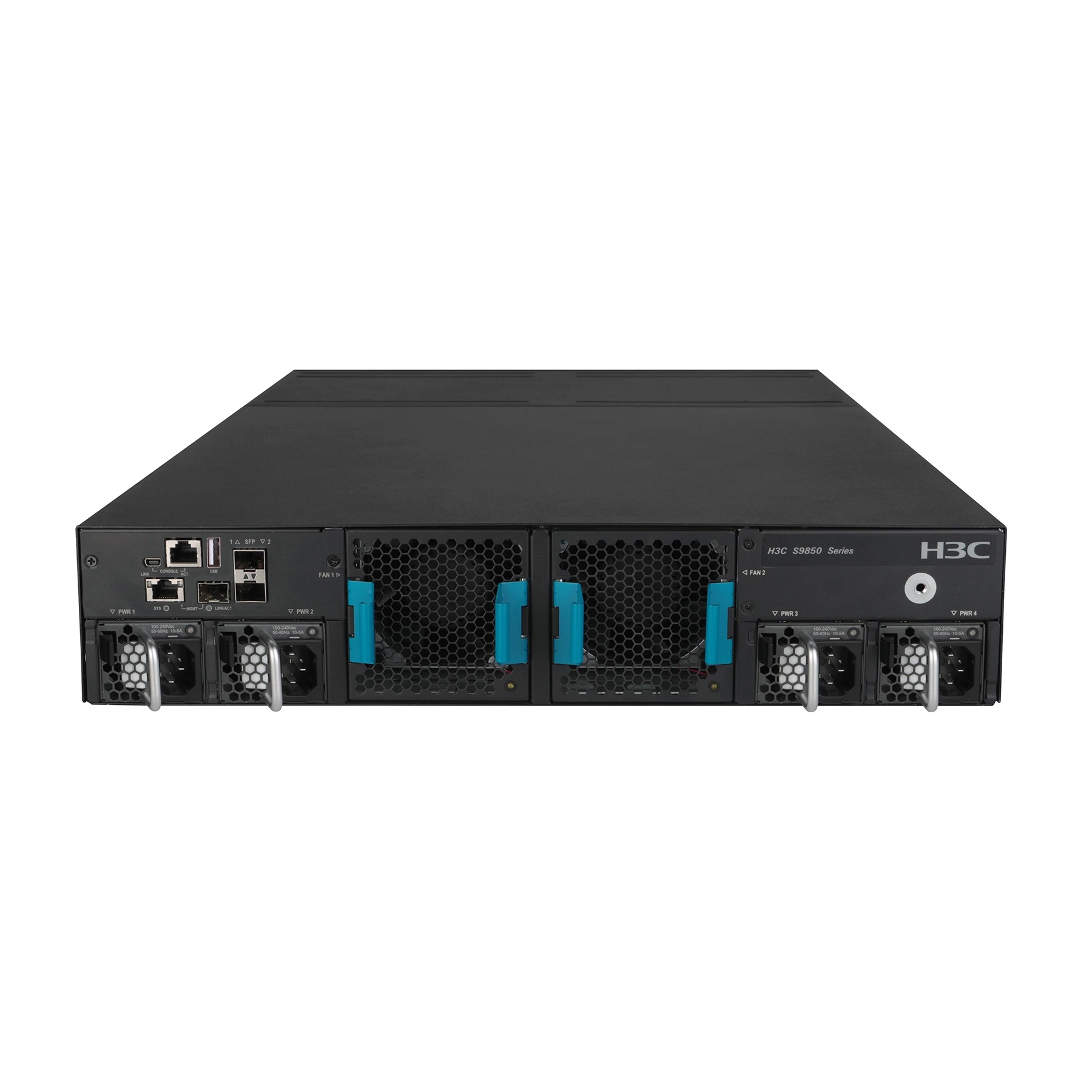

The switch provides 4 × service slots, 2 × 1G SFP ports, 2 × fan tray slots, 2 × out-of-band management ports, 1 × mini USB console port, and 1 × USB port. The switch uses 650W AC or DC removable power modules and supports 2+2 power module redundancy.

Technical Specifications
Item S9850-4C
Chassis LS-9850-4C /LS-9850-4C-H1
Dimensions (H × W × D) 88.1 × 440 × 660 mm (3.47 × 17.32 × 25.98 in)
Weight(Full loaded) ≤ 27 kg (59.53 lb)
Serial console port 1
Out-of-band management port One GE copper port and one GE fiber port
Mini USB console port 1
USB port 1
QSFP28/QSFP+ /
SFP port 2
Expansion slot 4
CPU LS-9850-4C-H1: 4 cores, 2.2 GHz
Flash/SDRAM 8GB/8GB
Latency < 1μs (64-byte )
Switching capacity 6.4 Tbps
Forwarding capacity 2400 Mpps
Buffer 32M
AC-input voltage 90v to 264v
DC-input voltage –40v to –72v
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating humidity 5% to 95%, noncondensing
