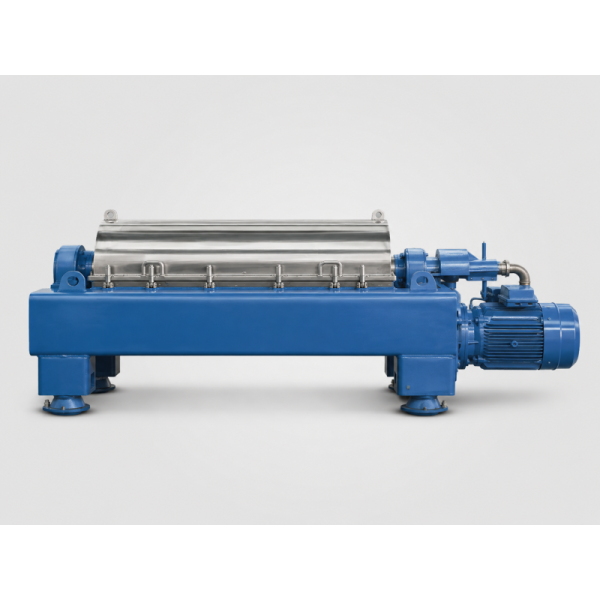

The Decanter Centrifuge for Nickel Cobalt Manganese Hydroxide Slurry Dewatering is designed for continuous solid-liquid separation, NCM precursor recovery, slurry thickening, and process-liquid clarification.

It is suitable for NCM hydroxide precipitation slurry, washing slurry, classification overflow, off-spec material recovery, and battery-material wastewater treatment.

The centrifuge separates nickel cobalt manganese hydroxide particles and other suspended solids from the liquid phase. Corrosion-resistant materials, wear protection, and contamination-control configurations can be selected according to the process conditions.

• NCM hydroxide precursor slurry dewatering
• Precipitation slurry thickening
• Precursor washing slurry treatment
• Fine NCM particle recovery
• Mother-liquor clarification
• Filter press feed thickening
• Process-water recycling
• Off-spec precursor recovery
• Battery-material wastewater pretreatment

Peony provides continuous separation solutions for NCM precursor recovery, slurry thickening, process-liquid clarification, and downstream filtration preparation.

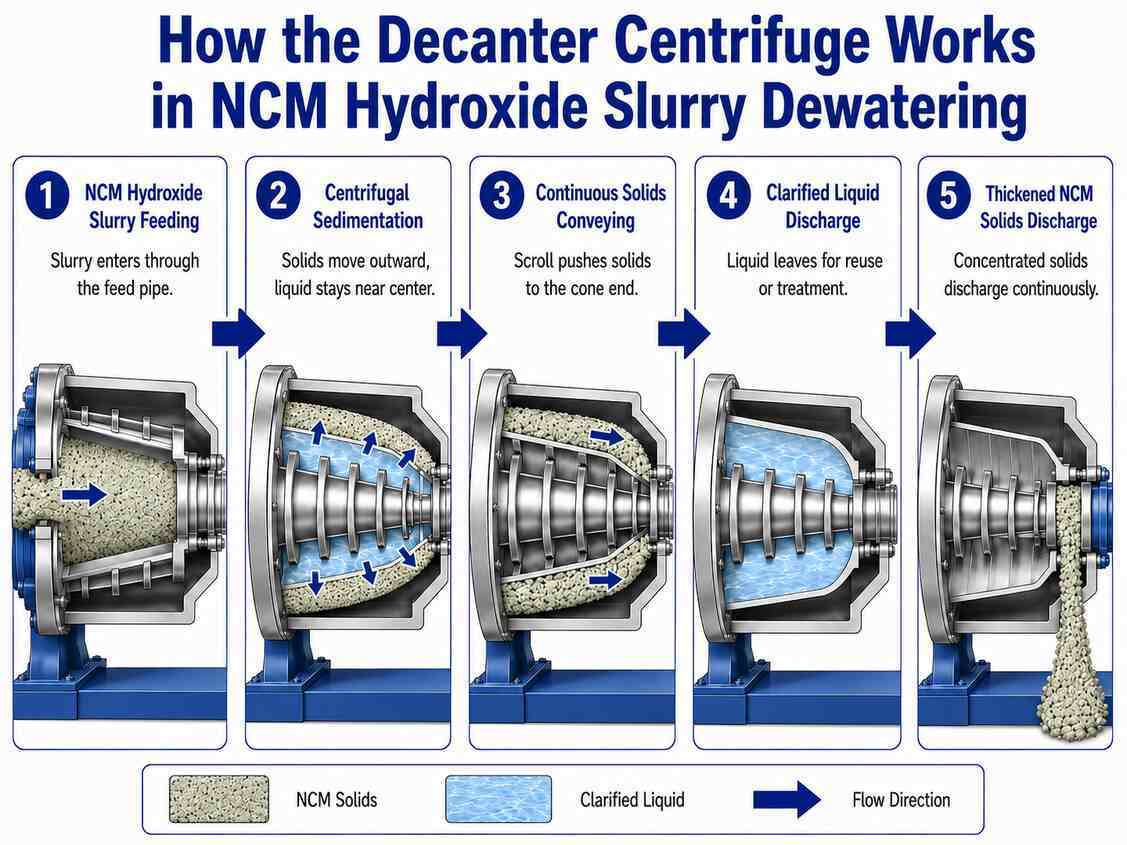

NCM Precipitation / Washing / Classification
→ Agitated Slurry Tank
→ Optional Conditioning
→ Decanter Centrifuge
→ Thickened NCM Hydroxide Solids
→ Filter Press / Dryer / Reprocessing / Storage

Clarified Liquid
→ Process-Liquid Tank
→ Recycle / Polishing Filtration / Further Treatment

Peony Can Provide

• NCM slurry testing and centrifuge selection
• Agitated slurry buffer tank
• Controlled feed pump
• Optional dosing and mixing system
• Adjustable bowl and differential speed
• Pond-depth control
• Corrosion-resistant wetted parts
• Wear-resistant internal components
• Contamination-control configuration
• Clarified-liquid collection system
• PLC and VFD automatic control
• Connection to filter press or dryer

Particle Size

Fine NCM hydroxide particles may settle slowly. Particle-size distribution and settling tests should be checked before selection.

Slurry Concentration and Viscosity

High solids concentration or viscosity may reduce processing capacity. Stable feeding is important for consistent separation.

Liquid Composition

The liquid phase may contain ammonium salts, sulfates, alkalis, complexing agents, or residual metal ions. The complete composition should be provided for material selection.

Product Purity

NCM precursor production may have strict contamination limits. Wetted materials and wear-resistant components should be selected carefully.

Washing and Downstream Process

The required discharge concentration depends on whether the solids are sent to further washing, filter pressing, drying, or reprocessing.

High NCM Precursor Recovery

High centrifugal force continuously recovers valuable nickel cobalt manganese hydroxide particles.

Stable Slurry Thickening

Adjustable operating parameters maintain stable separation under changing feed conditions.

Lower Downstream Load

Pre-thickening reduces the liquid volume entering filter presses, washers, or dryers.

Process-Liquid Recovery

Clarified liquid can be recycled or transferred to further metal recovery and treatment.

Purity and Corrosion Control

Customized materials and internal protection support corrosive and high-purity battery-material processes.

Please provide:

• NCM composition and process stage
• Particle size and solids concentration
• Slurry density, viscosity, pH, and temperature
• Liquid composition and purity requirement
• Required capacity and recovery target
• Downstream washing, filtration, or drying process

Peony welcomes cooperation with NCM precursor manufacturers, cathode-material plants, battery recycling companies, engineering contractors, wastewater treatment companies, distributors, and industrial separation partners.

We support partners with slurry testing, centrifuge selection, corrosion-resistant materials, contamination-control design, process-liquid recovery, installation guidance, commissioning, spare parts, and after-sales service.

Send us your NCM hydroxide slurry information, including particle size, solids concentration, liquid composition, required capacity, recovery target, purity requirement, and downstream arrangement. Our engineering team will recommend a suitable decanter centrifuge solution for your nickel cobalt manganese hydroxide slurry dewatering process.
