Commercial HVAC Indoor Air Device Amphenol T8100-H-GN Wall Mount CO2 Humidity Temperature Transmitter
Commercial HVAC Indoor Air Device Amphenol T8100-H-GN Wall Mount CO2 Humidity Temperature Transmitter
Commercial HVAC Indoor Air Device Amphenol T8100-H-GN Wall Mount CO2 Humidity Temperature Transmitter
Commercial HVAC Indoor Air Device Amphenol T8100-H-GN Wall Mount CO2 Humidity Temperature Transmitter
Commercial HVAC Indoor Air Device Amphenol T8100-H-GN Wall Mount CO2 Humidity Temperature Transmitter
Commercial HVAC Indoor Air Device Amphenol T8100-H-GN Wall Mount CO2 Humidity Temperature Transmitter
Specifications
Description :
Multifunction RoHS
Mfr. Part # :
T8100-H-GN
Model Number :
T8100-H-GN
Description

Product Overview

The Telaire Ventostat 8000 series wall-mount transmitters offer simultaneous measurement of CO2, humidity, and temperature, designed for controlled ventilation in commercial HVAC applications. These devices are crucial for maintaining indoor air quality, occupant health, and energy efficiency by preventing over-ventilation. Featuring a patented Absorption Infrared Gas sensing engine and ABC Logic self-calibration system, they provide high accuracy with minimal maintenance, including a lifetime CO2 calibration guarantee for T8100 and T8300 models. Their two-piece design allows for easy installation and replacement without rewiring. Available in various configurations including models with displays and BACnet output, they are ideal for controlling specific areas like conference rooms, classrooms, and meeting halls.

Product Attributes

  • Brand: Telaire (Amphenol Advanced Sensors)
  • Series: Ventostat 8000
  • Sensor Technology: Patented Absorption Infrared Gas (NDIR)
  • Calibration System: Patented ABC Logic self-calibration (T8100, T8300)
  • Calibration Guarantee: Lifetime for T8100/T8300 (ABC Logic enabled), 2 years for T8200
  • Output Options: Dual analog outputs (0-10V & 4-20mA), BACnet (MS/TP, RS485)
  • Enclosure: Modern design, customizable branding available, two-piece design for easy replacement
  • Certifications: CE, RoHS compliant
  • Filter: Gas permeable, water-resistant CO2 diffusion filter
  • Field Serviceability: Field-replaceable RH sensor tip module
  • Optional Accessories: Splash Resistant Enclosure (T1505), Outside Air Enclosure (T1552), Aspiration Box for Duct Mounting (T1508)

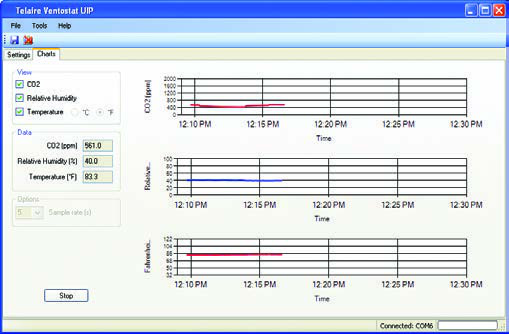

  • Software: Ventostat UIP Software for advanced configuration

Technical Specifications

Specification Details
CO2 Measurement Range 0 to 2000 ppm (Standard)
0 to 5000 ppm (T8100/T8200/T8300 -5P models)
0 to 10,000 ppm (T8200 - 10P models)
0 to 20,000 ppm (T8200 - 20P models)
CO2 Accuracy 30 ppm or 3% of reading, whichever is higher
Temperature Sensor Type Passive Thermistor (NTC 10 K W) or Active Temperature
Temperature Accuracy 1C (Thermistor, 15-35C)
0.8C @ 22C (Active)
Temperature Range 32F to 122F (0C to 50C)
RH Sensing Element Capacitive polymer sensor
RH Range 0% to 99% RH (non-condensing)
RH Accuracy (25C) 2.5% RH (20-80% RH)
3.5% RH (<20% and >80% RH)
Power Supply Requirements 18-30 VAC RMS, 50/60 Hz, or 10.8 to 42 VDC, polarity protected
Power Consumption Typical 0.7 W at 24V AC RMS
Signal Update Every 5 seconds
CO2 Warm-up Time < 2 minutes (operational), 10 minutes (maximum accuracy)
Operating Conditions 32F to 122F (0C to 50C), 0 to 95% RH (non-condensing)
Storage Conditions -40F to 158F (-40C to 70C)
Warranty 24 months on mechanical defects
BACnet Baud Rates 38400 or 9600
Models T8100 (Single Channel, ABC Logic)
T8200 (Dual Channel, 3-point calibration)
T8300 (Single Channel, Pitot tube kit for duct)
Dimensions (Smaller Enclosure) 81.4 mm x 86.4 mm

2411041546_Amphenol-T8100-H-GN_C17542094.pdf
