Specifications
Description :
95-MicroPGA Image Sensors, Camera RoHS
Mfr. Part # :
CMV2000-3E5C1PP
Model Number :
CMV2000-3E5C1PP

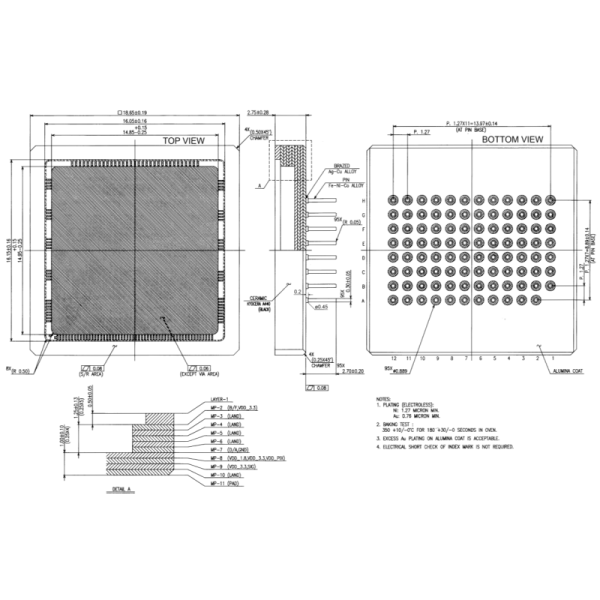

Package :
95-MicroPGA
Description

Product Overview

The CMV2000 is a high-sensitivity, pipelined global shutter CMOS image sensor designed for machine vision applications. It features 2048 x 1088 pixels (2/3 optical inch) and allows exposure during read-out with CDS operation. The sensor offers sixteen 10 or 12-bit digital LVDS outputs, an integrated programmable gain amplifier, and offset regulation. With a maximum channel speed of 480 Mbps, it achieves 340 fps at full resolution, with higher frame rates possible through row-windowing or row-subsampling modes. Programmable via SPI, it includes an on-board sequencer for internal timing and supports external triggering. Extended dynamic range is achievable with multiple integrated high dynamic range modes.

Product Attributes

  • Brand: ams OSRAM
  • Product Type: Global Shutter CMOS Image Sensor
  • Model: CMV2000
  • Key Features: Global shutter, high speed, selectable ADC resolution, high dynamic range modes

Technical Specifications

ModelTypePackageGlass TypeDelivery QuantityVersionPLLAdditional Gain StepsHorizontal Line EffectBlack Sun EffectElectrical Black ColumnsRegister SettingsIntegration in Single Shot ModePRNU PatternColumn Patterns
CMV2000-2E12M1PPMonoPGAPlain glass60 pcs/trayVersion2StandardNoNoNoNoStandardStandardStandardStandard
CMV2000-2E5C1PPColorPGAPlain glass60 pcs/trayVersion2StandardNoNoNoNoStandardStandardStandardStandard
CMV2000-2E5M1LPMonoLGAPlain glass60 pcs/trayVersion2StandardNoNoNoNoStandardStandardStandardStandard
CMV2000-2E5C1LPColorLGAPlain glass60 pcs/trayVersion2StandardNoNoNoNoStandardStandardStandardStandard
CMV2000-2E5M1PPMonoPGAPlain glass60 pcs/trayVersion2StandardNoNoNoNoStandardStandardStandardStandard
CMV2000-3E12M1CAMonoLCCAR coating60 pcs/trayVersion3ImprovedYesYes (dummy lines)Yes (reduction of brightness)Yes (SPI register)Different from V2Improved (reduce artifact)Visible from ~150DN (correction possible)Solvable by increasing gain (linear part)
CMV2000-3E12M1PPMonoPGAPlain glass60 pcs/trayVersion3ImprovedYesYes (dummy lines)Yes (reduction of brightness)Yes (SPI register)Different from V2Improved (reduce artifact)Visible from ~150DN (correction possible)Solvable by increasing gain (linear part)
CMV2000-3E5C1CAColorLCCAR coated60 pcs/trayVersion3ImprovedYesYes (dummy lines)Yes (reduction of brightness)Yes (SPI register)Different from V2Improved (reduce artifact)Visible from ~150DN (correction possible)Solvable by increasing gain (linear part)
CMV2000-3E5C1PPColorPGAPlain glass60 pcs/trayVersion3ImprovedYesYes (dummy lines)Yes (reduction of brightness)Yes (SPI register)Different from V2Improved (reduce artifact)Visible from ~150DN (correction possible)Solvable by increasing gain (linear part)
CMV2000-3E5M1CAMonoLCCAR coated60 pcs/trayVersion3ImprovedYesYes (dummy lines)Yes (reduction of brightness)Yes (SPI register)Different from V2Improved (reduce artifact)Visible from ~150DN (correction possible)Solvable by increasing gain (linear part)
CMV2000-3E5M1PAMonoPGAAR coated60 pcs/trayVersion3ImprovedYesYes (dummy lines)Yes (reduction of brightness)Yes (SPI register)Different from V2Improved (reduce artifact)Visible from ~150DN (correction possible)Solvable by increasing gain (linear part)
CMV2000-3E5M1PPMonoPGAPlain glass60 pcs/trayVersion3ImprovedYesYes (dummy lines)Yes (reduction of brightness)Yes (SPI register)Different from V2Improved (reduce artifact)Visible from ~150DN (correction possible)Solvable by increasing gain (linear part)
ParameterMinTypMaxUnitConditions
VDD20 (Digital supply LVDS, ADC) - Version 22.052.12.15V
VDD20 (Digital supply LVDS, ADC) - Version 32.02.02.15V
VDD33 (Analog Supply ADC, PGA)3.23.33.4V
VDDPIX (Analog Pixel Supply)2.93.03.1V
Vres_h (Analog Pixel Reset Supply)3.23.33.4V
IDD20 Supply current Readout - Version 2370mA
IDD20 Supply current Readout - Version 3300mA
IDD33 Supply current Readout - Version 265mA
IDD33 Supply current Readout - Version 380mA
IDDPIX Supply current Readout - Version 220mA
IDDPIX Supply current Readout - Version 320mA
Ires_h Supply current Readout15mA
P20 Power consumption - Version 2780mW
P20 Power consumption - Version 3640mW
P33 Power consumption - Version 2220mW
P33 Power consumption - Version 3270mW
PPIX Power consumption60mW
Pres_h Power consumption50mW
VIH (High level input voltage)2.0VDD33VCMOS/TTL
VIL (Low level input voltage)GND0.8VCMOS/TTL
VOH (High level output voltage)2.4VVDD=3.3 V, IOH=-2 mA
VOL (Low level output voltage)0.4VVDD=3.3 V, IOL=2 mA
Ci (Input load)2pF
Co (Output load)2pF
fCLK_IN (CLK_IN frequency)548MHz
LVDS_CLK_N/P Frequency50480MHz
SPI_CLK Frequency48MHz
VOD (Differential output voltage)247350454mVSteady State, RL = 100 , TIA/EIA-644A
VID (Differential input voltage)100350600mVSteady state, TIA/EIA-644A
VIC (Receiver input range)0.02.4VSteady state, TIA/EIA-644A
